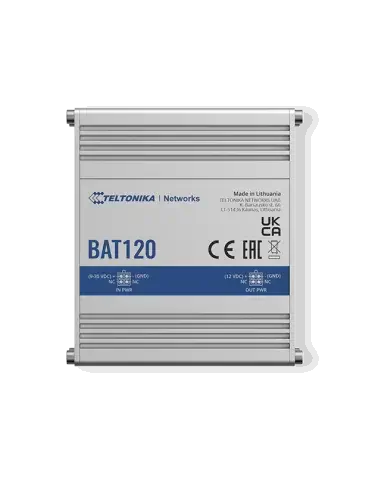

Teltonika Uninterrupted Power Supply - Din Rail/Surface Mount

The Teltonika BAT120 is an innovative uninterrupted power supply designed for reliable power delivery to IoT devices, ensuring seamless connectivity during power fluctuations or outages. Its robust construction and advanced safety features make it ideal for various applications.

Features

• Dual 4-Pin DC Ports: Equipped with two ports for efficient power input and output.
• Wide Input Voltage Range: Accepts input voltages from 9V to 30V for versatile applications.
• Stable Output: Provides a consistent output of 12VDC when operating from the battery.
• Extended Operation Time: Capable of powering compatible devices for up to 6 hours.
• Safety Protections: Features reverse polarity and overvoltage protection on input, along with 3A overcurrent protection on output.
• Rugged Design: Constructed with durable aluminum housing for industrial applications.
• Mounting Versatility: Can be mounted on DIN rails or flat surfaces for flexible installation.

Specifications

• Input Voltage Range: 9 – 30 VDC
• Output Voltage (Battery Mode): 12 VDC
• Maximum Output Power: 22 W / 1.8 A
• Battery Capacity: 2600 mAh (17 Wh)
• Dimensions: 100 x 30 x 85 mm
• Weight: 0.315 kg
• Operating Temperature: 0 °C ~ 45 °C
• Regulatory Compliance: CE/RED, UKCA, EAC
• Compatible Devices: RUT2xx, RUT95x, RUT3xx, RUTXxx, TRB14x, TRB2xx, TSW110, TCR100
