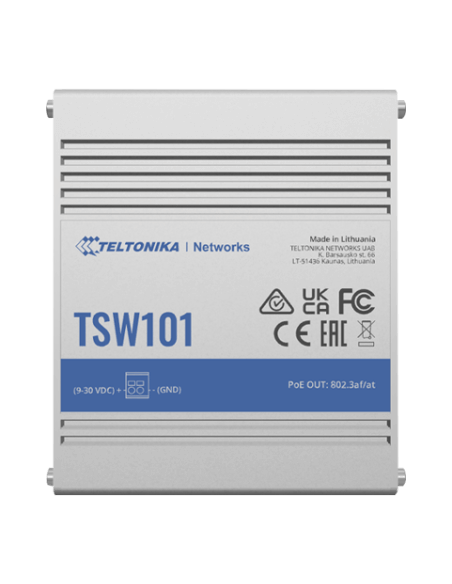

Teltonika Industrial 5-Port Gigabit Switch - Unmanaged, Auto MDI/MDIX

The Teltonika TSW101 is an automotive-dedicated unmanaged switch designed to provide reliable and high-performance connectivity in various applications. With five Gigabit Ethernet ports, four of which support PoE+ standards, this switch is ideal for powering and connecting multiple devices simultaneously, making it an essential component for automotive and industrial environments.

Features

• Five Gigabit Ethernet Ports: Supports 10/100/1000 Mbps for high-speed data transfer.
• PoE+ Support: Four ports with IEEE802.3af and IEEE802.3at standards, providing up to 30 watts per port.
• Wide Power Supply Range: Operates on 9-30 VDC, making it versatile for various installations.
• Compact Design: Ideal for automotive applications with limited space.
• High Bandwidth: Non-blocking bandwidth of 10 Gbps ensures optimal performance.
• Industrial Grade Reliability: Built to withstand harsh environments with an operating temperature range of -40 °C to 75 °C.

Specifications

• Input Voltage Range: 9 – 30 VDC
• PoE Max Power per Port: 30 W
• Total PoE Power Budget: 60 W
• Maximum Ethernet Cable Length: 100 m
• MAC Address Table Size: 2K entries
• Jumbo Frame Support: 9216 bytes
• Power Consumption: Idle: 0.64 W / Max: 2.31 W / PoE Max: 62.3 W
• Dimensions (W x H x D): 115 x 32 x 95 mm
• Weight: 384 g
• Ingress Protection Rating: IP30
