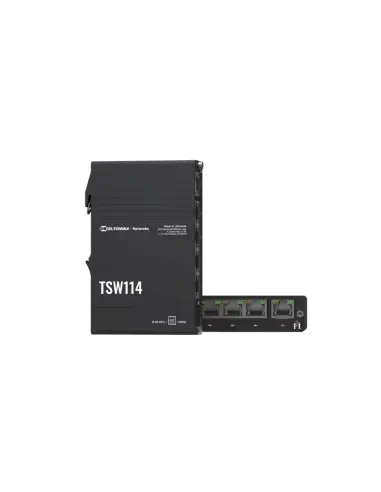

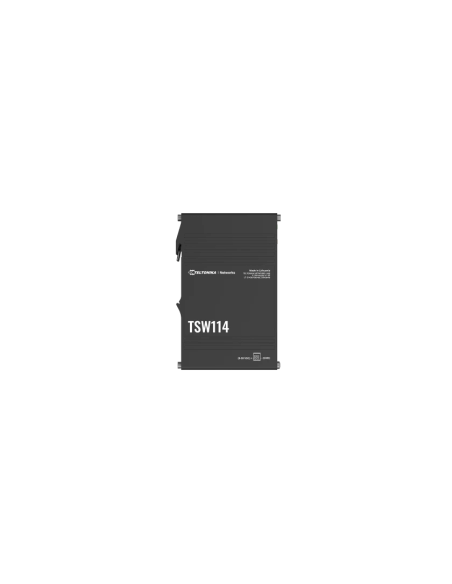

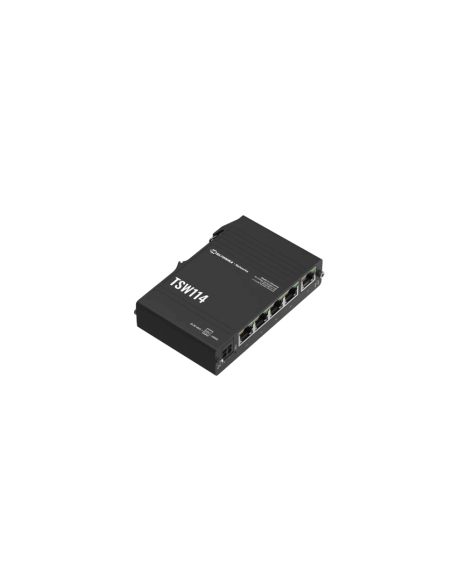

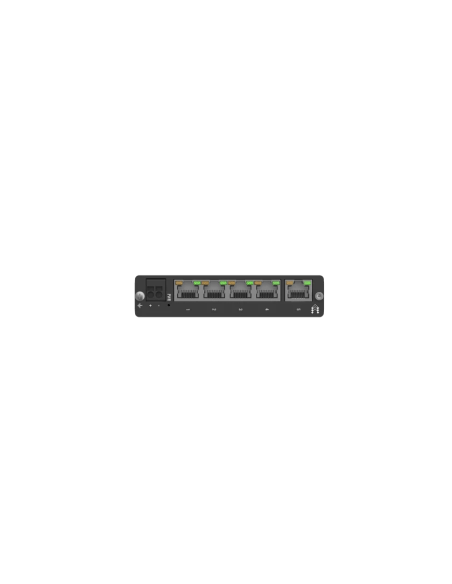

The Teltonika Industrial 5-Port Gigabit Switch is an unmanaged Ethernet switch designed for industrial environments, featuring five Gigabit Ethernet ports and robust construction. With support for auto MDI/MDIX crossover, this switch ensures seamless connectivity for various devices, making it ideal for IoT applications in diverse sectors.

Features

• Unmanaged Switch: Simple plug-and-play installation with no configuration required.
• 5 Gigabit Ethernet Ports: Provides high-speed connectivity for multiple devices.
• Auto MDI/MDIX Crossover: Automatically adjusts for straight-through or crossover cables.
• DIN Rail or Wall Mountable: Flexible installation options for various environments.
• Wide Input Voltage Range: Operates on 9-30 VDC passive power supply.
• Industrial Grade Reliability: Built to withstand harsh conditions with a wide operating temperature range.

Specifications

• Bandwidth: 10 Gbps non-blocking
• MAC Address Table Size: 2K entries
• Jumbo Frame Support: Up to 9216 bytes
• Power Consumption: Idle: 0.3 W / Max: 2.3 W
• Operating Temperature: -40 °C to 75 °C
• Ingress Protection Rating: IP30
• Casing Material: Anodized aluminum housing
• Dimensions (W x H x D): 113.1 x 27.4 x 80.5 mm
• Weight: 0.174 kg
