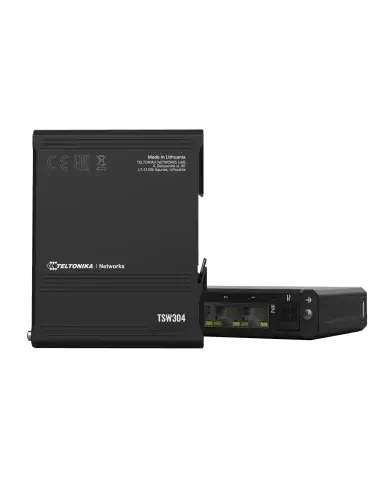

Teltonika 4-Port Industrial Gigabit Switch - Unmanaged, Auto MDI/MDIX

The Teltonika TSW304 is an industrial-grade unmanaged switch designed for high-performance networking. With four Gigabit Ethernet ports and a robust DIN rail mount, it provides reliable connectivity for various applications in industrial environments. Its compact size and shock-resistant casing ensure durability, making it ideal for demanding conditions.

Features

• Four Gigabit Ethernet Ports: Supports 10/100/1000 Mbps for high-speed data transfer.
• Auto MDI/MDIX Crossover: Simplifies network setup by automatically configuring the connection type.
• Compact and Durable Design: Shock-resistant casing suitable for industrial applications.
• Integrated DIN Rail Mount: Facilitates easy installation in control cabinets and other environments.
• Wide Power Supply Range: Accepts 7-57 VDC and 9-40 VAC, providing flexibility in power options.

Specifications

• Dimensions: W102 x H25 x D81.5 mm
• Weight: 210 g
• Port Configuration: 4 x RJ45 Ethernet ports
• Standards Supported: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3az
• Bandwidth: Non-blocking 8 Gbps
• MAC Address Table Size: 2K entries
• Jumbo Frame Support: Up to 9216 bytes
• Power Consumption: Idle 0.26 W / Max 1.44 W
• Operating Temperature: -40 °C to 75 °C
• Ingress Protection Rating: IP30
• Casing Material: Aluminium housing
