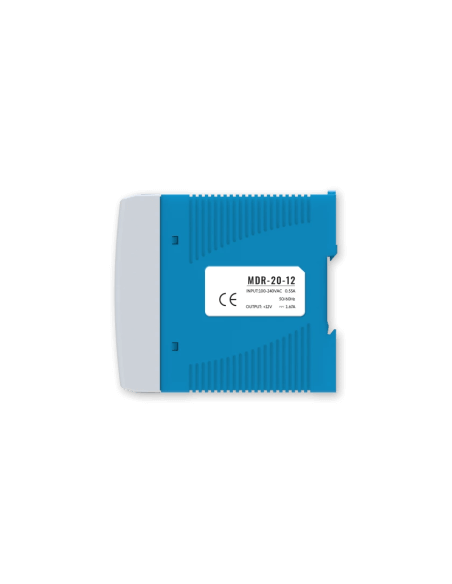

The Teltonika 20W DIN Rail Power Supply is designed for reliable performance in various IoT applications. With an input voltage range of 100-240V AC and a stable 12V DC output, this power supply ensures efficient operation for your devices. Its compact design allows for easy installation on standard 35mm DIN rails, making it suitable for industrial and commercial environments.

Features

• Wide Input Voltage Range: Accepts input voltages from 85 to 264 VAC, ensuring compatibility with various power supply systems.
• Stable DC Output: Provides a consistent 12V DC output with a maximum current of 1.67A, ideal for powering IoT devices.
• Compact Design: Specifically designed for mounting on 35mm DIN rails, saving space in control cabinets.
• High Efficiency: Operates at an efficiency of up to 80%, minimizing energy loss and reducing operational costs.
• Overload and Over Voltage Protection: Built-in protections ensure safe operation and longevity of connected devices.

Specifications

• Single Output Power: 20 W
• Input Voltage Range: 85 - 264 VAC, 47 - 63 Hz
• DC Output Voltage: 12 V
• DC Output Current: 0 - 1.67 A
• Output Ripple and Noise: 120 mVp-p
• Line Regulation: ±1 %
• Load Regulation: ±1 %
• Efficiency: 80 %
• Adjustable Range for DC Voltage: ±1 %
• Working Temperature: -10 °C to +50 °C
• Dimensions: 22.5 x 90 x 100 mm
• Weight: 190 g
