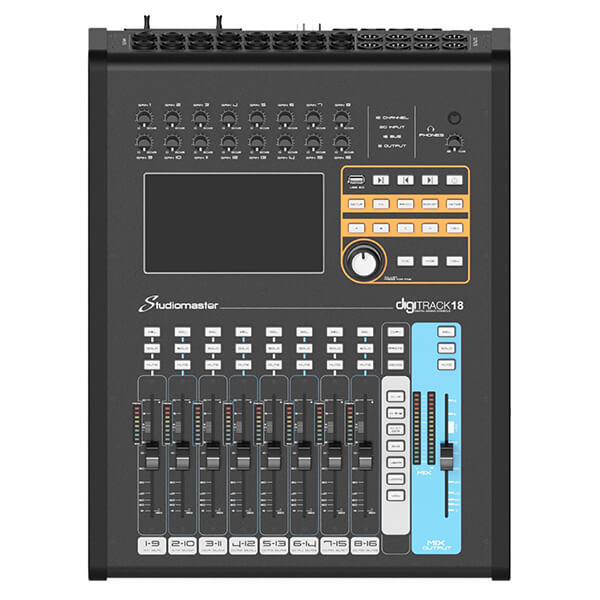

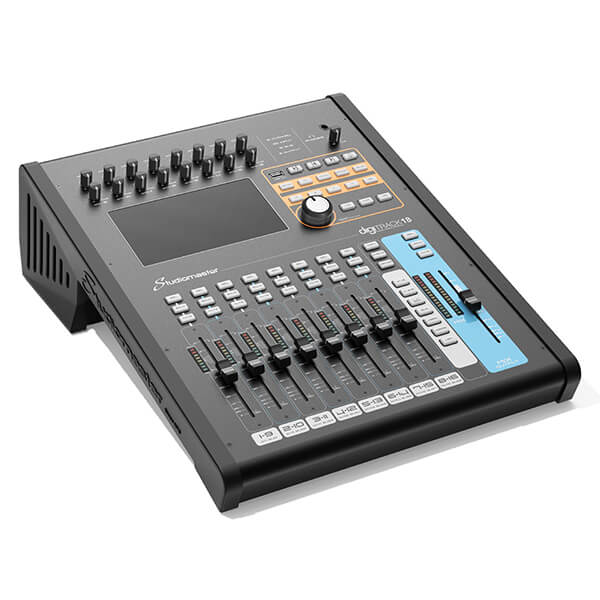

STUDIOMASTER DIGITRACK18: 18-Channel Digital Console with Touchscreen

The STUDIOMASTER DIGITRACK18 is an ultra-compact digital mixer that merges the functionality of a hardware mixer with a sleek, intuitive 7-inch touchscreen interface. Designed for fast and simple operation, it features 100mm motorized faders for instant scene recall and can be remotely controlled via an iPad for convenient tuning anywhere in the venue.

Features

• Intuitive Touchscreen: 7-inch high-resolution touchscreen that displays all functions, I/O options, and effects clearly.

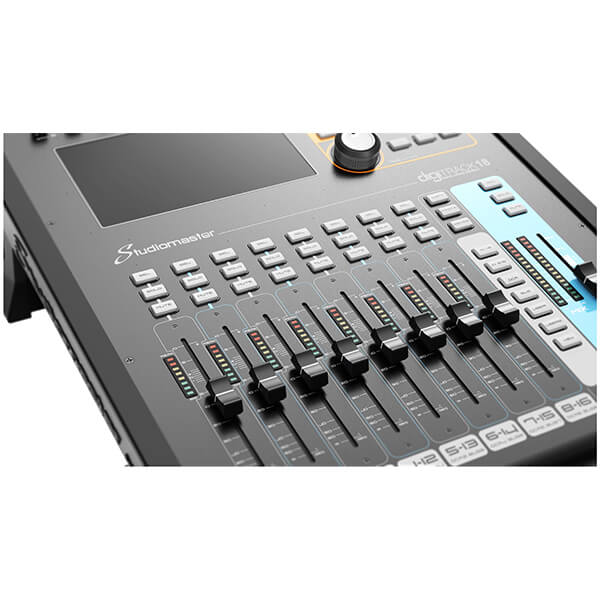

• Motorized Faders: Full 100mm motorized faders for instant recall of scene setups.
• Remote Control: Can be controlled remotely with an iPad via Wi-Fi, allowing for flexible adjustments.

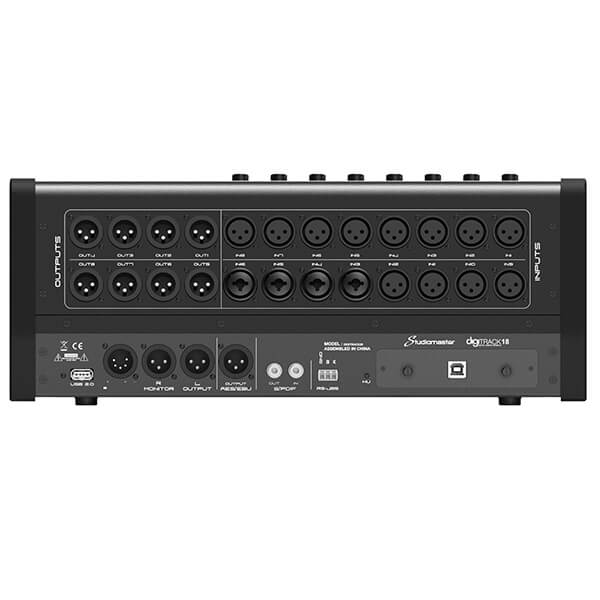

• Versatile Input Options: 16 MIC/LINE inputs with 4 combo XLR/JACK inputs for various audio sources.
• Multi-Track Interface: Optional high-speed USB interface for multi-track audio input and output.
• Customizable Output Groups: Features 6 DCA internal groups and 2 MUTE groups with custom layers.
• Rich Effects: Includes 8 stereo effects with reverb, delay, modulation, and a 31-segment graphic equalizer.
• Smart Outputs: 8 smart outputs that can be assigned to any bus for flexible routing.

Specifications

• Input Channels: 18 (16 MIC/LINE inputs with 4 combo XLR/JACK inputs)
• Internal Buses: 16
• Motorized Faders: 9
• USB Interface: Multi-track high-speed with 16 audio track input and output
• Graphic Equalization: 31-segment
• Touchscreen Resolution: 1024x600
