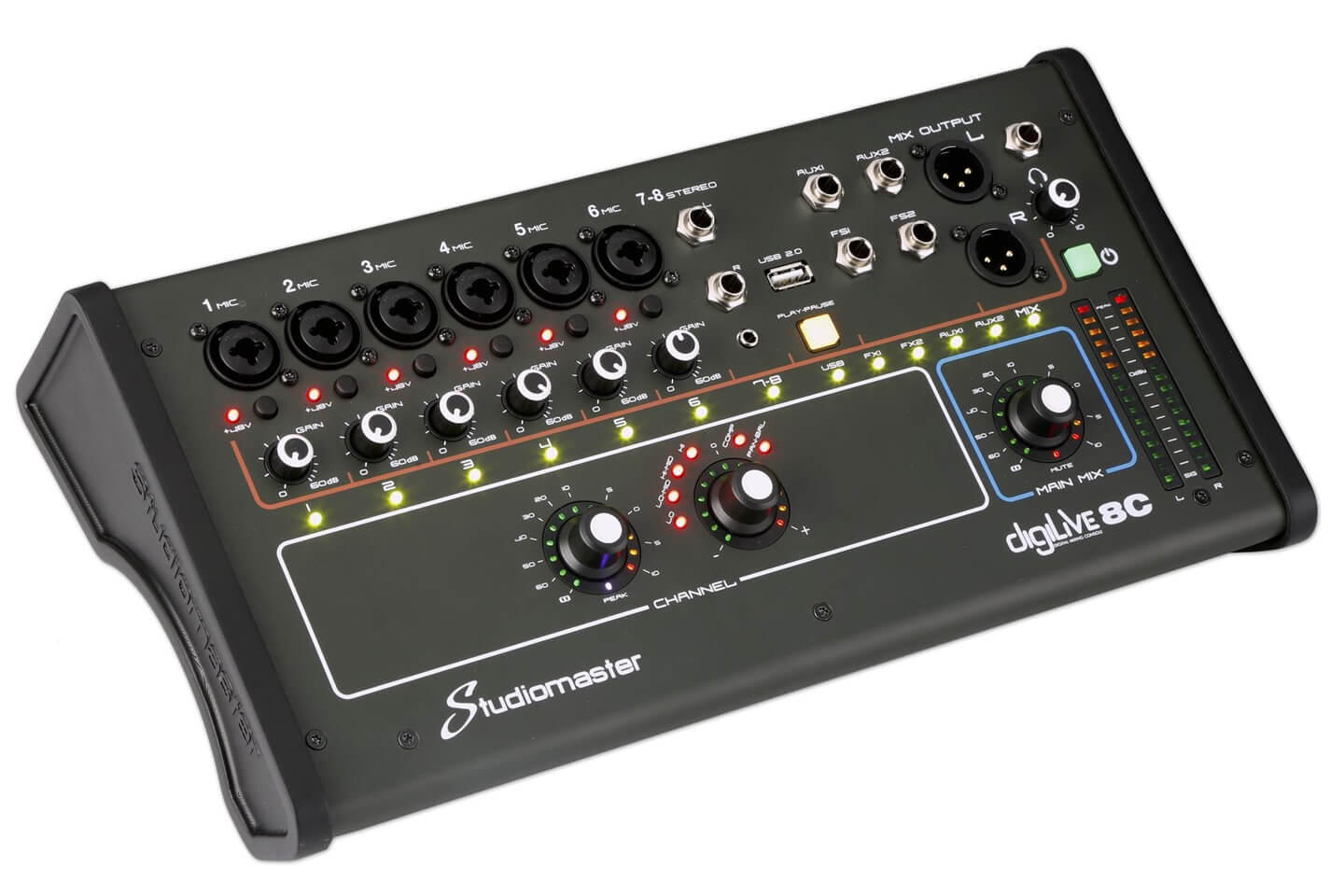

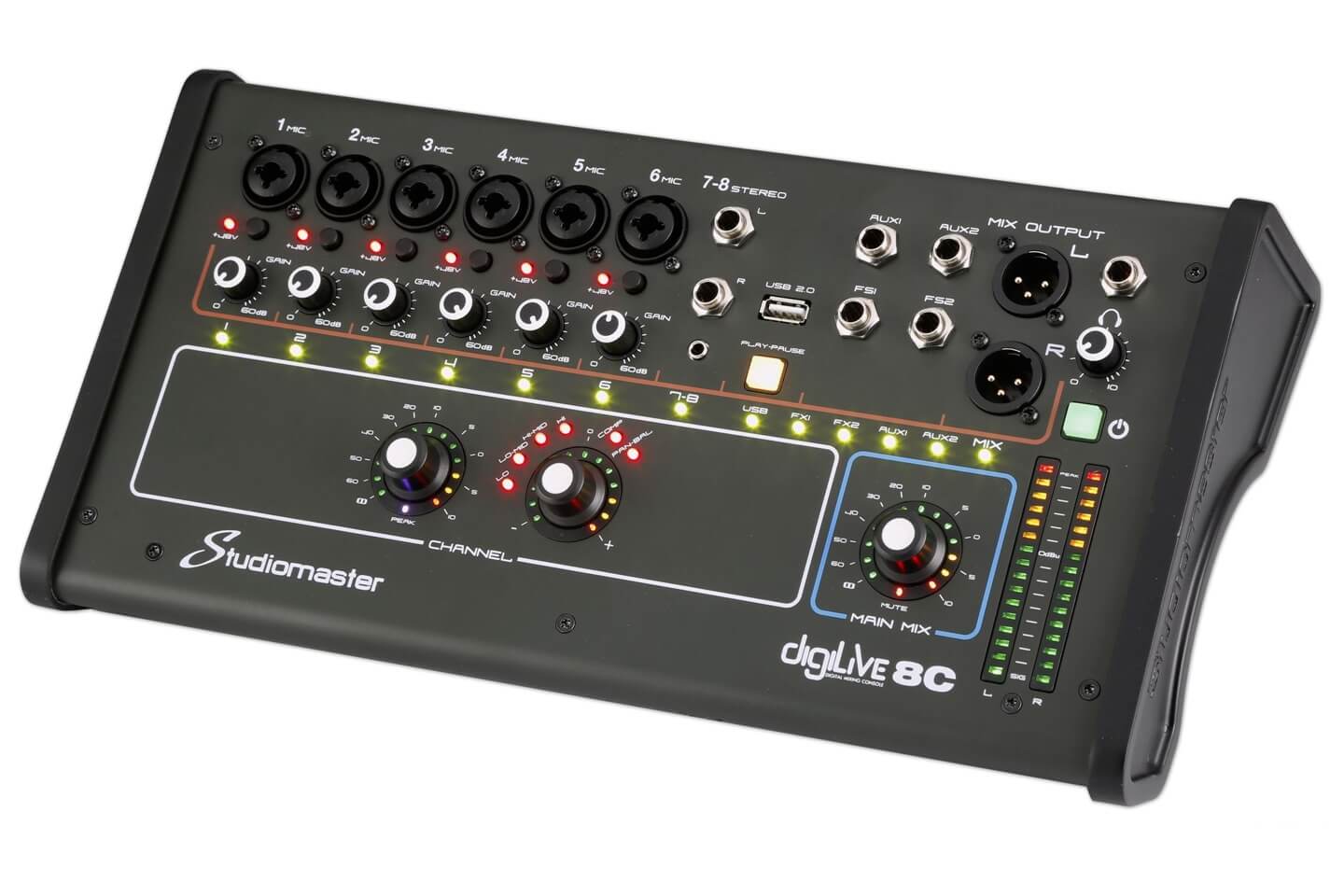

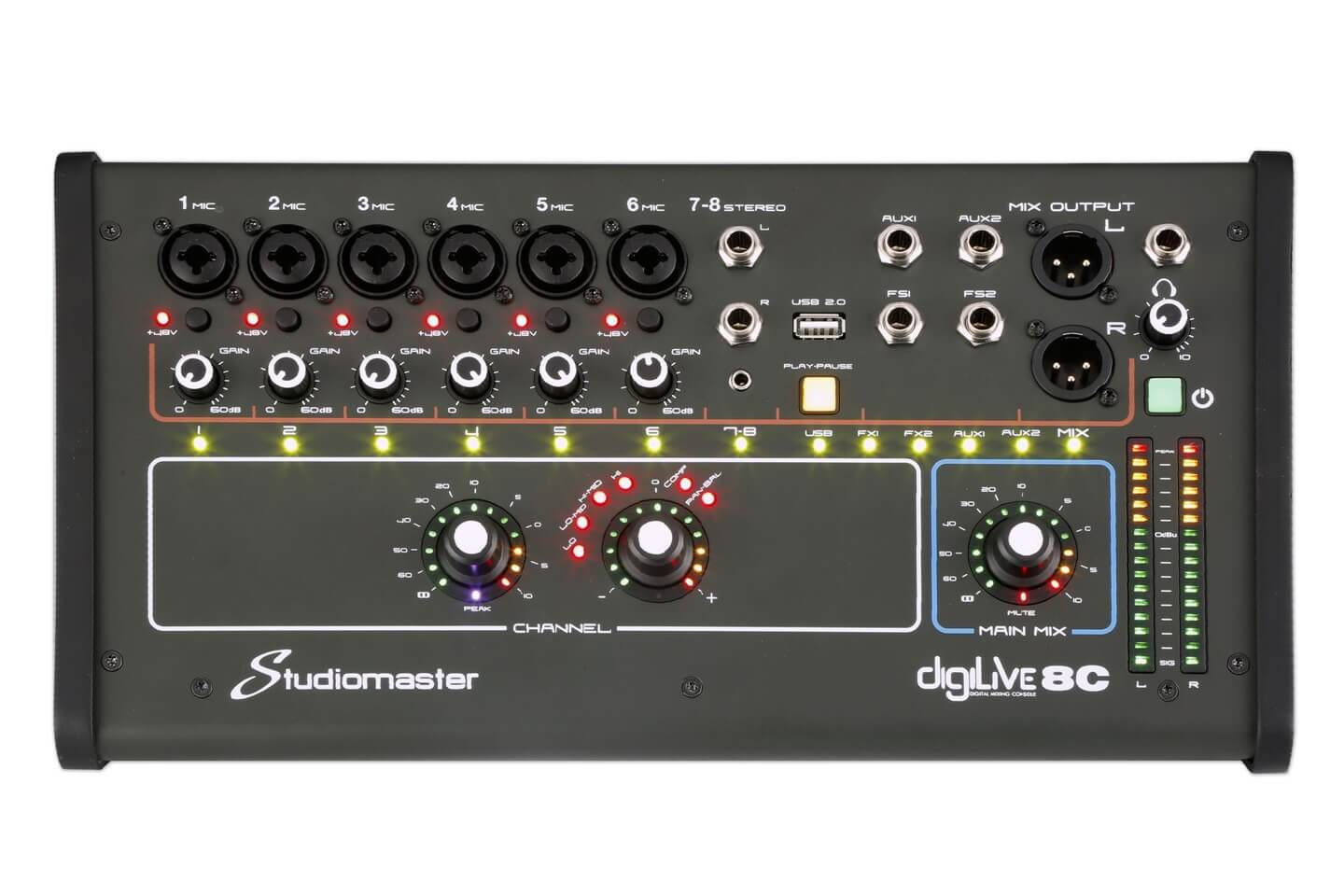

STUDIOMASTER DIGILIVE8C: Compact 8 Channel Digital Mixing Console.

The Studiomaster DigiLive8C is an advanced 8-channel digital mixing console designed for musicians and audio professionals. It features a user-friendly interface with three operation modes (Full, Basic, Lock) and is equipped with high-quality audio processing capabilities, making it perfect for live performances, studio recordings, and more. With its compact design, it offers significant professional features in a lightweight package.

Features

• 8 Inputs: 6 MIC/LINE COMBO XLR/JACK and 1 stereo line input for versatile connectivity.
• Remote Control: Access and control your mix from any device with Wi-Fi or LAN, including phones, tablets, and laptops.
• High-Quality DSP: Features a 40-bit float point SHARC processor for advanced audio processing, including parametric EQ and digital effects.
• Integrated Media Player: Allows simultaneous playback and recording of multiple formats such as MP3 and WAV.
• Four Programmable Effects: Includes two delays and two reverbs for creative sound design.
• User-Friendly Interface: Simple controls with rotary encoders and intuitive layout for quick adjustments.
• Compact and Lightweight: Weighs only 8 kg, making it easy to transport and set up.

Specifications

• Inputs: 8 analogue inputs
• MIC Input: 6 MIC/LINE COMBO XLR/JACK
• LINE Input: 1 STEREO Jacks/3.5mm mini Jack
• Master Output: 2 Left/Right balanced XLR
• Internal Busses: 4 stereo FX / 2 mono AUX / stereo PFL / Main Mix
• Stereo Monitor: 2 TRS Jack outputs
• Headphone Output: 1 TRS Jack output
• Sample Frequency: 48 KHz
• AD/DA Conversion: 48KHz, 24-bit
• DSP: 40-bit float point, SHARC processor
• USB Interface: 2 for playback/recording, scene storage, and system updates
• Network Connectivity: Yes via Wi-Fi external module or RJ45 LAN connection
• Power Supply: 90-240V ~ 50/60Hz, 12VDC output
• Weight: 8 kg
