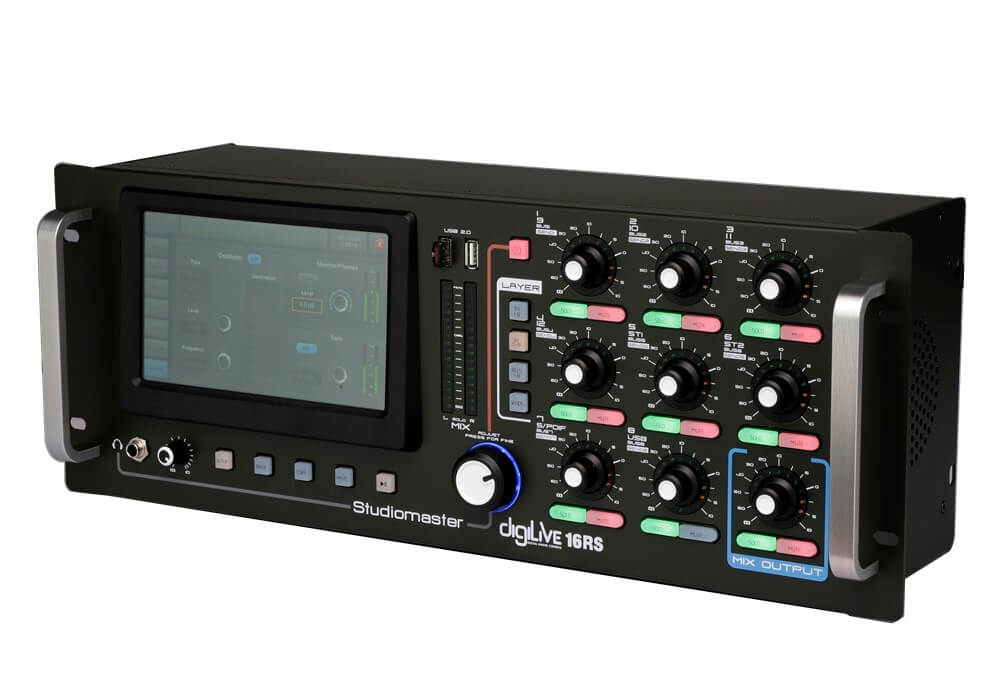

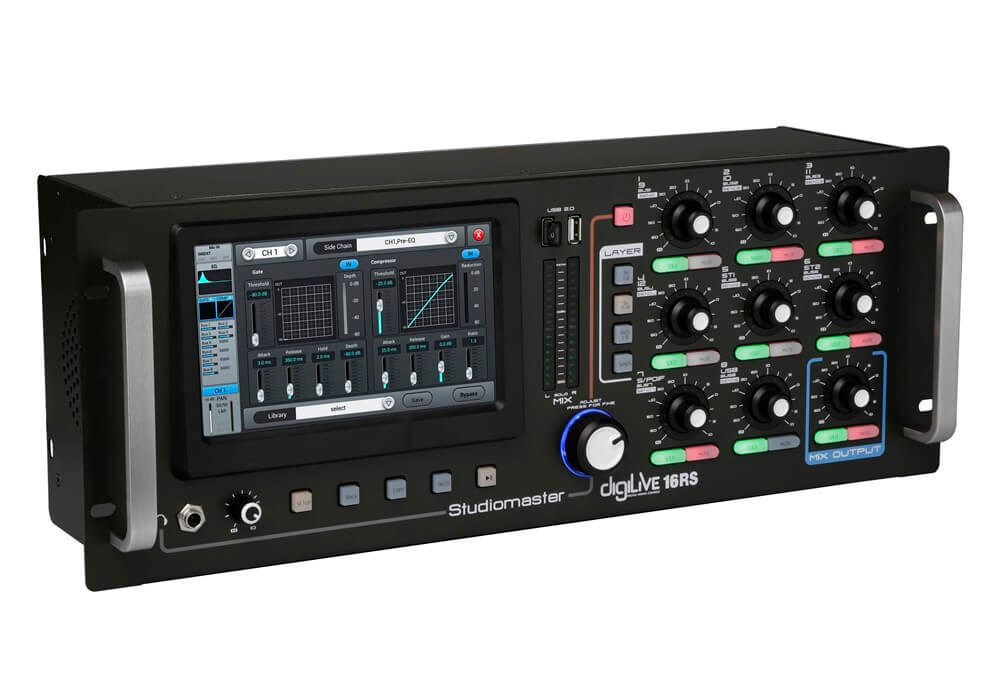

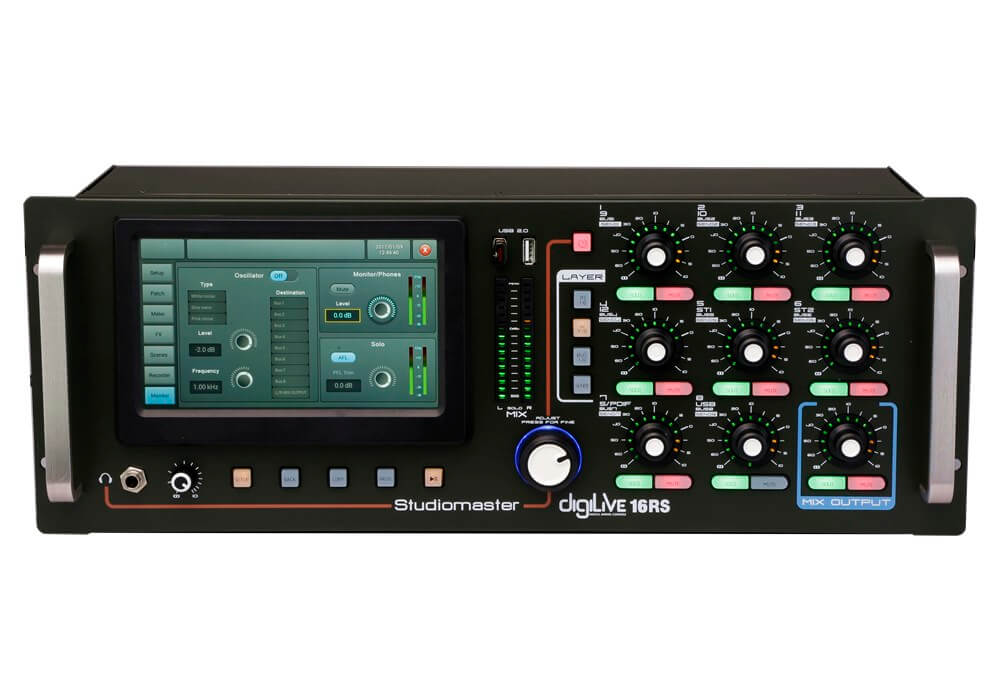

Studiomaster DigiLive 16RS: 16-Channel Rack-Mountable Mixer

The Studiomaster DigiLive 16RS is a state-of-the-art 16-channel digital mixing console designed for professional audio applications. With 12 digital gain microphone inputs, 2 stereo inputs, and 8 configurable smart outputs, this compact console provides exceptional versatility for live sound mixing and installations. Control your sound effortlessly through a high-definition 7-inch touchscreen or remotely via an iOS tablet using the Digilive Blackbox app. Experience advanced digital signal processing with 40-bit float point SHARC technology, ensuring superior audio quality and effects management.

Features

• 16 Input Channels: Includes 12 digital gain mic input channels (8x XLR / 4x Combo XLR) and 2 stereo inputs.
• 16 Internal Busses: Provides flexible routing options for complex audio setups.
• High-Resolution Touchscreen: 7-inch high-definition display for intuitive control and navigation.
• Remote Control Capability: Operate the console via a Wi-Fi connection using the iOS Digilive Blackbox app.
• Advanced DSP: Features a SHARC processor with 40-bit float point processing for high-quality audio effects.

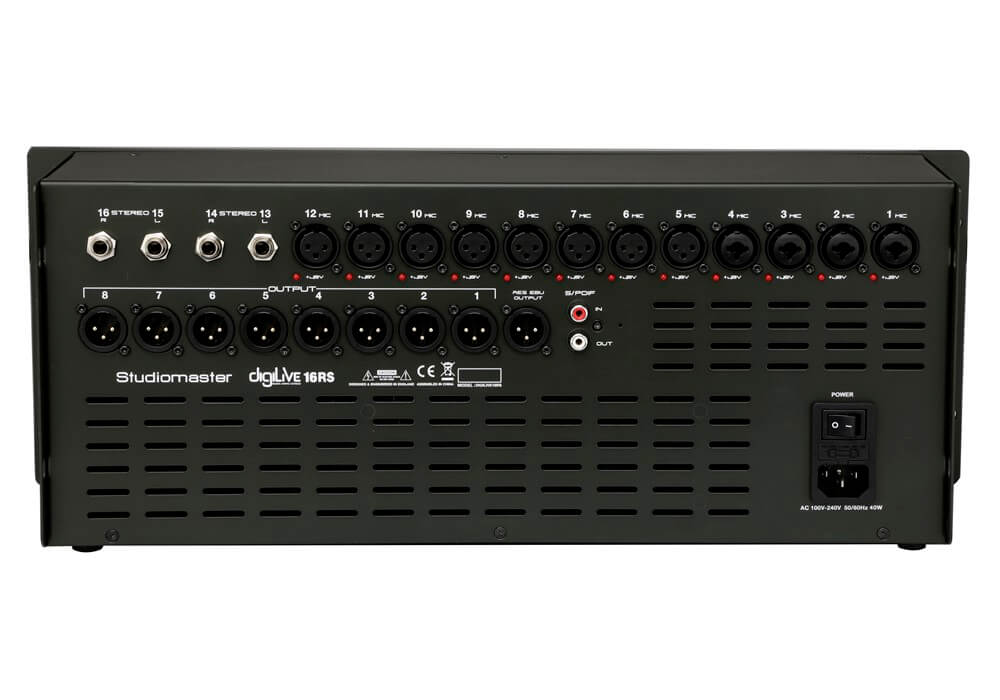

• Multiple Outputs: Includes 2 balanced master outputs (Left/Right XLR), 6 assignable smart outputs, AES/EBU output, and S/PDIF input/output.
• USB Interface: Dual USB ports for playback/recording, scene/setting storage, and system updates.

Specifications

• Mic Inputs: 12 (8x XLR / 4x Combo XLR)
• Stereo Inputs: 2
• Master Output: 2 (Left/Right balanced XLR)
• Smart Outputs: 6 (assignable balanced XLR)
• Internal Busses: 16
• Stage Monitor Output: 1 TRS Jack output
• Headphone Output: 1 TRS Jack output
• Screen: 7" high-definition touch screen
• Operating System: Android
• Network: Yes, via included WiFi module
• Sample Frequency: 48 KHz
• AD/DA Conversion: 192 KHz, 24-bit
• DSP: 40-bit float point, SHARC processor
• Effects: Up to 8 assignable effect modules
• AES/EBU: Output XLR
• S/PDIF: Input / Output (RCA Phono)
• USB Interface: 2 for playback/recording, scene/setting storage, and system updates
• Power Supply: 90-240V ~ 50/60Hz IEC power supply
