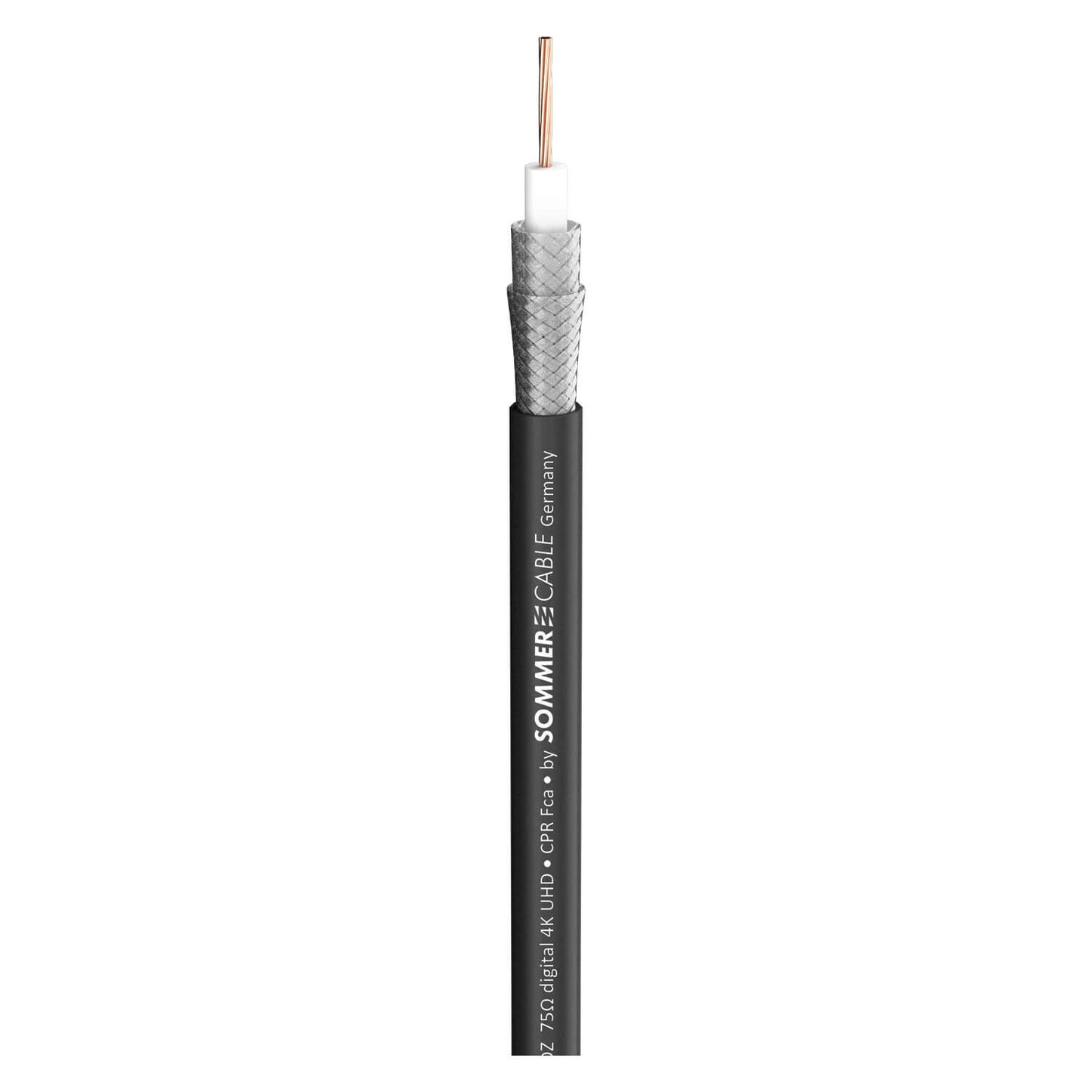

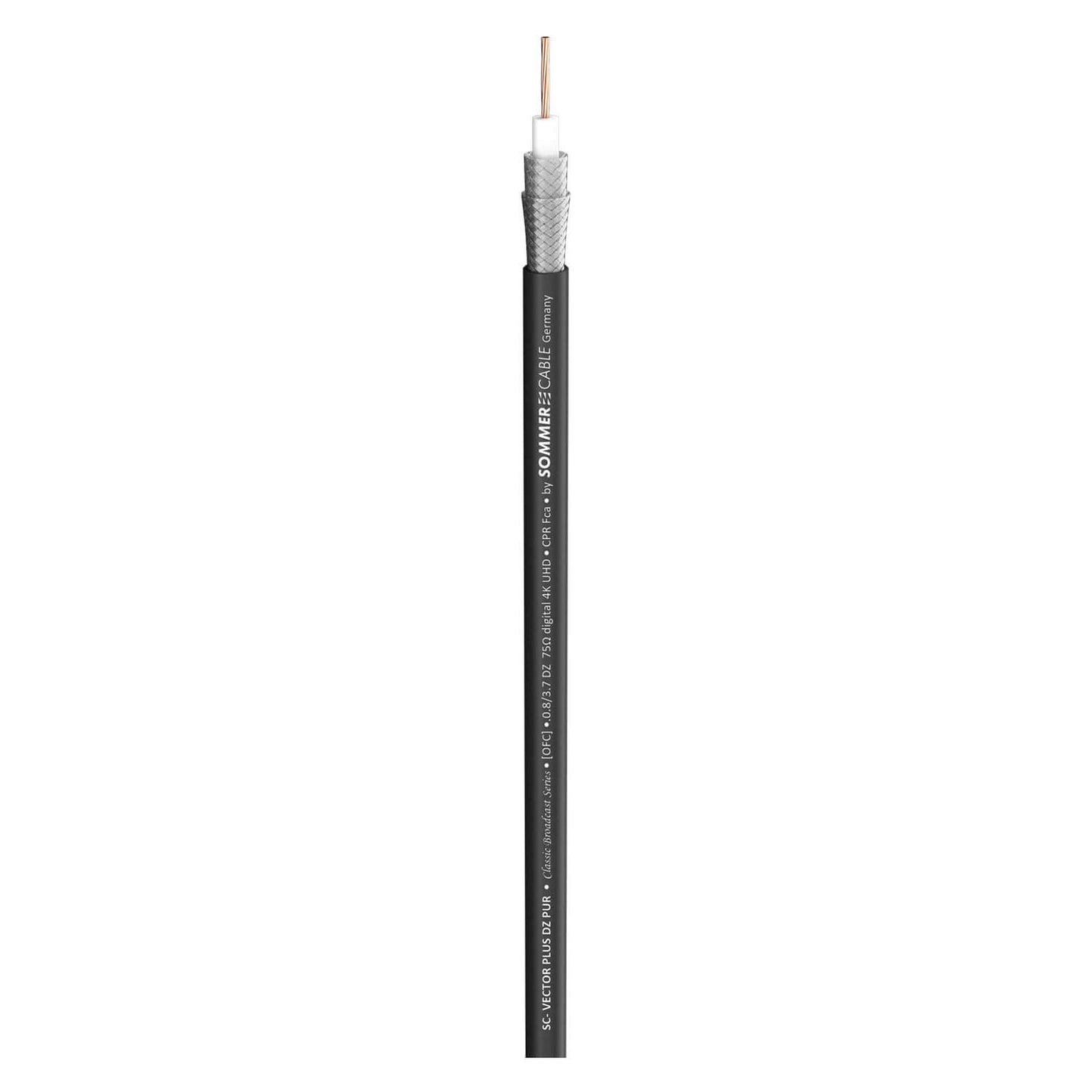

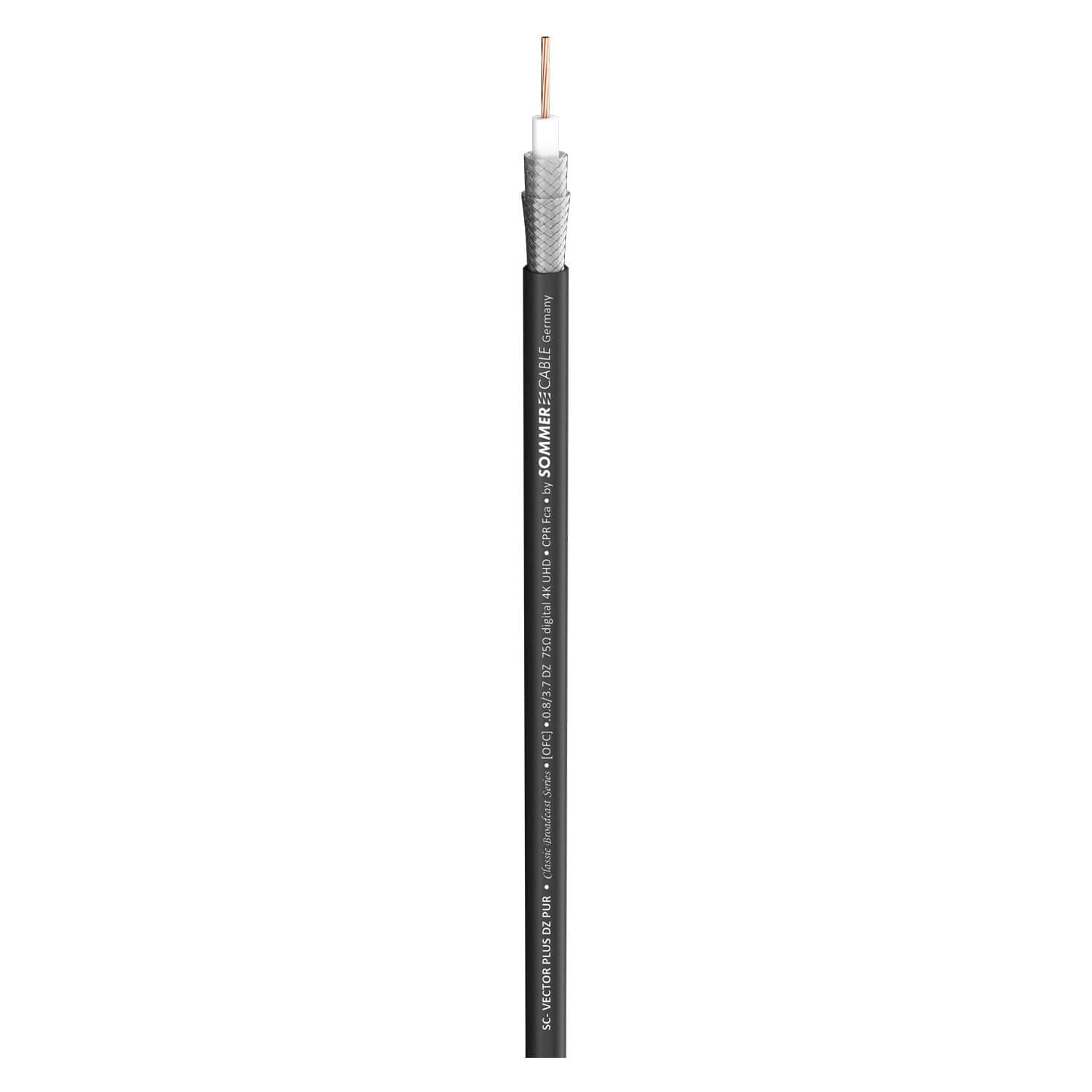

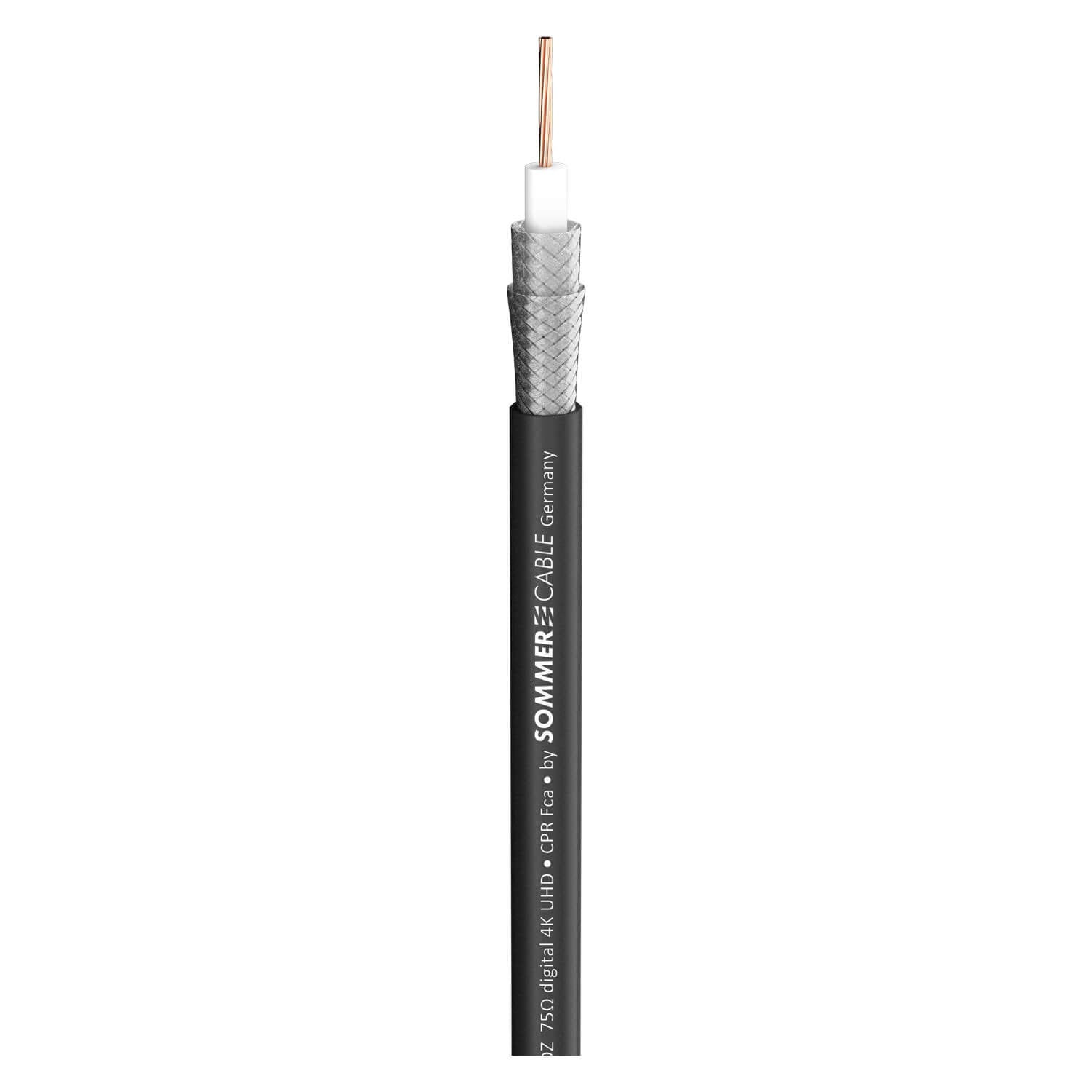

Sommer Cable SC-VECTOR PLUS UHD Video Cable with Neutrik Connector

The Sommer Cable SC-VECTOR PLUS 0.8L/3.7DZ is a high-quality UHD video cable designed for professional broadcast and media applications. This cable features a robust construction with double shielding, ensuring excellent signal integrity and durability in various environments. With a flexible PUR jacket and a compact diameter of 6.1 mm, it is perfect for on-the-go use, fitting easily on compact cable drums and in tight spaces. Ideal for HD-SDI, 3G-SDI, and UHD video transmission, it is compatible with standard BNC connectors, including the included Neutrik NBNC75BJP9X.

Features

• High Durability: Constructed with a notch-resistant PUR jacket that is cold-flexible and UV-resistant.
• Double Shielding: Features dense, double copper braiding for superior signal protection.
• Compact Design: Outer diameter of just 6.1 mm allows for easy handling and storage.
• Versatile Application: Suitable for both indoor and outdoor use, including mobile UHD-SDI transmissions.
• High Transmission Quality: Supports digital UHD-SDI video transmission with low attenuation.

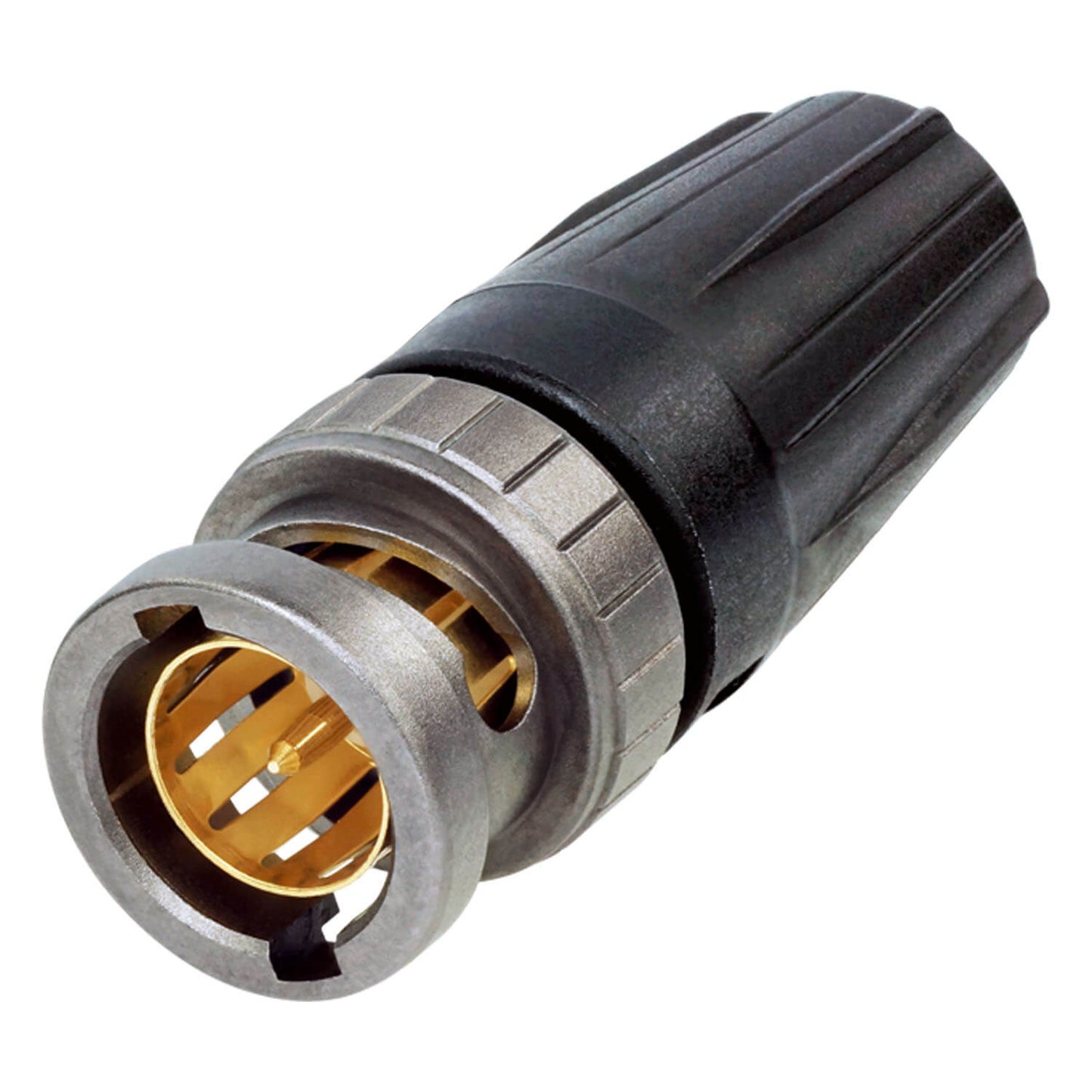

• Includes Neutrik Connectors: Comes with high-quality Neutrik NBNC75BJP9X connectors for reliable connections.

Specifications

• Article Number: 601-0181
• Inner Conductor: 1 x 0.80 mm OFC copper
• Jacket Material: PUR
• Jacket Diameter: 6.10 mm
• Impedance: 75 Ω
• Max Transmission Length (3G-SDI): 94 m
• Max Transmission Length (6G-SDI): 63 m
• Max Transmission Length (12G-SDI): 41 m
• Operating Temperature: -40 °C to 80 °C
• Shielding: Double copper braiding (100% shielding factor)
• Capacity at 1m: 52 pF
• Damping at 100 MHz (100m): 9.9 dB
• Damping at 200 MHz (100m): 13.7 dB
• Damping at 1000 MHz (100m): 33.7 dB
