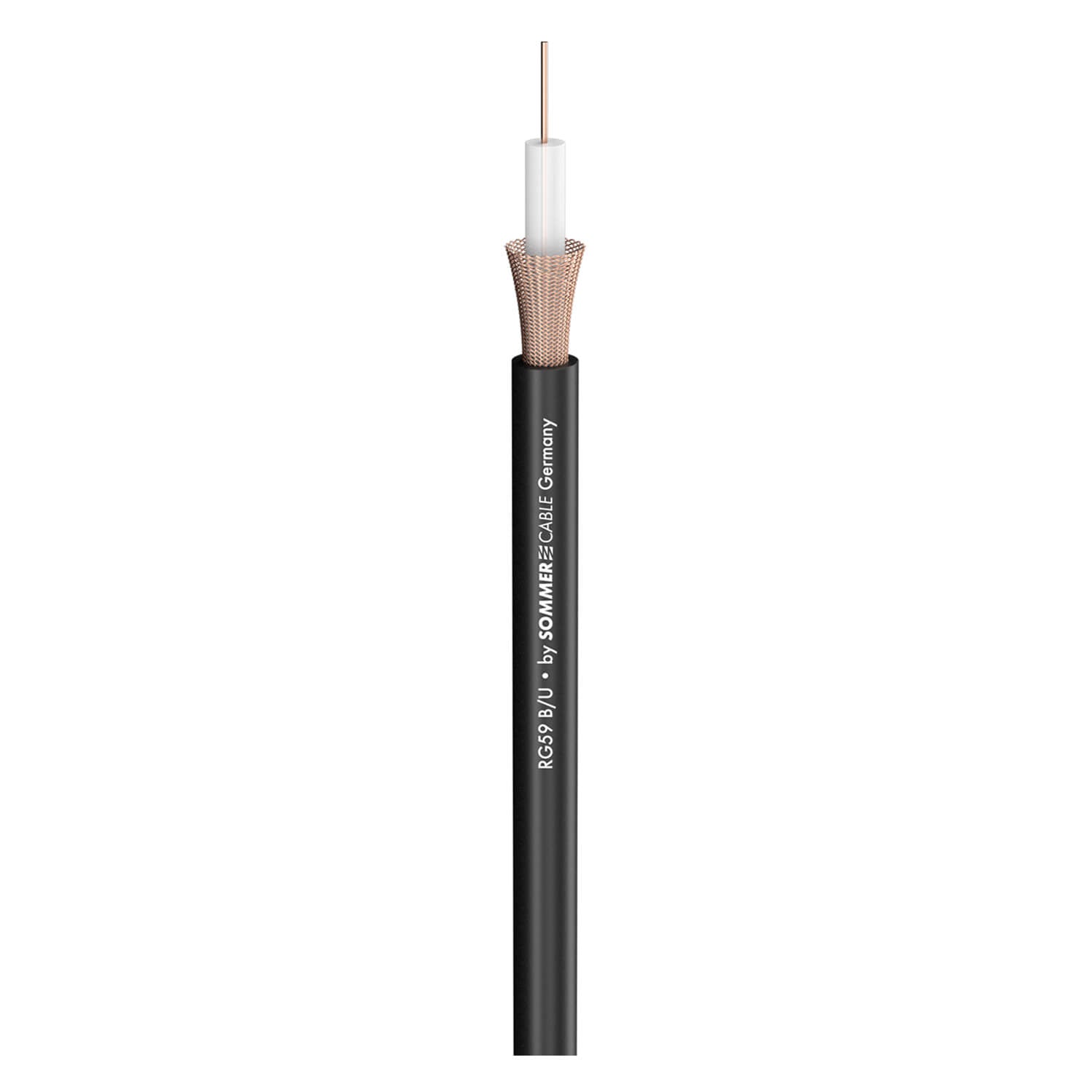

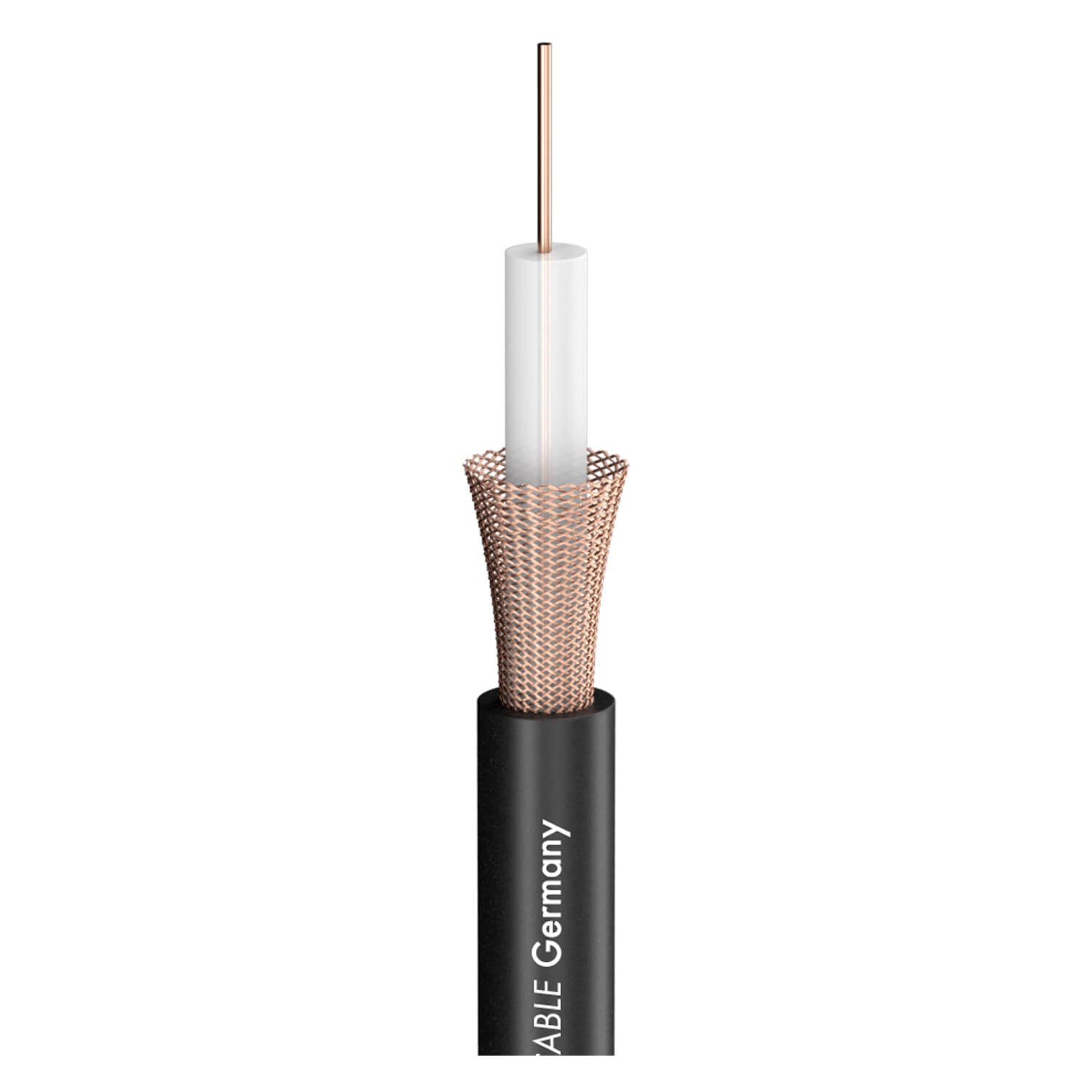

SOMMER CABLE RG/U Coax SC-Classic MKII, 1x0.

The SOMMER CABLE RG/U Coax SC-Classic Series MKII is engineered for exceptional performance in high-frequency technology and data transmission. With its durable PVC jacket and precise electrical properties, this coaxial cable is perfect for various applications including audio, video, and antenna connections. Designed to withstand the test of time, it features aging resistance and is compatible with all standardized connectors.

Features

• Aging Resistance: The cable is designed for extremely long life due to its age-resistant jacket.
• High Performance: Consistent and precise electrical values ensure reliable data transmission.
• Versatile Applications: Suitable for data transmission, HF technology, antenna construction, and Hi-Fi connections.
• Easy Handling: The cable is easy to work with and install, making it ideal for both professionals and hobbyists.

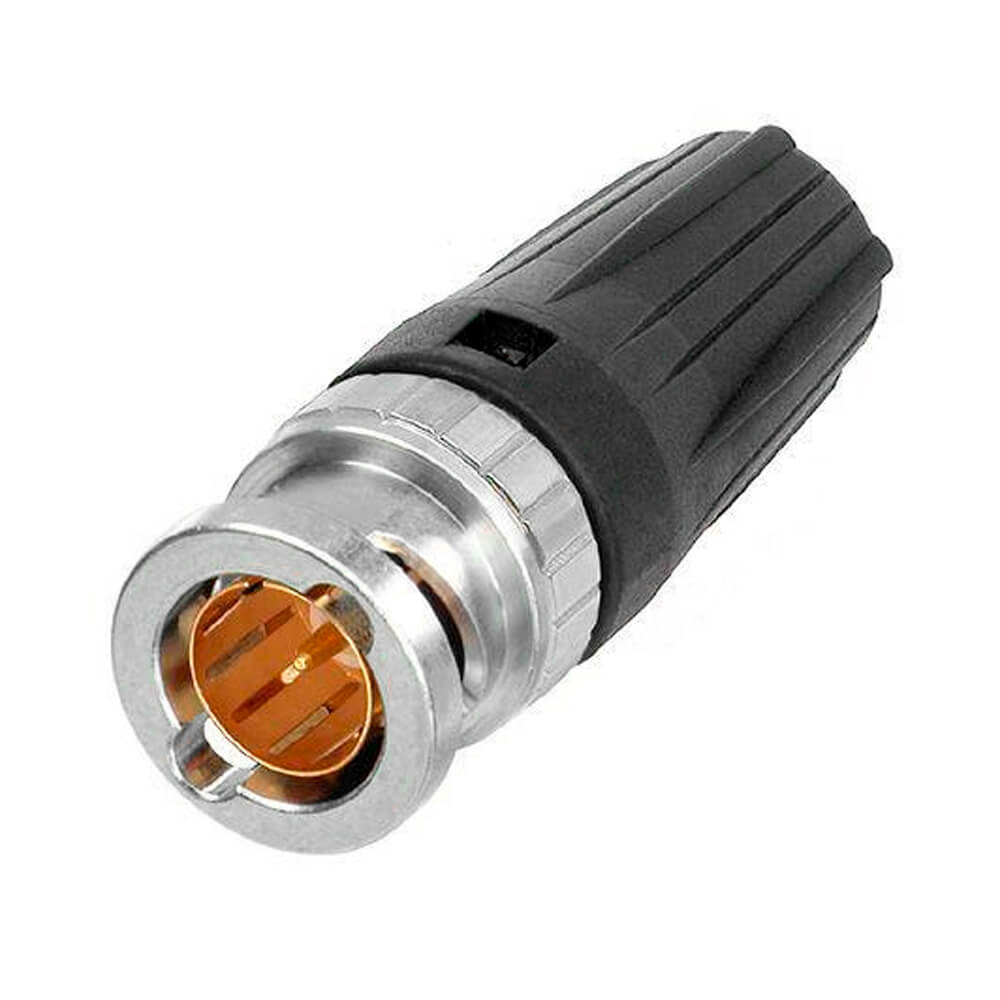

• Compatible Connectors: Designed to work with all standardized connectors for seamless integration.

Specifications

• Article Number: 600-0451
• Name: SC-Classic Series MKII
• EAN: 4049371005760
• Impedance: 75 Ω
• Jacket Material: PVC
• Jacket Diameter: 6.20 mm
• Inner Conductor Diameter: 0.60 mm
• Weight per 1m: 47 g
• Temperature Range: -25 °C to 70 °C
• Shielding: Copper braiding with 92% shielding factor
• Velocity Factor: 0.66
• Damping at 100 MHz: 11.1 dB (100m at 20°C)
