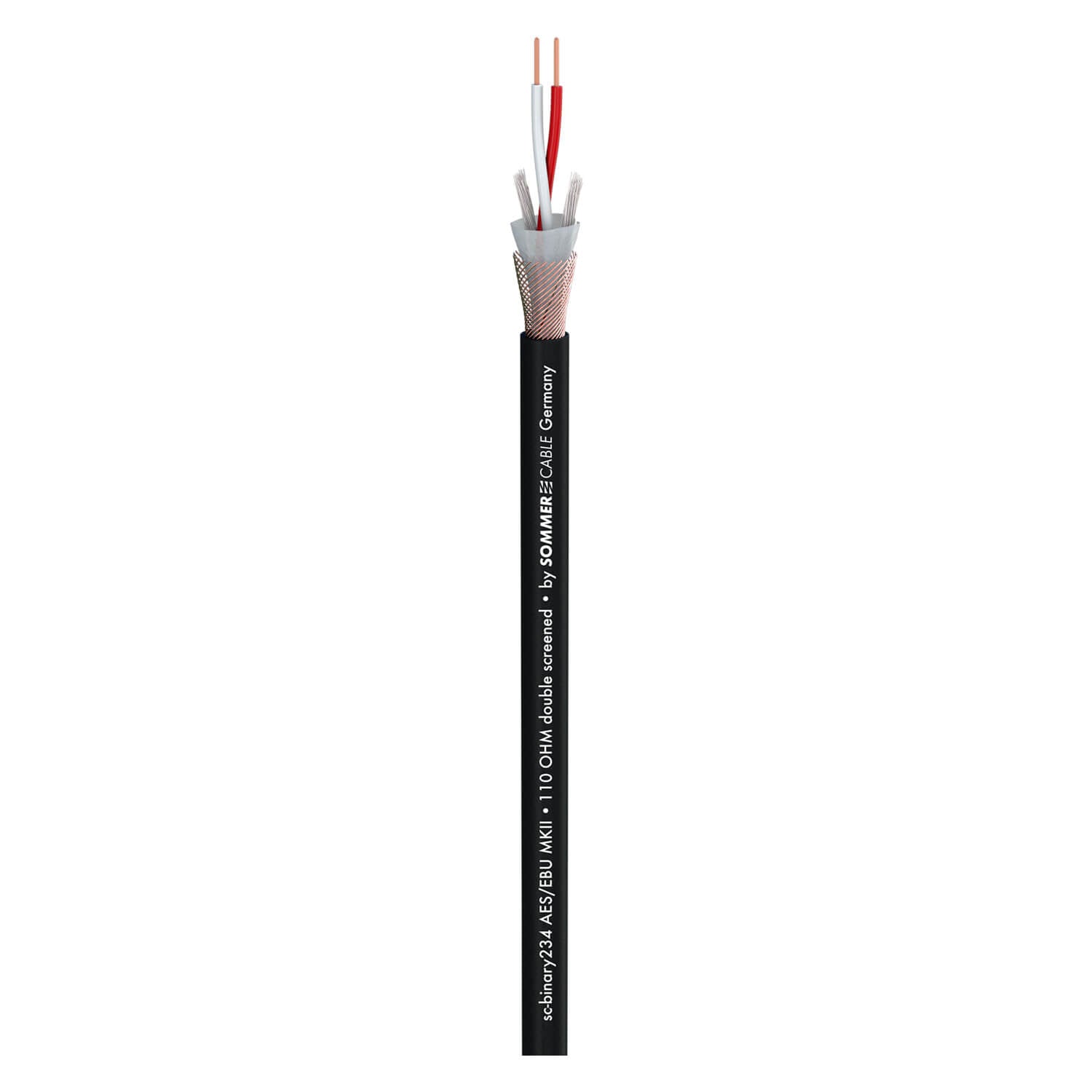

SOMMER CABLE DMX BINARY 234 AES/EBU MKII - 100

The SOMMER CABLE DMX BINARY 234 AES/EBU MKII is a high-quality cable designed for the reliable transmission of digital signals in the 110-Ohm AES/EBU and DMX data format. With robust construction and exceptional shielding, this cable ensures error-free data transfer over distances of up to 1000 meters, making it ideal for both indoor and outdoor installations. Its flexibility and durability make it perfect for use in lighting systems, digital mixing consoles, and more.

Features

• AES/EBU and DMX Conformant: Complies with industry standards for digital signal transmission.
• Highly Flexible: Designed for easy handling and installation in various environments.

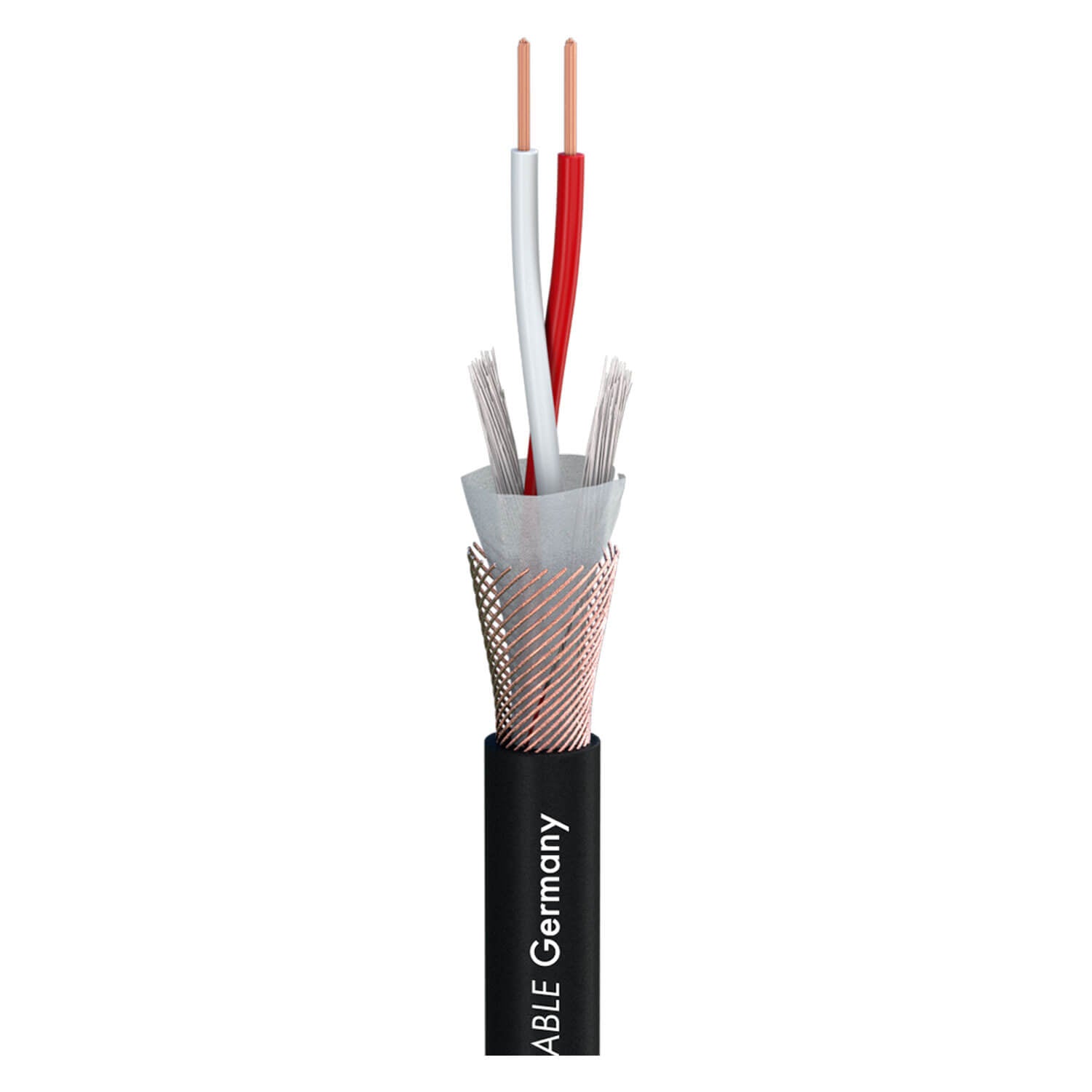

• Excellent Shielding: Features a helical copper mesh screen and aluminum-vaporized fleece for 100% coverage against electromagnetic interference.
• Rugged Construction: Built with a tough PVC jacket that withstands bending and rough wear, suitable for use in sharp-edged lighting trusses.
• OFC Copper Conductors: Utilizes oxygen-free copper for superior conductivity and signal integrity.

Specifications

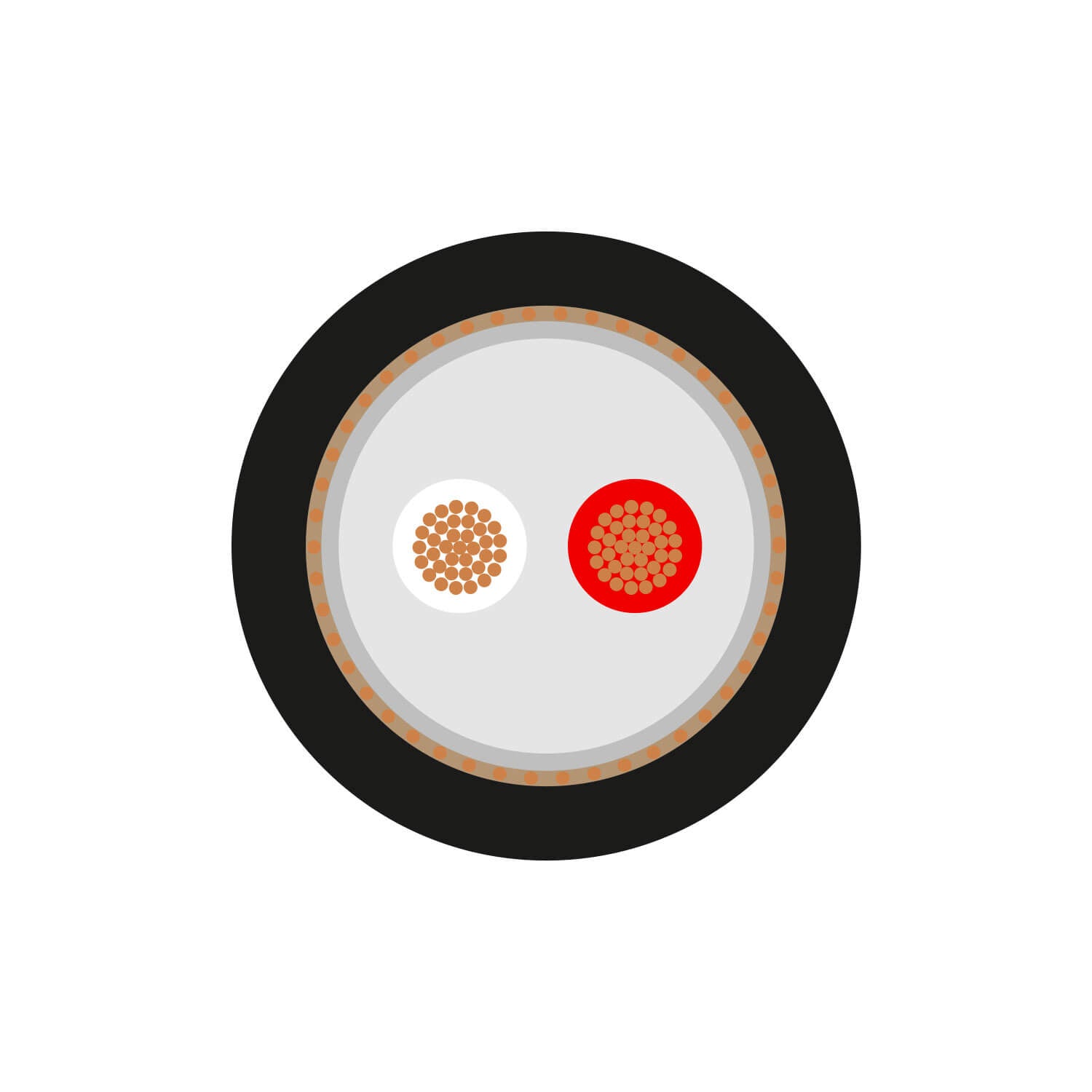

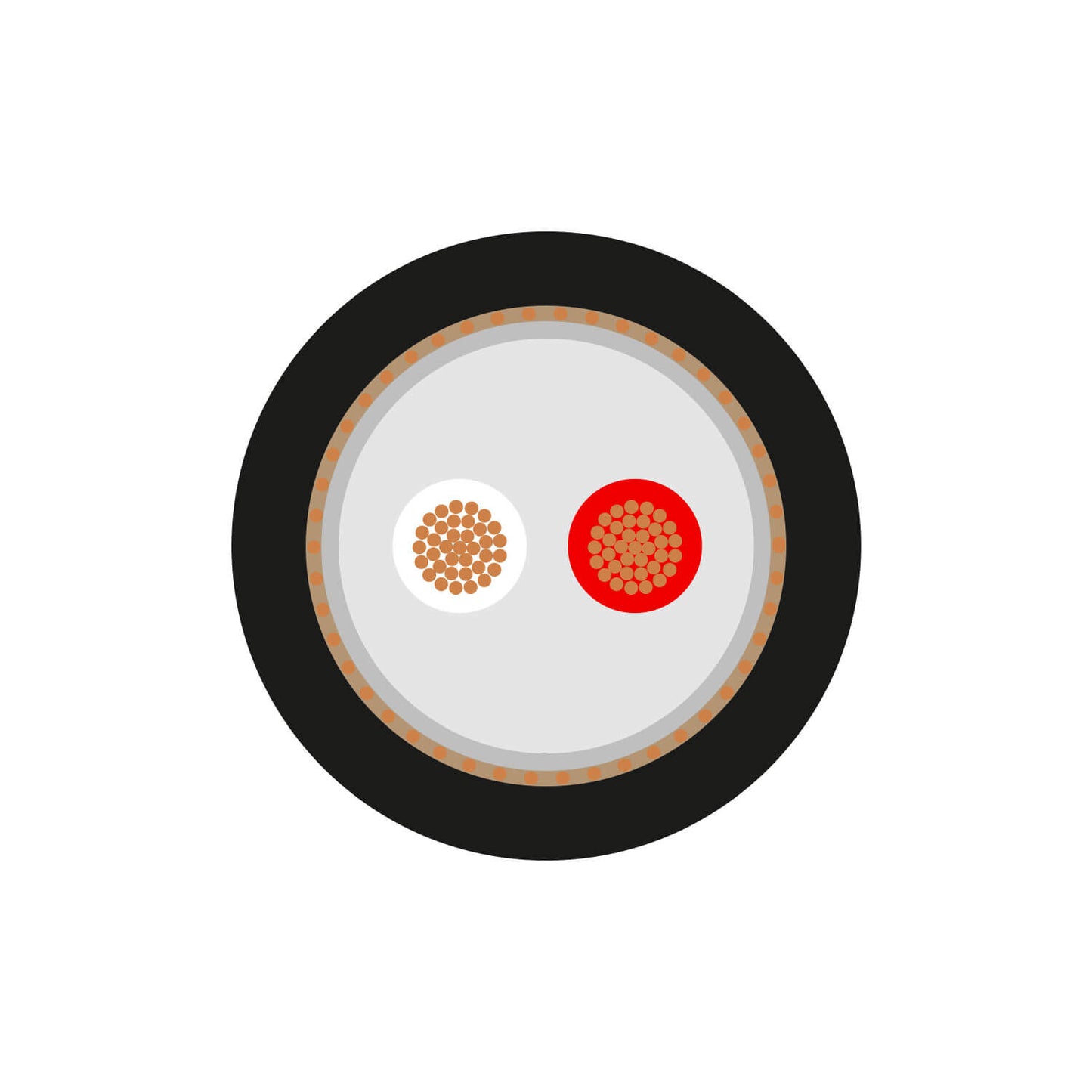

• Cable Type: 2 x 0.34 mm²
• Jacket Material: PVC
• Jacket Diameter: 6.20 mm
• AWG: 22
• Impedance: 110 Ω
• Weight per Meter: 50 g
• Temperature Range: -25 °C to 70 °C
• UV Resistant: Yes
• Fire Load per Meter: 0.17 kWh
