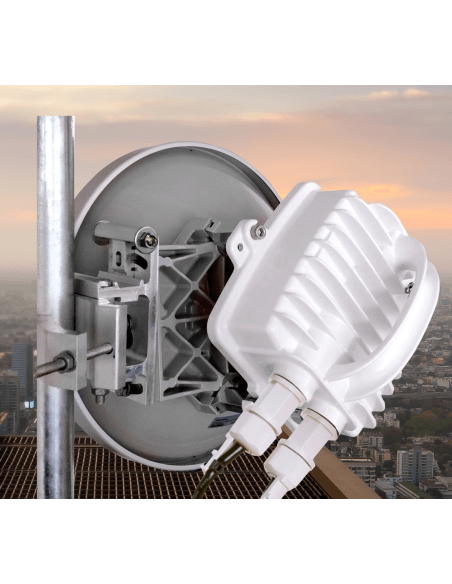

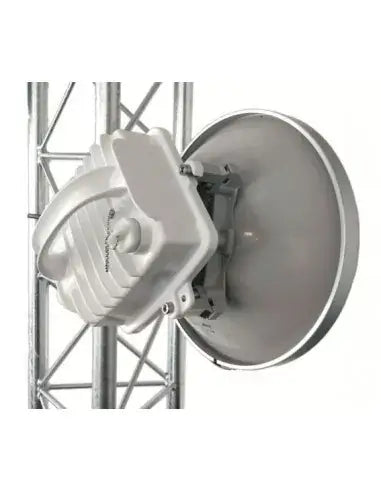

Siklu K-Band PTP Link FDD 1Gbps with 3ft Antenna

The Siklu K-Band (17GHz) PTP Link FDD is designed for high-performance wireless connectivity, delivering up to 1Gbps in a full duplex configuration. This advanced solution is ideal for businesses looking to enhance their network capabilities, especially in urban and rural environments. The included 3ft EXT antenna significantly extends coverage, ensuring reliable communication even in high interference areas.

Features

• 1 Gbps Full Duplex: Provides high-speed data transmission for demanding applications.
• 42 dBi Antenna Gain: The 3ft antenna enhances signal strength and coverage.
• User Configurable Channel Bandwidth: Adjustable from 3.5 to 112MHz for optimized performance.
• Up to QAM 4096: Supports advanced modulation for improved data rates.
• Asymmetrical Channel Flexibility: Maximizes spectrum use and reuse.
• Receiver Sensitivity: Up to -99.0 dBm for superior reception.
• Integrated Gigabit Switch: Features 2x ports (RJ45 & SFP) for versatile connectivity.

Specifications

• Size: H160 x W245 x D245 mm
• Weight: 2.6 kg
• Casing: Rugged die-cast aluminium
• Frequency: 17GHz
• Maximum Data Rate: 1Gbps
• Antenna Gain: 42 dBi
• Channel Bandwidth: User Configurable 3.5 - 112MHz
• Modulation: Up to QAM 4096
• Receiver Sensitivity: Up to -99.0 dBm
• Switch Ports: 2x Gigabit (RJ45 & SFP)
• IP Rating: IP66
• Operating Temperature: -30 to +55°C
