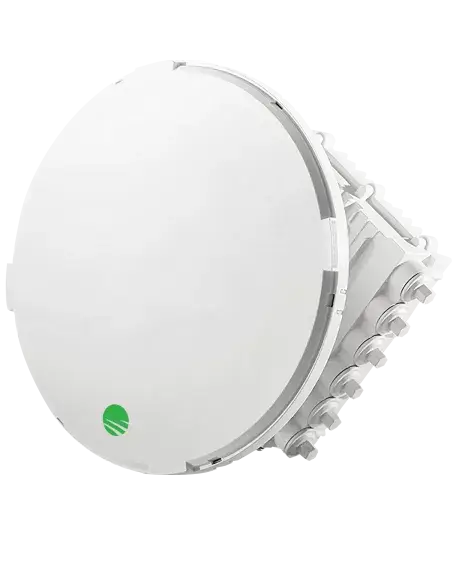

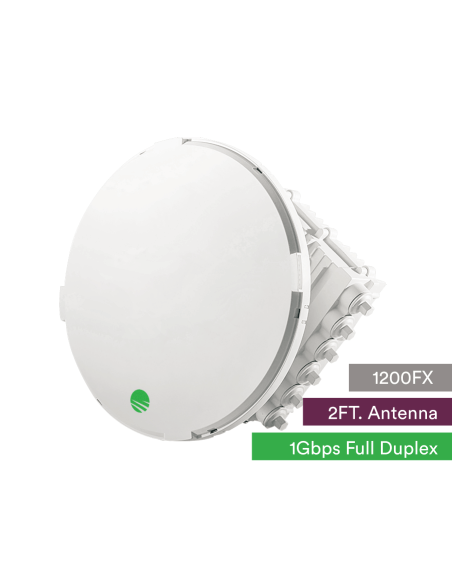

Siklu E-Band PTP Link FDD 1Gbps with 2ft Antenna

The Siklu E-Band PTP Link FDD 1Gbps with 2ft Antenna provides high-capacity, reliable wireless point-to-point connectivity. Operating in the uncongested 80GHz spectrum, it is ideal for urban, suburban, and rural deployments, ensuring fiber-like performance with minimal latency.

Features

• High Capacity: Delivers 1Gbps full duplex throughput over the FDD (Frequency Division Duplex) protocol.
• Uncongested Spectrum: Operates in the 71-76/81-86GHz frequency bands, ensuring minimal interference.
• Robust Design: Built for outdoor use with an ingress protection rating of IP67, ensuring durability in various weather conditions.
• Low Latency: Offers average latency of less than 1 millisecond, suitable for latency-sensitive applications such as voice and video.
• Easy Installation: Lightweight and compact design allows for quick deployment on rooftops or street fixtures.
• Carrier-Grade Performance: Supports high availability with features like Hitless Adaptive Bandwidth Coding and Modulation.
• Future-Proof: Easily upgradable through software, with capacity scalability options that can reach up to 10Gbps.

Specifications

• Dimensions (ODU + 2ft antenna): 650 x 370 mm
• Weight (ODU + 2ft antenna): 10.7 kg
• Throughput: 1Gbps full duplex
• Frequency Bands: 71-76GHz and 81-86GHz
• Modulation: QPSK-1/QPSK-2/QPSK-3/QAM16/QAM64
• Antenna: External 2ft (65cm) with 50dBi gain
• Power: PoE+ (IEEE 802.3at with power boost)
• Operating Temperature: -45° to +55°C
• MTBF: 90 years
