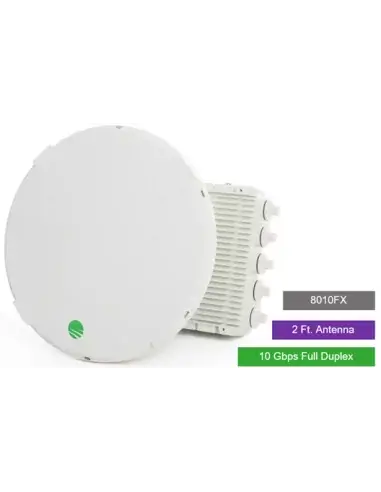

Siklu E-Band 80GHz PTP Link 10Gbps 2ft Dual-Band Antenna

The Siklu E-Band 80GHz PTP Link is a high-performance solution designed for multi-gigabit wireless connectivity, providing up to 10Gbps throughput. Ideal for urban, suburban, and rural deployments, this dual-band antenna ensures reliable and interference-free performance, making it perfect for service providers and system integrators aiming to deliver high-speed internet access.

Features

• 10Gbps Throughput: Delivers exceptional full-duplex throughput for high-capacity networks.
• Dual-Band Operation: Features 80GHz E-Band and 5GHz failover for enhanced reliability.
• Robust Design: IP67 rated for superior durability in harsh environmental conditions.
• Low Latency: Offers latency of less than 1 millisecond, ideal for voice and video applications.
• Scalable Capacity: Easily upgradeable from 1Gbps to 10Gbps, with future scalability to 20Gbps and 40Gbps.
• High Security: Beam width of about half a degree minimizes the risk of unauthorized access.
• Carrier-Grade Uptime: Achieves up to 99.999% uptime, even in extreme weather conditions.

Specifications

• Frequency: 71-76GHz / 81-86GHz
• Duplexing: FDD
• Max Tx Power: +18dBm
• Channel Bandwidth: 250, 500, 1000, and 2000MHz
• Modulation: BPSK to QAM128
• System Gain: 64 / 93 dB (maximum capacity / minimum modulation)
• Antenna Gain: 50dBi (2ft antenna)
• Interfaces: 1 combo 10GE port (RJ-45 or SFP+), 1 GE port (RJ-45)
• Operating Temperature: -45°C to +55°C
• Weight: Approximately 13.9kg (30.6 lbs)
