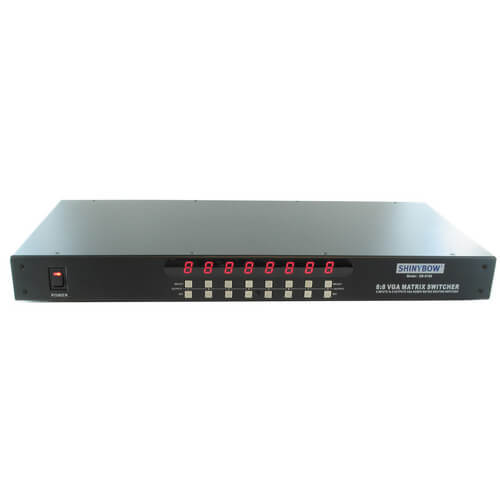

SHINYBOW SB-8180 8x8 VGA Matrix Switcher with IR & RS

The SHINYBOW SB-8180 is a professional-grade 8x8 VGA Matrix Switcher designed to seamlessly route VGA signals from multiple sources to multiple displays. With eight individual inputs and outputs, this switcher allows for flexible routing options, making it ideal for various applications including presentations, video conferencing, and multi-display setups. The unit can be controlled using the included IR remote, front panel buttons, or via RS-232 for integration with advanced control systems.

Features

• 8x8 Matrix Switching: Supports 8 VGA inputs and 8 VGA outputs, allowing any input to be routed to any output or all outputs.
• High Video Bandwidth: Delivers exceptional video quality with a bandwidth of up to 380MHz, supporting resolutions up to 1920x1200 (WUXGA).
• Multiple Control Options: Control the switcher via front panel buttons, IR remote, or RS-232 interface for seamless integration with control systems.
• Low Crosstalk: Maintains high signal integrity with low crosstalk of -83 dB at 5MHz.
• Rack Mountable: Comes with 19-inch rack mount ears, making it suitable for professional installations.

Specifications

• Type of Switcher: 8x8 VGA (RGBHV) Matrix Switcher
• Input Ports: 8 x VGA (RGBHV) via HD-15p connectors
• Output Ports: 8 x VGA (RGBHV) via HD-15p connectors
• Video Bandwidth: 380MHz (-3dB)
• Supported Resolutions: Up to 1920x1200 (WUXGA)
• RS-232 Control: Yes, compatible with Windows 95/98/2000/XP
• Power Supply: DC 12V / 2A
• Dimensions: 482mm (W) x 200mm (D) x 44mm (H)
• Weight: 3.15 kg
