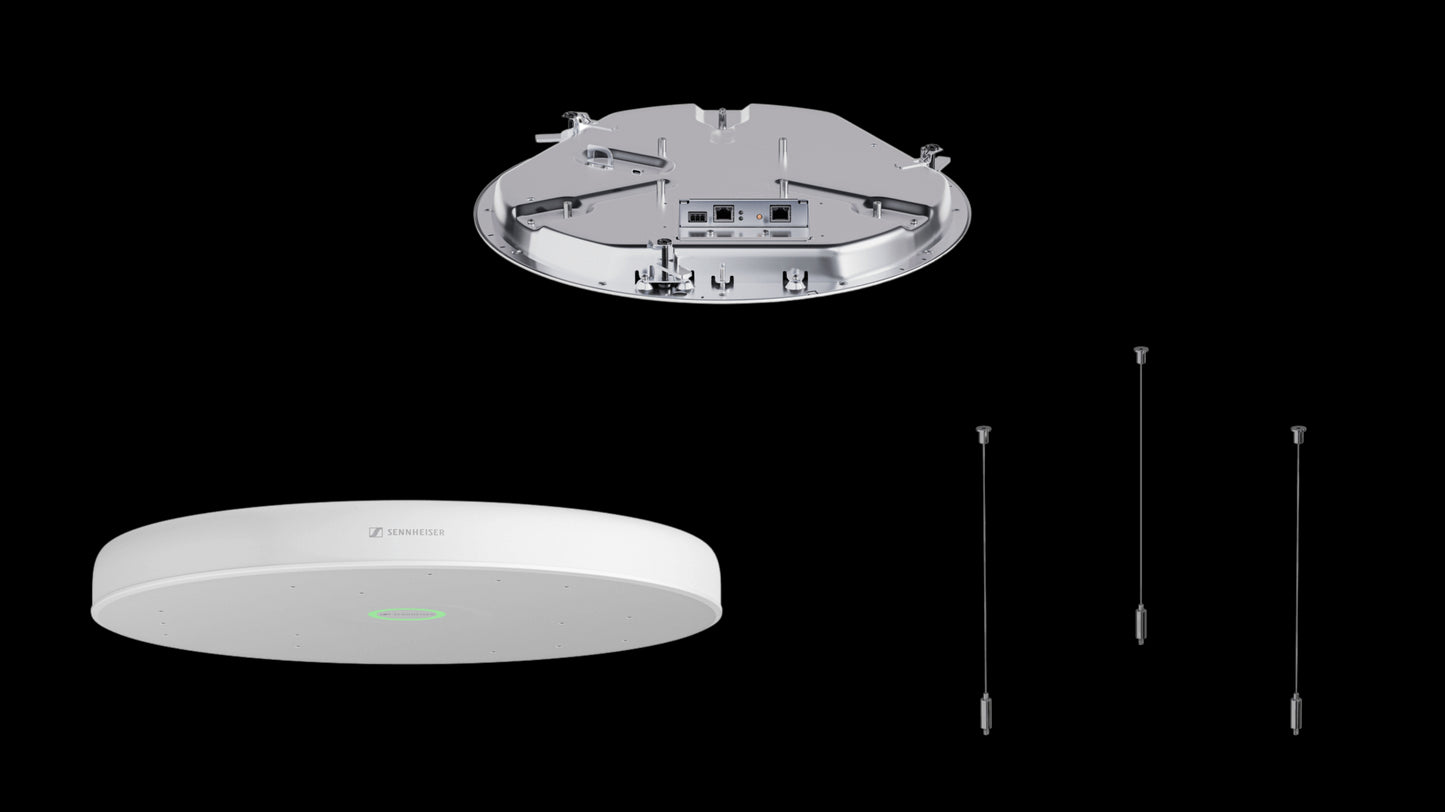

Sennheiser TCC M-H-W TeamConnect Ceiling Medium Mic Housing Kit, White

The Sennheiser TCC M-H-W TeamConnect Ceiling Medium Mic Housing Kit in White is designed to enhance your meeting experience in medium-sized conference rooms and learning environments. This versatile ceiling microphone array features 15 SMD microphone capsules with adaptive beamforming technology that automatically follows the active speaker's voice. It supports both Dante networks and PoE (Power over Ethernet) for easy installation and integration into your existing media systems. The kit includes all necessary components for surface-mounting or suspending the microphone from the ceiling, ensuring a seamless and flexible setup.

Features

• Patented automatic dynamic beamforming for optimal speech intelligibility.
• TruVoicelift functionality to amplify speech, ensuring everyone is heard.
• 15 SMD electret condenser capsules made in Germany for superior audio quality.
• Supports both analog and digital (Dante) audio outputs for versatile connectivity.
• Power over Ethernet (PoE) for easy installation and reduced cable clutter.
• Camera control via talker position data for enhanced video conferencing.
• Certified for MS Teams, Zoom, DingTalk, and Tencent for seamless integration.
• Supports IEEE 802.1x and TLS 1.2 security protocols for secure networking.

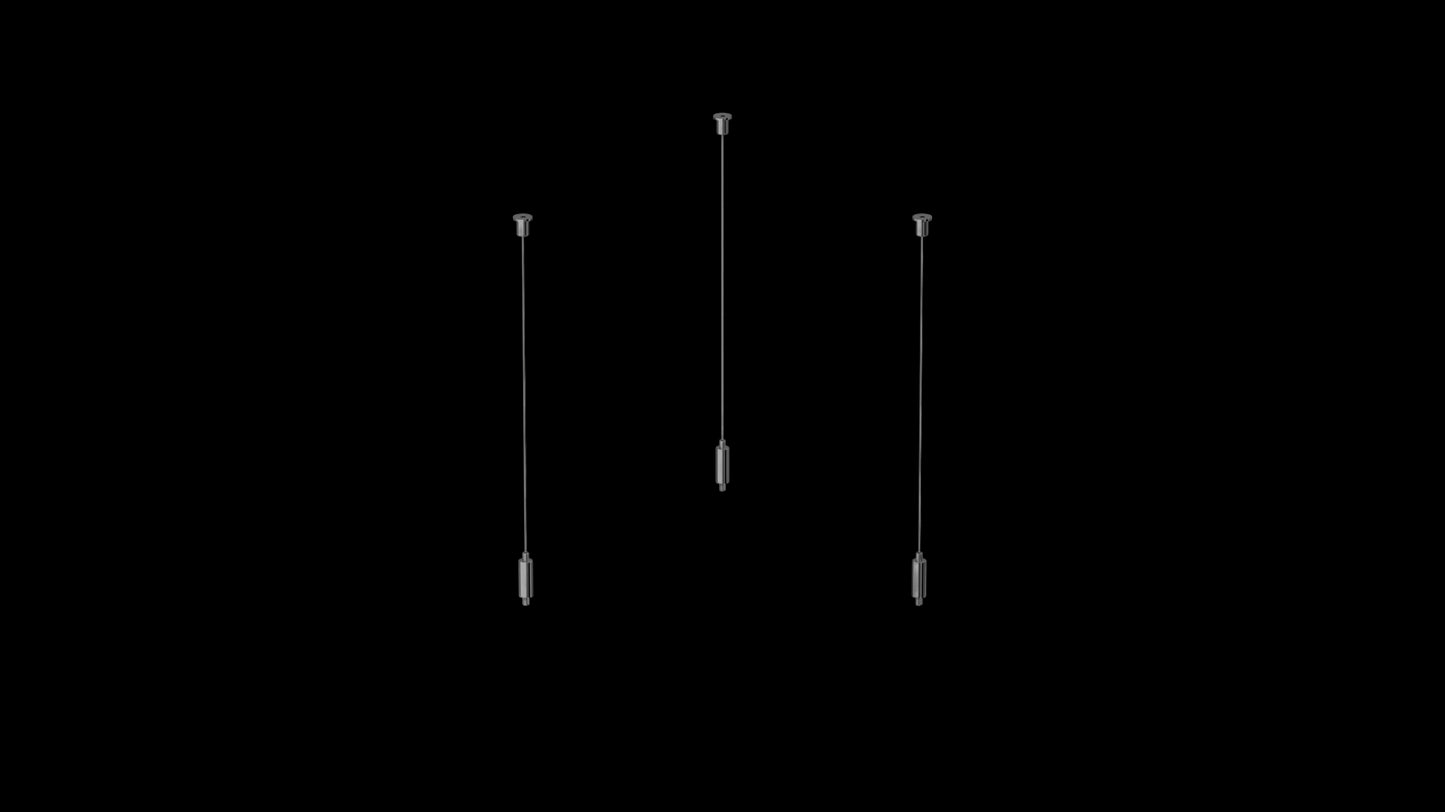

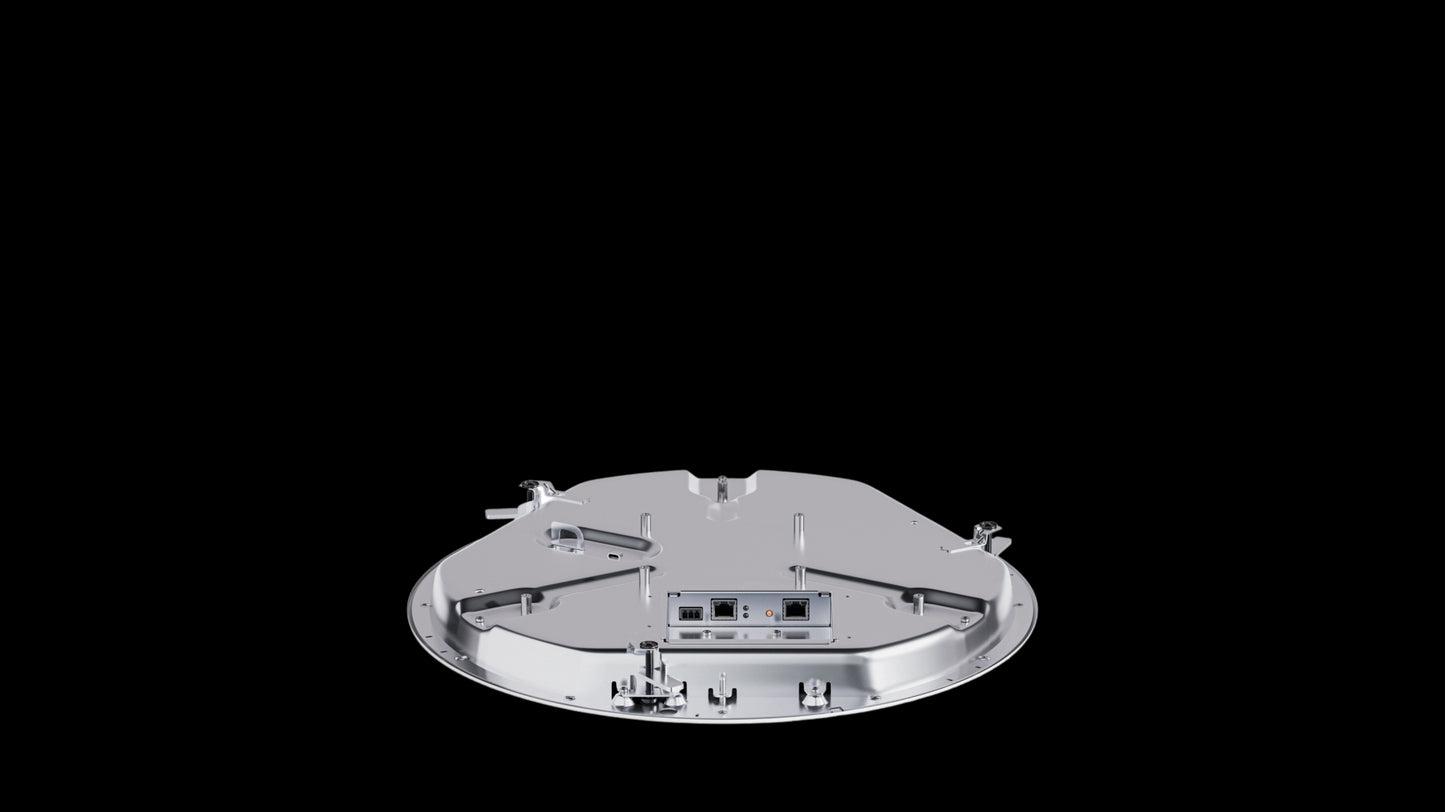

• Includes installation kit for surface-mounting or suspending the microphone from the ceiling.

Specifications

• Dimensions (Ø x H): 407 x 46 mm
• Weight: 4.9 kg (10.8 lbs)
• Audio Output: 1 x 3-pin terminal (fits Phoenix contact MCVW 1.5-3-ST-3.81), 1x Digital Dante Network Audio (RJ-45)
• Ethernet / Control: 1 x RJ-45 Ethernet Port for PoE power supply and data/control communication
• Supply voltage: PoE IEEE 802.3af Class 3 or PoE IEEE 802.3at / Type 2 / Class 4 (when cascaded)
• Power consumption: approx. 8 W
• Safety certification: IEC/EN 62368-1 (including UL 2043 testing and compliance)
• Frequency Response: 100 Hz to 16 kHz
• Signal to Noise Ratio: 77 dB (A Weighted)
• Sensitivity: 0 dBV/Pa (1020 mV/Pa)
• Equivalent Noise Level: 17 dB (A Weighted)
• Polar Pattern: Beam Pattern
• Maximum Sound Pressure Level (SPL): 98 dB
• Dynamic Range: 81 dB (A Weighted)
• Operating Temperature: 32 to 104°F / 0 to 40°C
• Operating Humidity: 20 to 95% non-condensing
