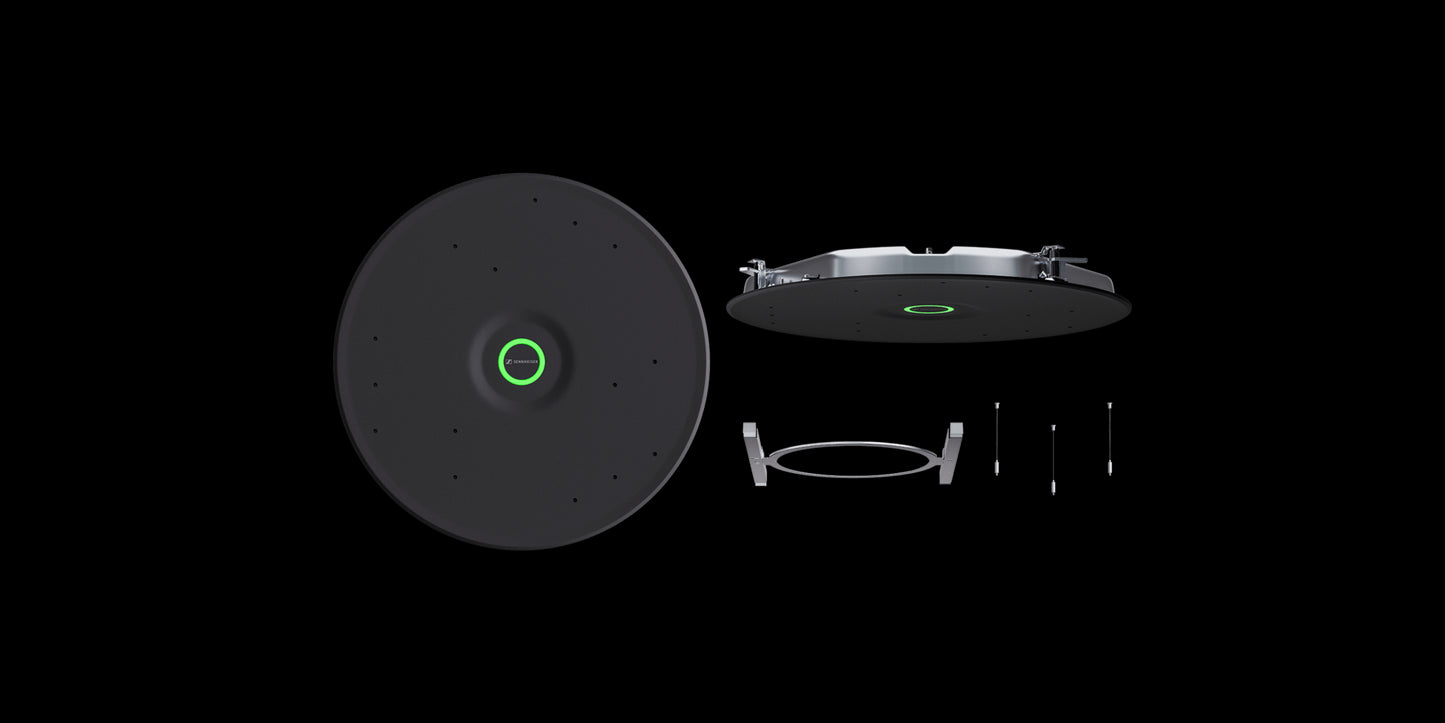

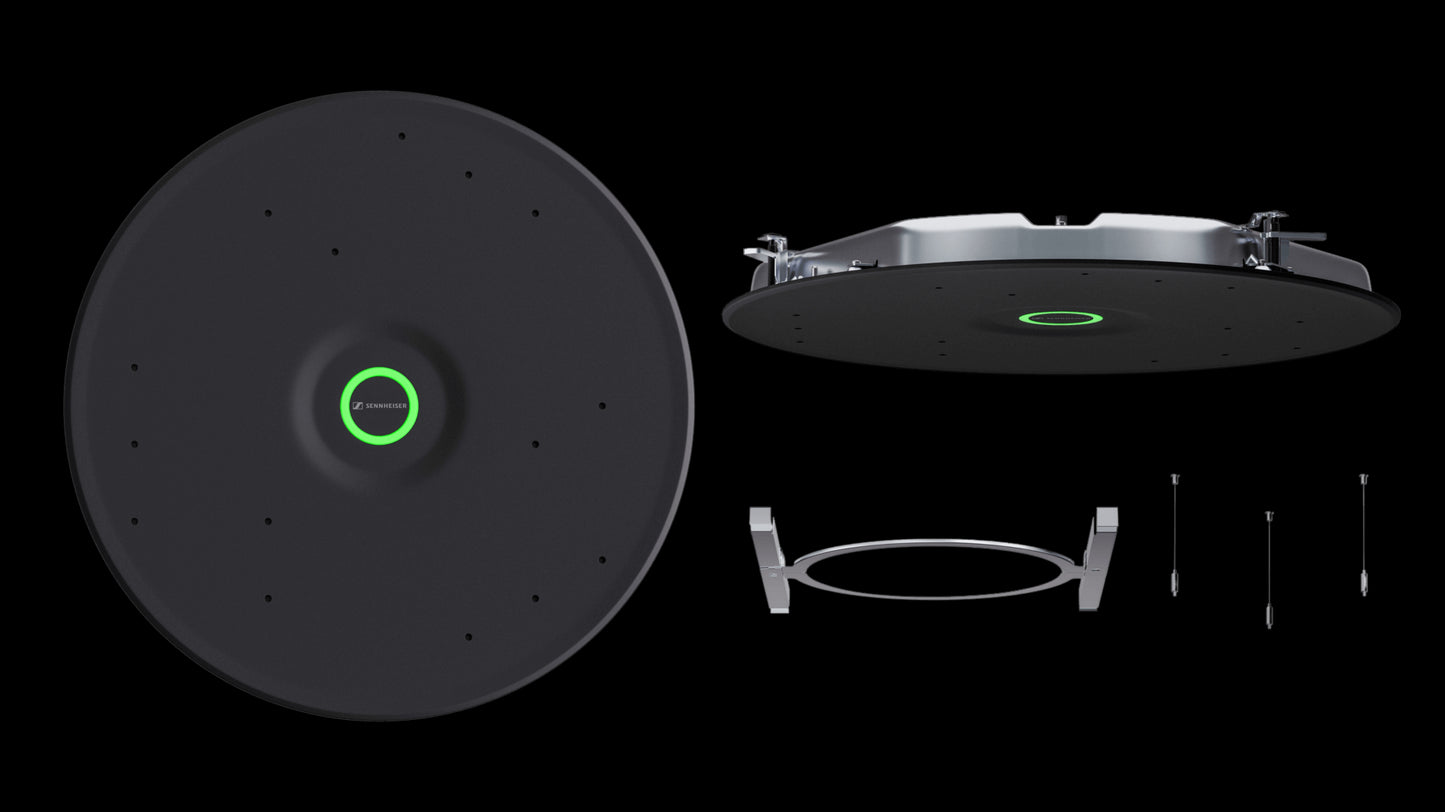

Sennheiser TCC M-F-B TeamConnect Ceiling Medium Mic Flushmount Kit, Black

The Sennheiser TCC M-F-B TeamConnect Ceiling Medium Mic Flushmount Kit in black is designed to bring versatility and adaptability to your meeting spaces. With features like patented automatic dynamic beamforming, TruVoicelift, and 15 SMD Electret condenser capsules, this ceiling microphone ensures perfect speech intelligibility. It is ideal for mid-sized meeting rooms and learning environments, offering seamless integration and superior audio quality.

Features

• Patented Automatic Dynamic Beamforming: Automatically adjusts to the speaker's position for clear audio capture.
• TruVoicelift: Enhances voice clarity and intelligibility in the room.
• 15 SMD Electret Condenser Capsules: Made in Germany, ensuring high-quality audio capture.
• Perfect Speech Intelligibility: Ensures clear and understandable speech in any setting.
• Dante or Analog Output: Flexible connectivity options for various audio setups.
• Power over Ethernet (PoE): Simplifies installation by combining power and data over a single cable.
• Exclusion Zones: Allows you to define areas where the microphone will not pick up sound.
• Priority Zone: Ensures that the microphone focuses on specific areas for important audio.
• Camera Control via Talker Position Data: Integrates with camera systems to focus on active speakers.
• IEEE 802.1x and TLS 1.2: Provides secure network communication.
• 5-Year Warranty: Offers peace of mind with long-term product support.

Specifications

• Dimensions: 407 x 46 mm
• Weight: 4.9 kg (10.8 lbs)
• Audio Output: 1 x 3-pin terminal (fits Phoenix contact MCVW 1.5-3-ST-3.81), 1x Digital Dante Network Audio (RJ-45)
• Ethernet/Control: 1 x RJ-45 Ethernet Port for PoE power supply and data/control communication
• Supply Voltage: PoE IEEE 802.3af Class 3 or PoE IEEE 802.3at / Type 2 / Class 4 (when cascaded)
• Power Consumption: Approx. 8 W
• Safety Certification: IEC/EN 62368-1 (including UL 2043 testing and compliance)
• Transducer Principle: Pre-polarized condenser microphone
• AF Frequency Response: 100 Hz - 16,000 Hz
• Sensitivity: 0 dBV/Pa (1020 mV/Pa)
• Signal-to-Noise Ratio: 77 dB (A)
• Equivalent Noise Level: 17 dB (A)
• Number of Microphone Capsules: 15
• Pick-up Pattern: Beam Pattern
• Max. Sound Pressure Level: 98 dB SPL
• Dynamic Range: 81 dB (A)
• Operating Temperature: 0 - 40°C (32 - 104 °F)
• Storage Temperature: –10 - 60°C (14 - 140 °F)
• Relative Air Humidity: 20 - 95%, non-condensing
