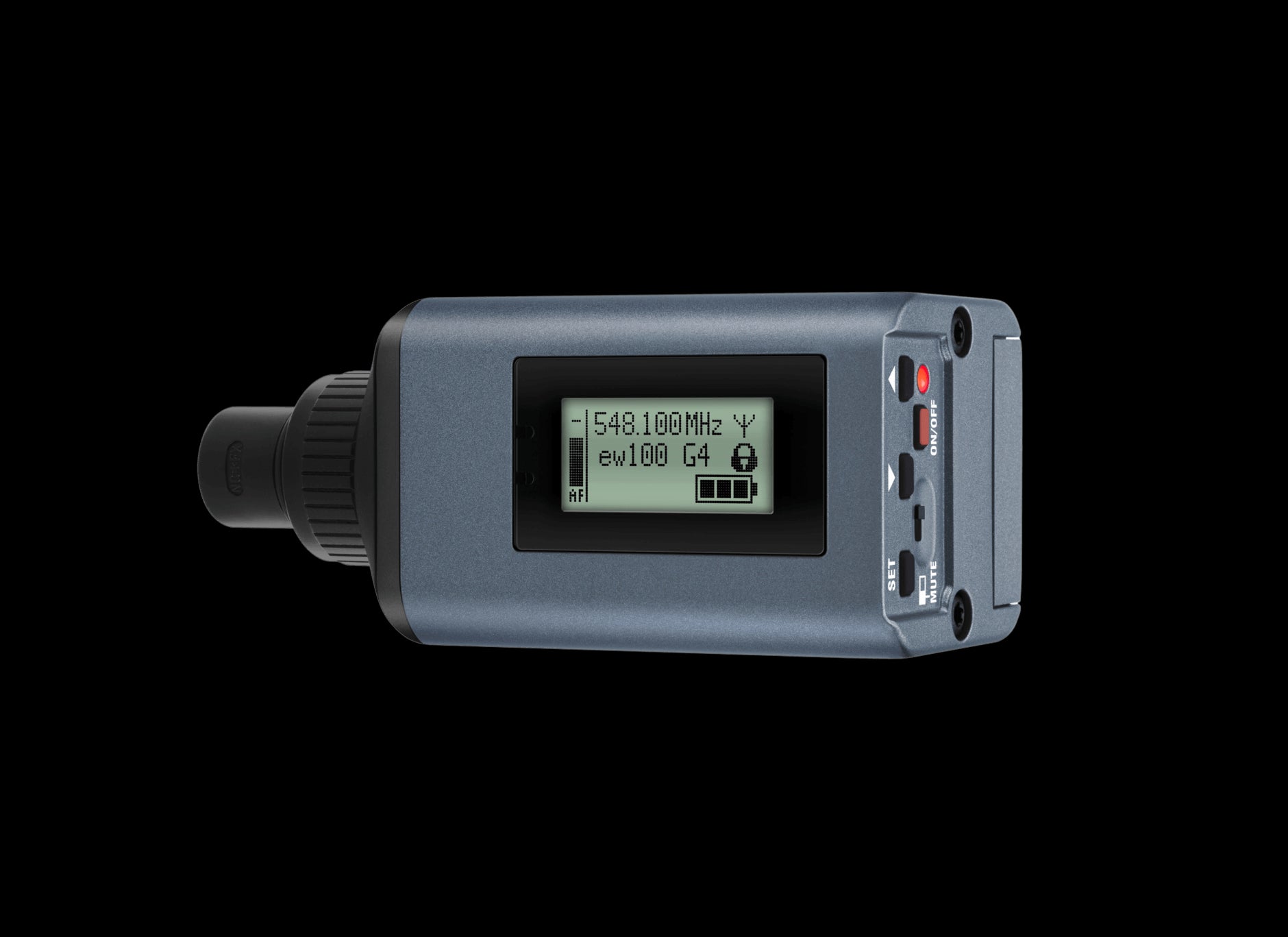

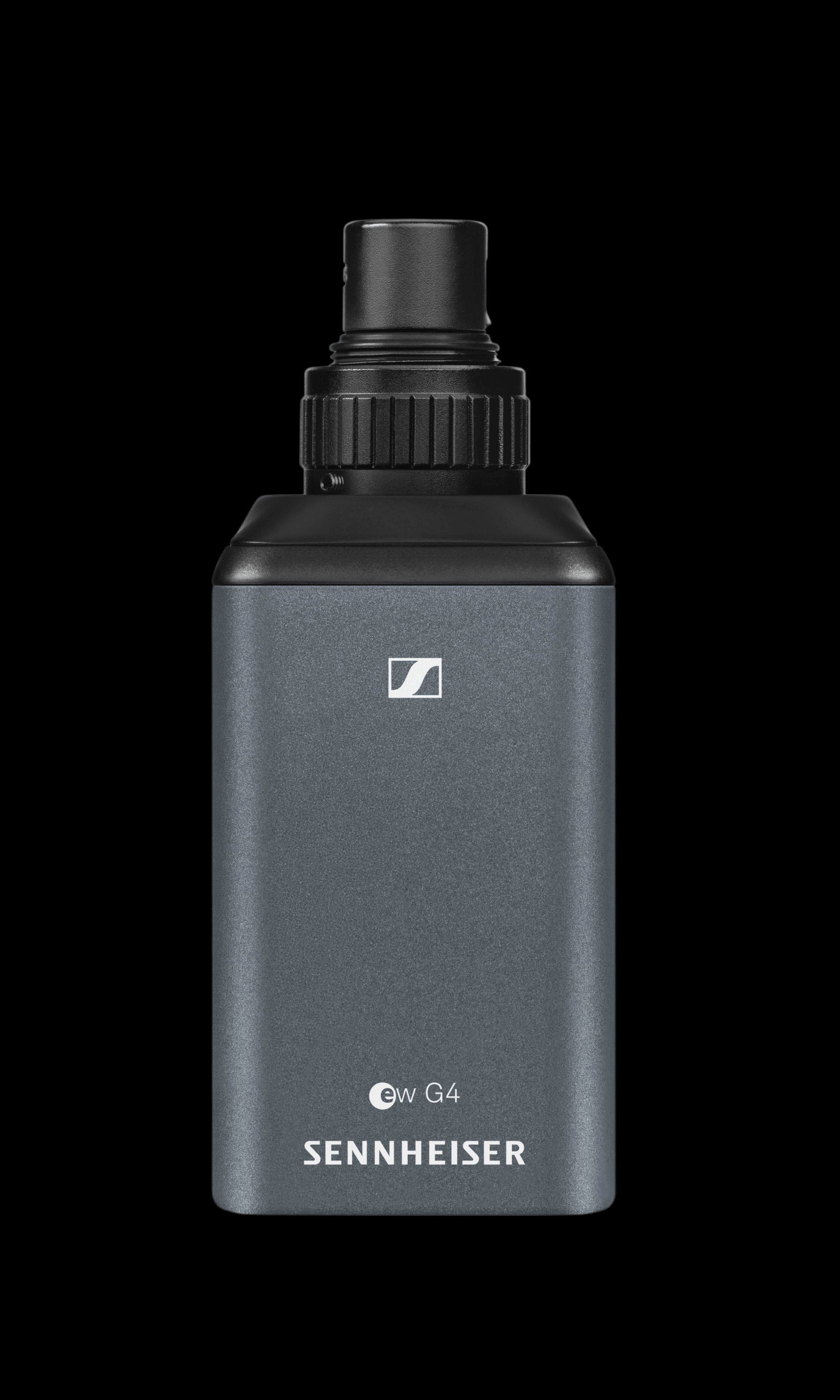

Sennheiser SKP 100 G4-B Plug-on Transmitter, 626-668MHz

The Sennheiser SKP 100 G4-B Plug-on Transmitter is a powerful and versatile tool that transforms any XLR-equipped dynamic microphone into a wireless unit. This plug-on transmitter is part of Sennheiser's evolution wireless G4 series, known for its excellent sound quality and reliable transmission. Ideal for live sound, broadcast, film, business, and educational applications, the SKP 100 G4-B features a high-contrast LCD display, blue sync LED, and a dedicated escape button for easy setup and operation. With a robust metal housing and up to 8 hours of operation time, this transmitter is designed to meet the demands of professional use.

Features

• High-Contrast LCD Display: Provides clear visibility of settings and status.
• Blue Sync LED: Ensures reliable synchronization with receivers.
• Dedicated Escape Button: Facilitates quick and easy navigation through settings.
• Sturdy Metal Housing: Offers durability and protection for professional use.
• 42 MHz Bandwidth: Allows for 1680 tunable UHF frequencies for interference-free reception.
• Enhanced Frequency Bank System: Supports up to 12 compatible frequencies per bank.
• Pilot Tone Squelch: Eliminates RF interference when the transmitter is turned off.
• Wireless Synchronization: Syncs transmitter via infrared interface for quick setup.
• Auto-Lock Function: Prevents accidental changes to settings.
• HDX Compander: Ensures crystal-clear sound quality.
• Up to 8 Hours of Operation: Powered by 2 AA batteries for extended use.

Specifications

• Wireless Technology: Analog UHF
• Max Operating Range: 328.1' / 100 m
• Transmitter Type: Plug-On
• Audio I/O: 1x XLR 3-Pin Female Balanced Input (Locking)
• RF Frequency Band: 626-668 MHz
• RF Bandwidth: Up to 42 MHz
• Frequency Step Size: 25 kHz
• RF Channel Scanning: Auto-Scan
• Built-In Recorder: No
• Timecode Support: No
• Encryption: No
• Modulation: Wideband FM
• RF Output Power: Up to 30 mW (at 50 Ohms)
• Audio Input Level: 3.3 V RMS
• Auto-Level Control: No
• Memory Card Support: No
• Gain Range: 48 dB (6 dB Steps)
• Signal Processing: No
• Frequency Response: 80 Hz to 18 kHz
• Sync Method: Manual
• Antenna: Internal
• Power Requirements: Battery
• Battery Type: 2x AA (Replaceable)
• Approx. Battery Life: 8 Hours
• Display & Indicators: 1x Backlit LCD (Audio Level, Battery Status, Channel, Power, Signal Strength)
• Operating Temperature: 14 to 131°F / -10 to 55°C
• Dimensions: 4.1 x 1.7 x 1.7" / 105 x 43 x 43 mm
• Weight: 6.9 oz / 195 g
• Package Weight: 0.95 lb
• Box Dimensions (LxWxH): 355.6 x 81.28 x 72.39 mm
