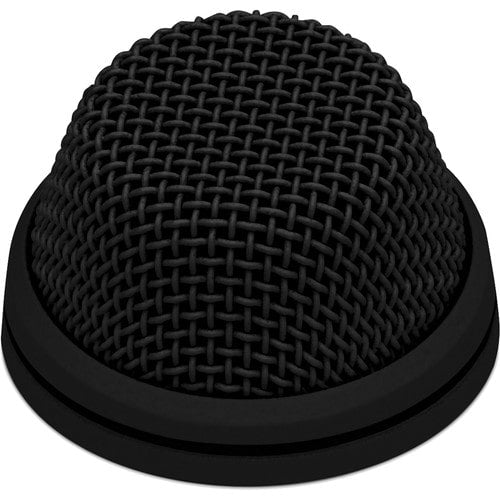

Sennheiser MEB 104 B Cardioid Boundary Layer Microphone - Black

The Sennheiser MEB 104 B Cardioid Boundary Layer Microphone is designed for seamless integration into tables, ceilings, and other surfaces. With its cardioid polar pattern, it provides excellent speech intelligibility, making it perfect for conference rooms, lecture halls, and other professional settings. The microphone features a robust housing and a sleek, unobtrusive design, ensuring both durability and aesthetic appeal. With a wide frequency range and high SPL handling, the MEB 104 B is versatile enough for various applications, from presentations to high - stakes corporate meetings.

Features

• Cardioid Polar Pattern: Ensures optimal speech intelligibility by focusing on sound from the front while reducing background noise.
• Wide Frequency Range: Covers 40Hz to 20kHz, capturing a broad spectrum of sounds.
• High SPL Handling: Capable of recording sounds with a maximum SPL of up to 125dB, suitable for dynamic environments.
• Compact and Discreet Design: Fits seamlessly into any interior, whether installed in tables, ceilings, or podiums.
• Robust Housing: Provides durability and protection for the microphone capsule.
• Easy Installation: Features M20 threading for secure mounting and a 3-pin XLR connector for simple connectivity.
• Versatile Application: Ideal for use in conference rooms, boardrooms, lecture halls, and more.

Specifications

• Transducer: Condenser
• Polar Pattern: Cardioid
• Frequency Range: 40 Hz to 20 kHz
• Equivalent Noise Level: 28 dB A-Weighted, 38 dB CCIR
• Maximum SPL: 125 dB SPL
• Impedance: 200 Ohms
• Sensitivity: 14 mV/Pa
• Dynamic Range: 97 dB A-Weighted
• Output Connectors: 1 x 3-Pin XLR
• Operating Current Consumption: 3 mA
• Operating Voltage: 24 V to 48 V
• Operating Temperature: 32 to 104°F / 0 to 40°C
• Diameter: 1.12″ / 28.5 mm
• Weight: 2.12 oz / 60 g
• Package Weight: 0.25 lb
• Box Dimensions (LxWxH): 4.5 x 3.4 x 1.7″
