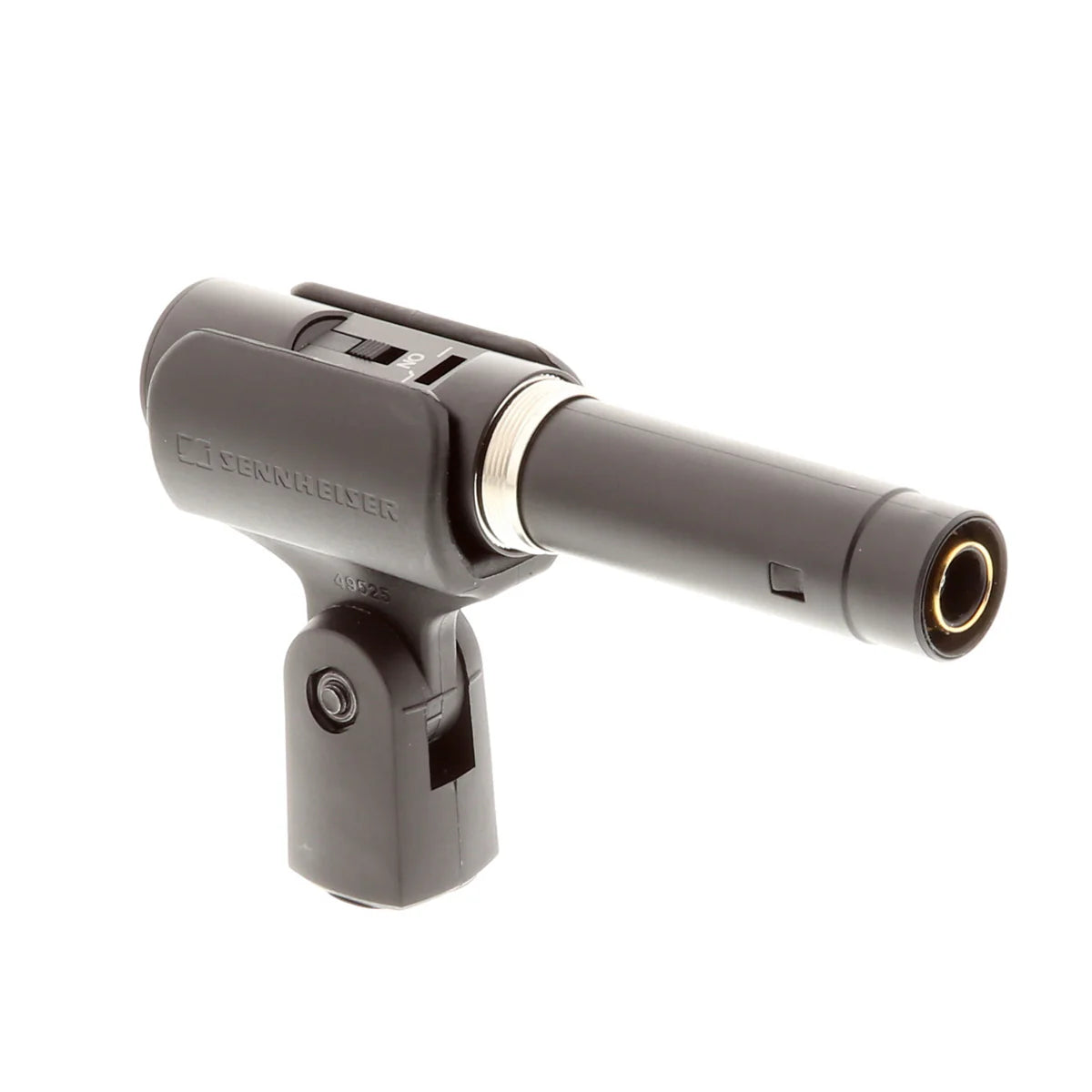

The Sennheiser K6-P Powering Module is a crucial component of Sennheiser 's professional modular condenser microphone system, designed for phantom power operation. It offers high output, low noise, and a switchable bass roll - off filter to protect against rumble, handling noise, pop, and wind noise. The K6P can be combined with various microphone heads to produce microphones with different pick - up patterns.

Features

• Switchable bass roll-off filter for noise protection
• On/off switch for convenience
• High output with low noise
• Transformerless balanced output on 3-pin XLR connector
• Includes 1 K6P powering module, 1 MZQ 200 microphone clamp, and 1 protective carrying case

Specifications

• Frequency Response: 30 – 20,000 Hz - 1 dB
• Transmission Factor (1 kHz): 0 dB
• Nominal Impedance: 200 Ω
• Min. Terminating Impedance: 1 k Ω
• Max. Output Voltage: 2 V (at 1 kHz)
• Power Supply: Phantom 12 - 48 V (± 4 V)
• Supply Current: 2.2 mA
• Dimensions: 118 x Ø 22 mm
• Resultant Length: 52 mm
• Weight: approx. 30 g
