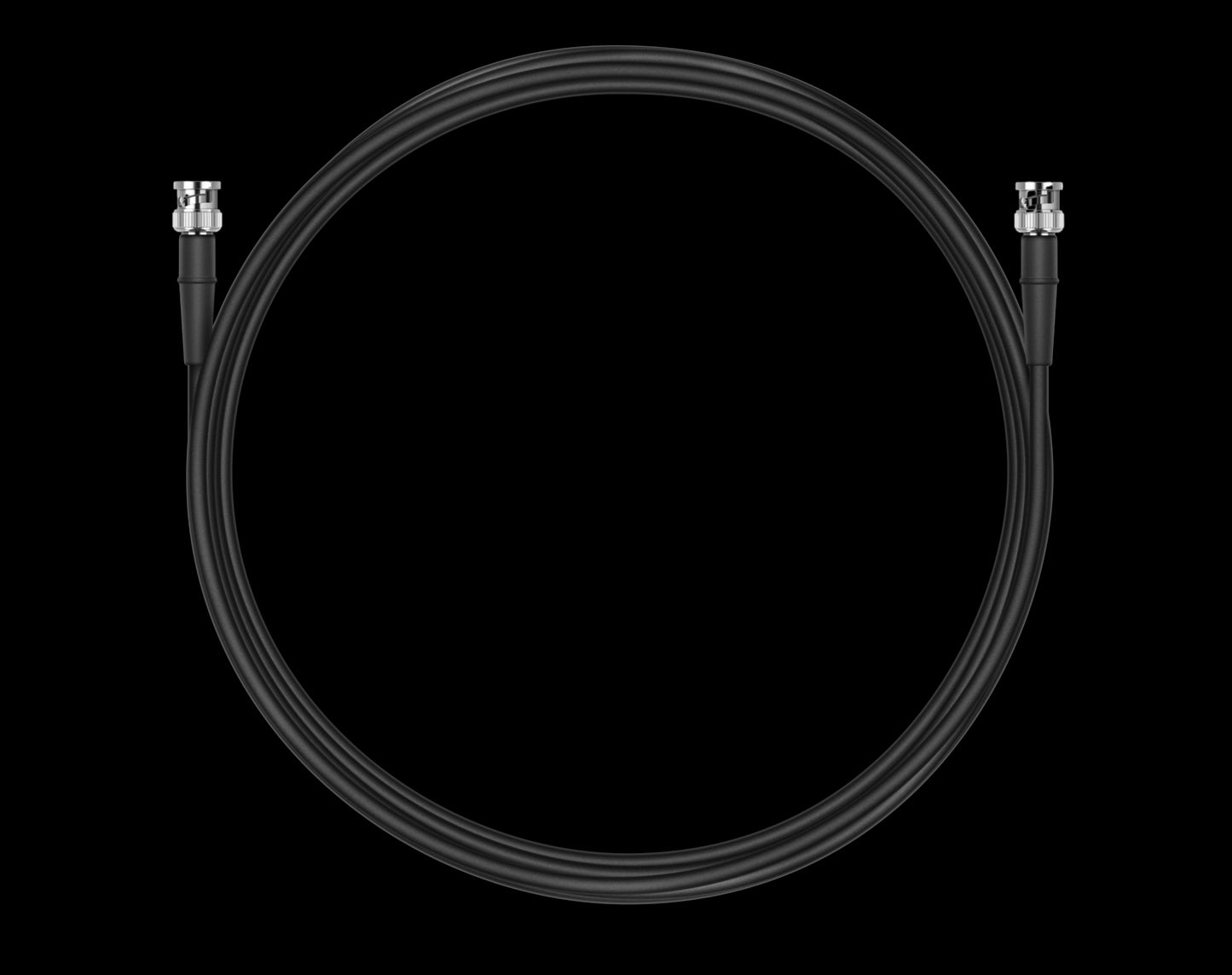

Sennheiser GZL RG 8x Low Damping Coaxial Cable, 5m with BNC Connector

The Sennheiser GZL RG 8x Low Damping Coaxial Cable is designed for optimal performance in wireless system setups. This 5-meter, 50-ohm coaxial cable features low damping, making it ideal for longer cable runs when connecting antennas, RF distribution, and other devices. Equipped with BNC male connectors on both ends, it ensures secure and reliable connections. Suitable for a wide range of professional applications, this cable offers maximum attenuation and operates efficiently up to 1000 MHz.

Features

• Low Damping: Optimized for longer cable runs, ensuring minimal signal loss.
• High Compatibility: Equipped with BNC male connectors on both ends.
• Durable Construction: Built to withstand demanding professional environments.
• High Frequency Range: Operates efficiently up to 1000 MHz.
• Temperature Resistant: Functions reliably in a wide temperature range from -40 to 70°C.

Specifications

• Length: 5m (16.4 feet)
• Impedance: 50 ohms
• Maximum Attenuation: 16.8 dB/100m at 400 MHz, 25.5 dB/100m at 800 MHz
• Max Operating Frequency: 1000 MHz
• Diameter: 6.8mm
• Connector 1: BNC Male
• Connector 2: BNC Male
• Operating Temperature: -40 to 158°F / -40 to 70°C
• Package Weight: 0.79 lb
• Box Dimensions (LxWxH): 12.7 x 12.1 x 1.4 inches
