Sennheiser EW-DP ME2 SET (S1-7) Wireless Lavalier Set

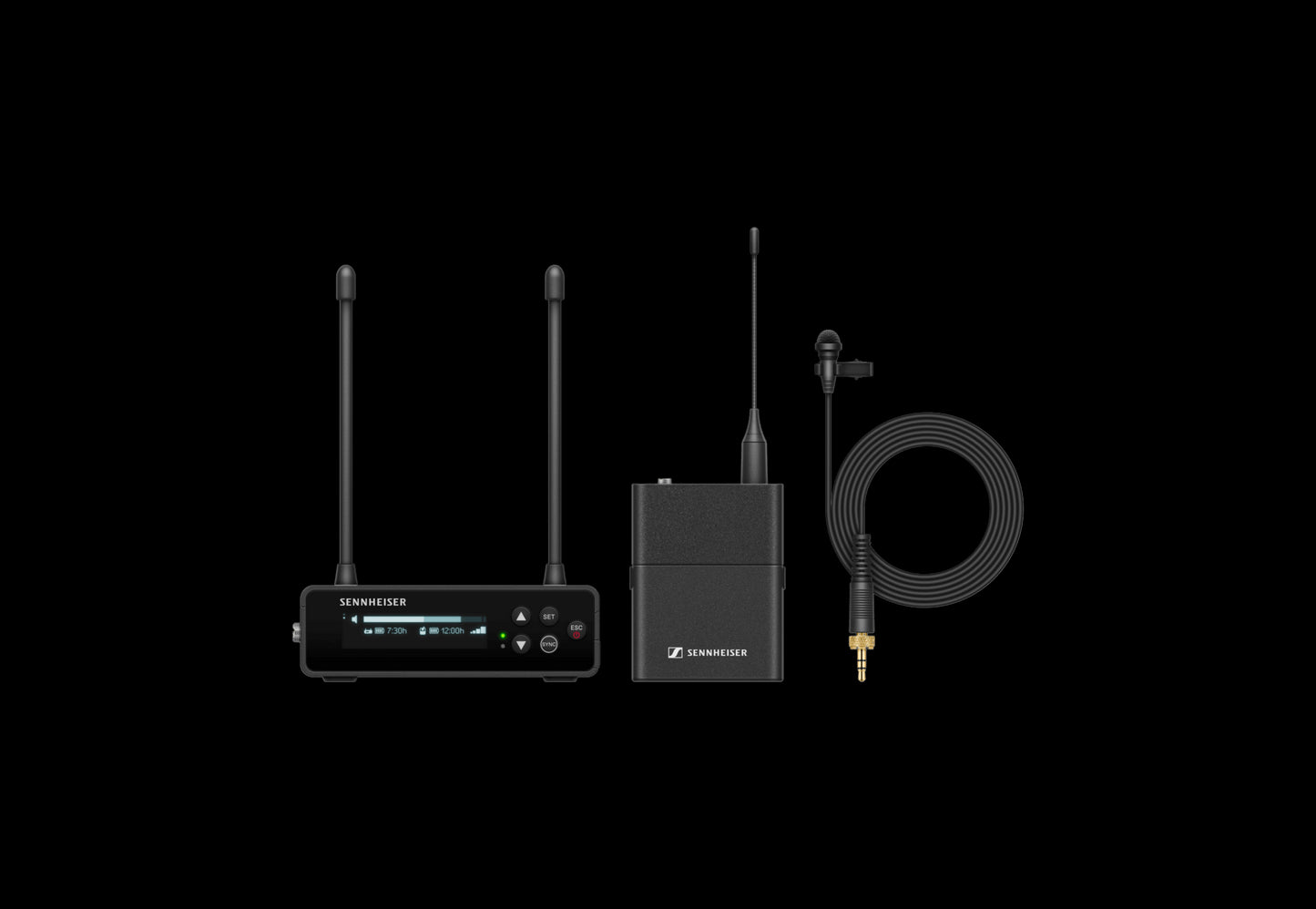

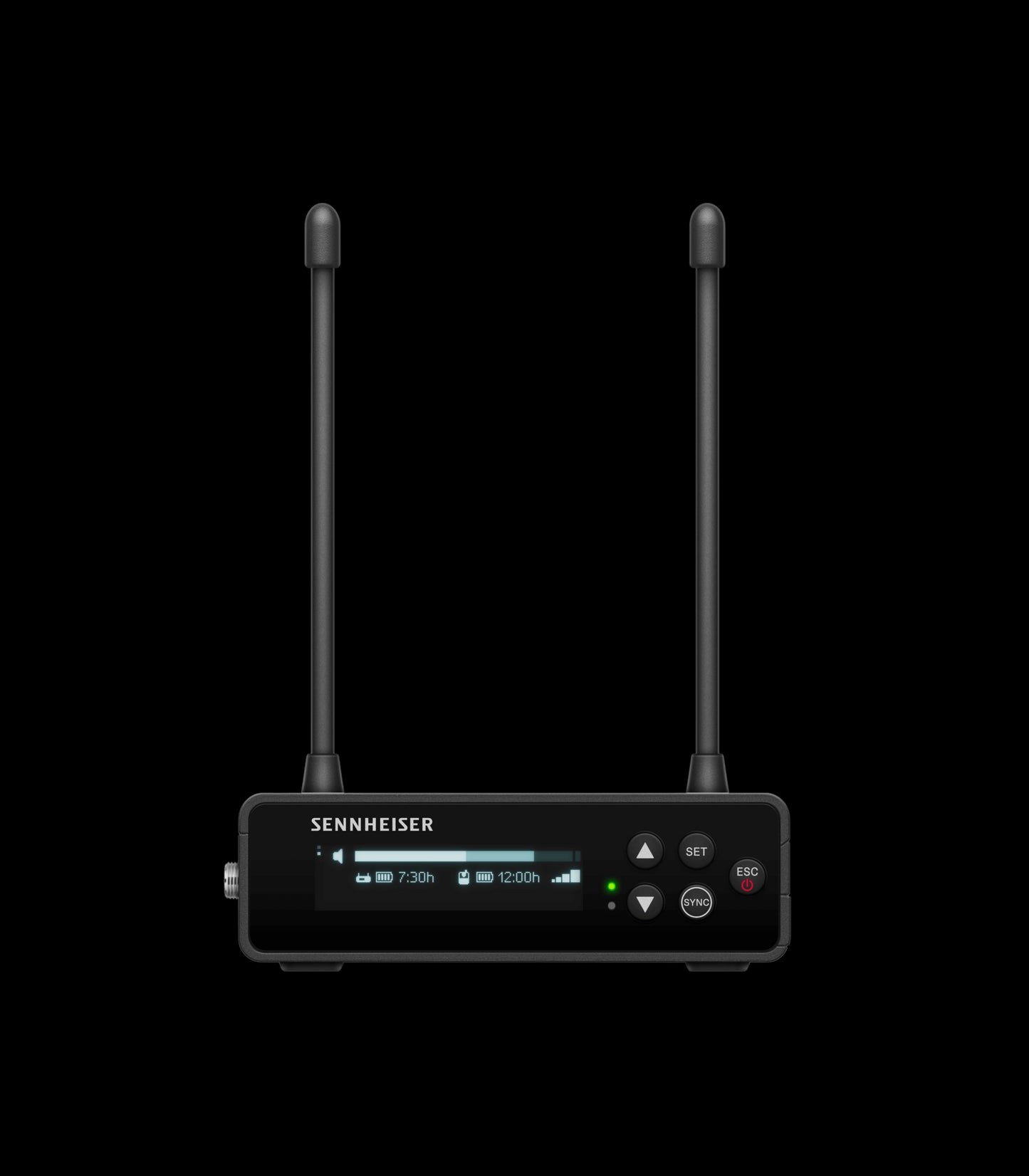

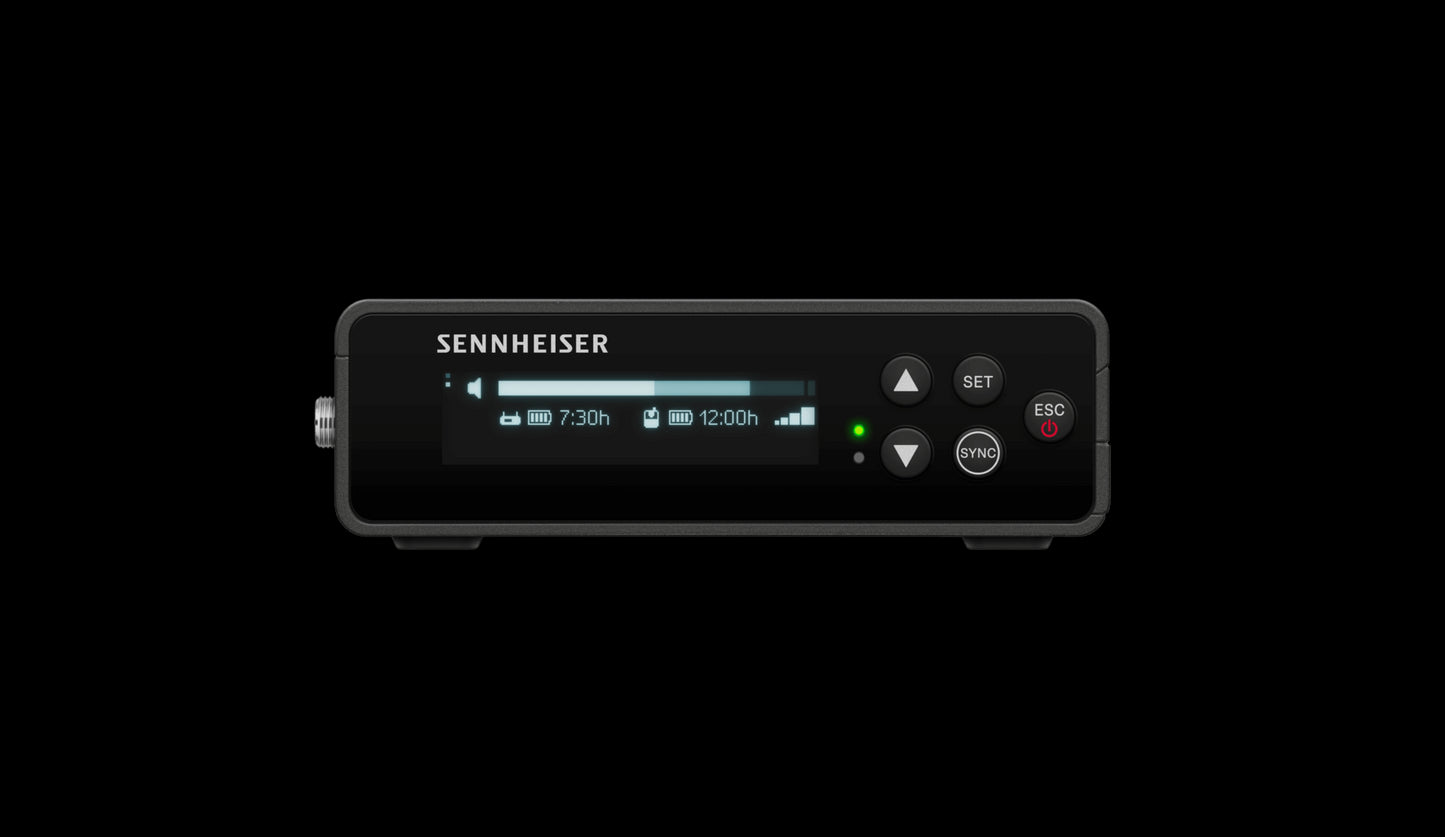

The Sennheiser EW-DP ME2 SET (S1-7) Wireless Lavalier Set is perfect for interviews, documentaries, and broadcast settings. This set includes the EW-DP EK digital portable single-channel receiver, EW-D SK digital bodypack transmitter, ME 2 omnidirectional lavalier microphone, a mounting kit (including cheese plate and cold shoe), a rechargeable battery, and various accessories. Part of the Evolution Wireless Digital family, it builds upon the renowned reliability and sound quality of the Evolution Wireless G4 analog systems, delivering numerous enhancements such as wireless sync over Bluetooth, enhanced ease of use via a large OLED display and Smart Assist App control, wider dynamic range, and longer runtimes via the battery pack.

Features

• Digital wireless technology eliminates noise, interference, and static bursts.
• UHF transmission enhances range, reliability, and scalability.
• Smart Assist App streamlines setup and operation, eliminating complicated menus.
• Automated setup creates reliable connections with minimal time and effort.
• Up to 2,240 selectable frequencies for flexible usage.
• Transmission range up to 100 meters in an ideal environment without obstacles.
• Lithium-ion battery pack delivers up to 12 hours of operation.
• 56 MHz bandwidth allows for up to 90 channels.
• Preserves every detail of dynamic performances with a 134 dB transmitter dynamic range.

Specifications

• Audio frequency response: 20 Hz - 20 kHz (-3 dB)
• Audio THD: ≤ -60 dB for 1 kHz @ -3 dBfs input level
• Dynamic range: 134 dB
• System latency: 1.9 ms
• Operating temperature: -10 °C - +55 °C (14 °F - 131 °F)
• Relative humidity: 5 - 95% (non-condensing)
• Input voltage (receiver): 11 - 13 V ⎓
• Input current (receiver): ≤ 300 mA
• Transmit power (radiated): BLE: max. 10 mW EIRP
• Audio output power: 18 dBu max.
• Receiver dimensions: 212 x 44 x 189 mm (8.35" x 1.73" x 7.44")
• Receiver weight: approx. 1000 g (2.2 lbs)
• Set in packaging dimensions: 405 x 350 x 73 mm (15.91" x 13.78" x 2.87")
• Set in packaging weight: 2.8 kg (6.17 lbs)
• Transmitter input voltage: 2.0 - 4.35 V
• Transmitter input current: < 300 mA
• Transmitter power supply: 2 AA batteries 1.5 V or BA 70 rechargeable battery pack
• Occupied bandwidth: 200 kHz
• Transmit power (radiated): Audio link: 10 mW ERP
• Transmitter dimensions: 63 x 80 x 20 mm (2.48" x 3.15" x 0.79")
• Transmitter weight: approx. 120 g (0.26 lbs)
• Microphone transducer principle: pre-polarized condenser microphone
• Microphone pick-up pattern: omni-directional
• Microphone sensitivity: 17 mV/Pa
• Microphone max. SPL: 130 dB
• Microphone frequency response: 50 to 18,000 Hz
• Microphone equivalent noise level: 32 dB
• Microphone connector: 3.5 mm jack
• Microphone cable length: approx. 1.60 m (62.99")
• Microphone supply voltage: 7.5 V
