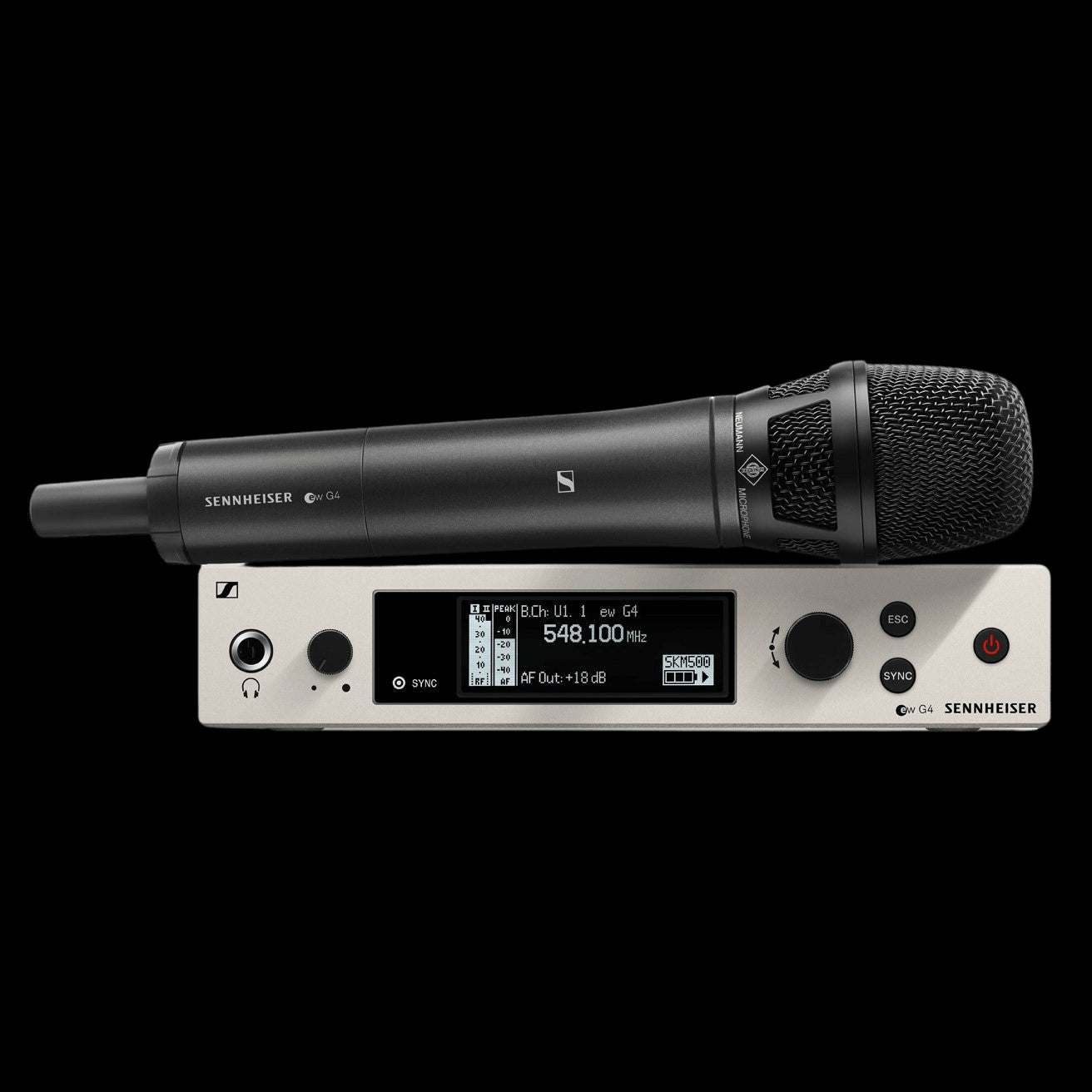

Sennheiser EW 500 G4-KK205-BW Wireless Vocal Set, 626-698MHz

The Sennheiser EW 500 G4-KK205-BW Wireless Vocal Set is an exceptional choice for professional vocalists and sound engineers. Combining Sennheiser's renowned wireless technology with Neumann's KK 205 super-cardioid condenser capsule, this set offers unparalleled sound quality and reliability. Ideal for live stage performances, the EW 500 G4 provides up to 88 MHz bandwidth, 32 compatible channels, and advanced frequency coordination via the Wireless Systems Manager (WSM) software.

Features

• True Diversity Half-Rack Receiver: Ensures stable and reliable signal transmission.
• Intuitive OLED Display: Provides full control and easy monitoring.
• Flexible Wireless Synchronization: Effortless sync between transmitter and receiver via infrared.
• High RF Output Power: Adjustable in three steps (10/30/50 mW) for optimal performance.
• Neumann KK 205 Capsule: Delivers studio-quality sound with excellent pop protection and feedback resistance.
• Ethernet Connection: For advanced frequency coordination using WSM software.
• Wideband FM Modulation: Ensures high-quality audio transmission.
• Pilot Tone Squelch: Can be switched off for flexible operation.

Specifications

• Modulation: Wideband FM
• Frequency Ranges: 470-558 MHz, 520-558 MHz, 558-608 MHz, 558-626 MHz, 606-678 MHz, 626-698 MHz, 718-790 MHz, 790-865 MHz, 806-810 MHz, 925-937.5 MHz
• Receiving Frequencies: Max. 3520, adjustable in 25 kHz steps
• Switching Bandwidth: Up to 88 MHz
• Receiver Principle: True diversity
• Sensitivity: < 2.5 μV for 52 dBA eff S/N
• Adjacent Channel Selection: Typically ≥ 75 dB
• Intermodulation Attenuation: Typically ≥ 70 dB
• Blocking: ≥ 75 dB
• Squelch: 5 to 25 dBμV in steps of 2 dB
• Compander System: Sennheiser HDX
• AF Frequency Response: 80 – 18,000 Hz
• Signal-to-Noise Ratio: ≥ 115 dBA
• Total Harmonic Distortion (THD): ≤ 0.9 %
• AF Output Voltage: 6.3 mm jack socket (unbalanced): +12 dBu, XLR socket (balanced): +18 dBu
• Power Supply: 12 V DC
• Current Consumption: 350 mA
• Temperature Range: -10 °C to +55 °C
• Receiver Dimensions: Approx. 202 x 212 x 43 mm
• Receiver Weight: Approx. 980 g
• Transmitter Dimensions: Approx. Ø 50 x 265 mm
• Transmitter Weight: Approx. 450 g (including batteries)
• Capsule Sensitivity: 2.8 mV/Pa
• Capsule Sound Pressure Level: 150 dB SPL
• Capsule Pick-up Pattern: Super-cardioid
• Capsule Signal-to-Noise Ratio: 70 dB
