Sennheiser EW 500 BOOM G4-BW Wireless Pro Camera Plug-on Transmitter Set, 626-698MHz

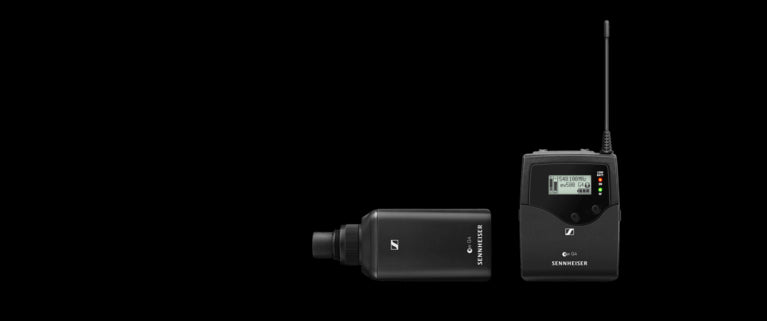

The Sennheiser EW 500 BOOM G4-BW is a versatile and professional wireless system designed for high-quality film sound, interviews, and recording applications. With its rugged construction, easy setup, and flexible wireless synchronization, it offers exceptional sound quality and reliability. The system includes a camera receiver and a plug-on transmitter with 48V phantom power, making it adaptable for various microphones and recording scenarios.

Features

• Rugged All-in-One System: Ideal for professional interviews and recording.
• Professional Sound Quality: Ensures broadcast-quality audio.
• Easy Setup: Quick and simple to configure.
• Flexible Wireless Synchronization: Infrared synchronization between transmitter and receiver.
• Phantom Power: 48V phantom power for condenser microphones.
• Wide Bandwidth: Up to 88 MHz bandwidth with up to 32 channels.
• Extended Range: Operates up to 100 meters (330 feet).
• Increased RF Output Power: Adjustable between 10/30/50 mW.
• Long Battery Life: Up to 8 hours of operation time.

Specifications

• Modulation: Wideband FM
• Frequency Range: 626-698 MHz
• Receiving Frequencies: Max. 3520 frequencies, adjustable in 25 kHz steps
• Frequency Banks: 20 fixed, 6 programmable
• Switching Bandwidth: Up to 88 MHz
• Nominal/Peak Deviation: ±24 kHz / ±48 kHz
• Receiver Principle: Adaptive diversity
• Sensitivity: < 1.6 μV for 52 dBA eff S/N
• Adjacent Channel Selection: Typically ≥ 65 dB
• Intermodulation Attenuation: Typically ≥ 65 dB
• Blocking: ≥ 70 dB
• Squelch: Adjustable in three levels (5 dBμV, 15 dBμV, 25 dBμV)
• Compander System: Sennheiser HDX
• Signal-to-Noise Ratio: Line: ≥ 110 dBA, Phones: approx. 90 dBA
• Total Harmonic Distortion (THD): ≤ 0.9%
• AF Output Voltage: +17 dBu (mono, balanced)
• Audio Output Level Adjustment: 42 dB, adjustable in steps of 6 dB
• Operating Temperature: -10 °C to +55 °C
• Power Supply: 2 AA batteries or BA 2015 accupack
• Current Consumption: Typ. 140 mA (receiver), Typ. 210 mA (transmitter)
• Operating Time: Typically 8 hours
• Receiver Dimensions: Approx. 82 x 64 x 24 mm
• Receiver Weight: Approx. 130 g (with batteries)
• Transmitter Dimensions: Approx. 105 x 43 x 43 mm
• Transmitter Weight: Approx. 195 g (with batteries)
