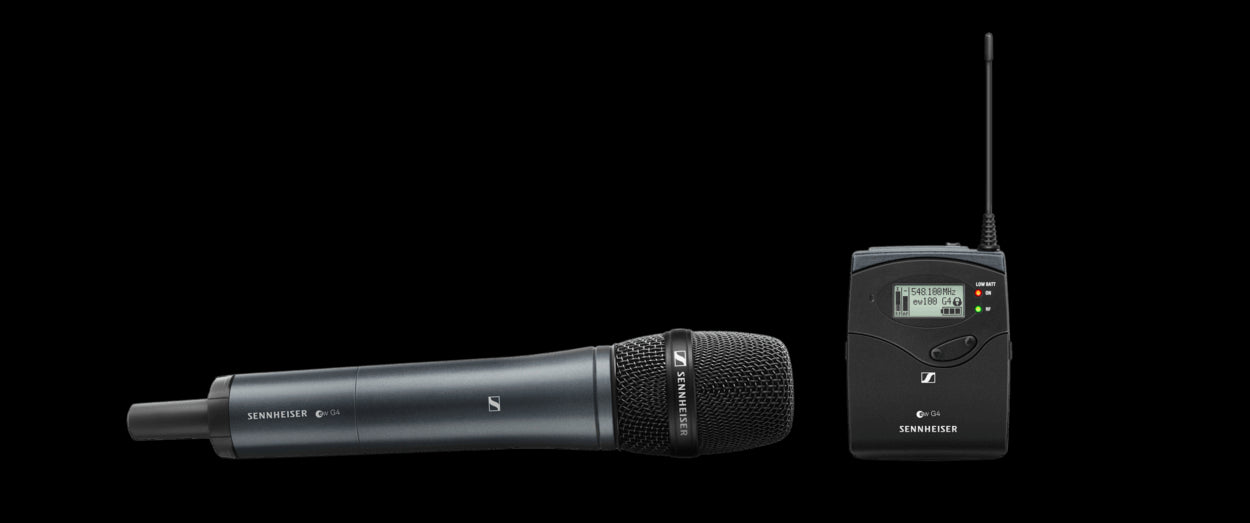

Sennheiser EW 135P G4-B Wireless Camera Handheld Set, 626-668MHz

The Sennheiser EW 135P G4-B Wireless Camera Handheld Set is a robust and versatile wireless microphone system designed for broadcast-quality sound in video and field recording applications. It features a rugged all-in-one design, excellent sound quality, and easy setup, making it an ideal choice for videographers, journalists, and content creators. The system includes a camera-mount receiver and a lightweight handheld transmitter with an MMD 835 cardioid capsule, perfect for capturing crisp audio in various environments.

Features

• Rugged All-in-One System: Provides high flexibility for broadcast-quality sound.
• Excellent Sound and Construction Quality: Ensures reliable performance in any environment.
• Easy to Use: Fast setup time and simple operation.
• Powerful and Reliable Wireless Transmission: Operates up to 100 meters / 330 feet.
• Long Battery Life: Up to 8 hours of operation time.
• Interchangeable Capsule Design: Allows swapping mic capsules with different polar patterns.
• Adaptive-Diversity Reception: Ensures reliable transmission.
• Daylight-Readable LED Displays: Shows reception quality, battery status, and audio level.

Specifications

• Modulation: Wideband FM
• Frequency Ranges: 626-668 MHz
• Receiving Frequencies: Max. 1680, adjustable in 25 kHz steps
• Frequency Banks: 20 fixed, 1 user-programmable
• Switching Bandwidth: Up to 42 MHz
• Nominal/Peak Deviation: ±24 kHz / ±48 kHz
• Receiver Principle: Adaptive diversity
• Sensitivity: < 1.6 μV for 52 dBA eff S/N
• Adjacent Channel Selection: ≥ 65 dB
• Intermodulation Attenuation: ≥ 65 dB
• Blocking: ≥ 70 dB
• Squelch: Low: 5 dBμV, Middle: 15 dBμV, High: 25 dBμV
• Compander System: Sennheiser HDX
• Signal-to-Noise Ratio: ≥ 110 dBA
• Total Harmonic Distortion (THD): ≤ 0.9 %
• AF Output Voltage: 3.5 mm jack socket: +12 dBu (mono, unbalanced)
• Audio Output Level Adjustment Range: 42 dB, adjustable in steps of 6 dB
• Temperature Range: -10 °C to +55 °C
• Power Supply: 2 AA batteries, 1.5 V or BA 2015 accupack
• Nominal Voltage: 3 V battery / 2.4 V rechargeable battery
• Current Consumption: Typical 180 mA, ≤ 25 μA when switched off
• Operating Time: Typically 8 hours
• Dimensions (Receiver): Approx. 82 x 64 x 24 mm
• Weight (Receiver): Approx. 160 g (with batteries)
• Dimensions (Transmitter): Approx. Ø 50 x 265 mm
• Weight (Transmitter): Approx. 450 g (with batteries)
• Microphone Type: Handheld Capsule
• Transducer Principle: Dynamic
• Sensitivity: 2.1 mV/Pa
• Sound Pressure Level: 154 dB SPL
• Pick-up Pattern: Cardioid
• Audio Frequency Response: 80 – 18,000 Hz
