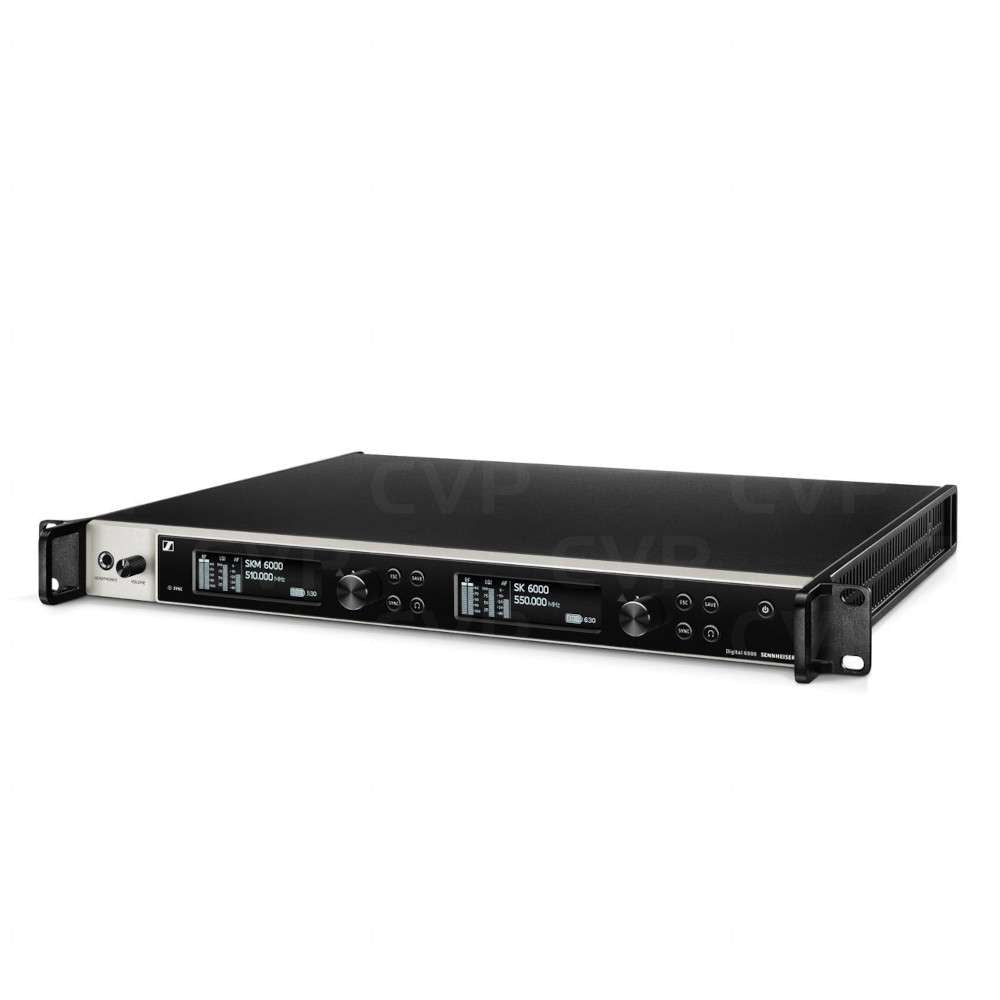

Sennheiser EM 6000 DANTE Wireless Receiver, 2-Channel, EU Power Supply, 630-718MHz

The Sennheiser EM 6000 DANTE is a state - of - the - art two - channel digital wireless receiver designed for live productions and broadcasts in demanding RF environments. With its renowned Long Range mode, true bit diversity, and a wide 244 MHz tuning range, it ensures reliable and high - quality audio transmission. The receiver offers both analog and digital outputs, including XLR, TRS, AES-3, and redundant Dante ™, making it highly versatile for various professional applications. Its high - contrast OLED display and intuitive interface simplify operation, while AES 256 encryption ensures secure transmission. Ideal for touring, theater, broadcasting, and corporate events, the EM 6000 DANTE is a robust and future - proof solution for any stage.

Features

• Renowned Long Range Mode: Ensures superior audio quality and reliability in demanding RF environments.
• True Bit Diversity: Maximizes protection against dropouts by evaluating and combining bits from two parallel reception streams.
• Wide Tuning Range: Offers a 244 MHz tuning range for extreme flexibility in finding available channels.
• Dante Digital Audio: Integrates seamlessly into Dante networks with two RJ-45 connectors.
• High-Contrast OLED Display: Provides clear visibility of vital parameters in any lighting condition.
• AES 256 Encryption: Ensures maximum data security for sensitive installations.
• Automatic Frequency Setup: Simplifies scanning and frequency distribution to connected devices.
• Remote Control via WSM Software: Allows for comprehensive monitoring and configuration during live performances.

Specifications

• Wireless Technology: Digital UHF
• Diversity: True Digital Diversity
• Max Operating Range: 300' / 91.4 m (Typical)
• Receiver Type: Rackmount
• Number of Audio Channels: 2
• Audio I/O: 2x XLR 3-Pin Male Balanced Output, 2x 1/4" TRS Female Balanced Output, 1x XLR (AES3) 3-Pin Male Balanced Output, 1x 1/4" TRS Female Unbalanced Headphone Output
• Network I/O: 1x RJ45 (10/100 Mb/s), 2x RJ45 (1 Gb/s)
• Power Requirements: AC Input
• RF Frequency Band: 470 to 714 MHz
• RF Bandwidth: 244 MHz
• Frequency Step Size: 25 kHz
• Latency: 3 ms
• Modulation: Proprietary
• Mounting Options: Rackmount
• Rackmount Size: 1 RU (Full Rack)
• Antenna: 2x External, BNC (Rear-Mount)
• Gain Range: -10 to +18 dB (1 dB Steps)
• Frequency Response: 30 Hz to 20 kHz ±1.5 dB
• Network Protocols: Dante
• Word Clock I/O: 1x BNC Input, 1x BNC Output
• Impedance: Word Clocks: 75 Ohms, Antennas: 50 Ohms, Headphone Output: 32 Ohms
• RF Principle: Double Superheterodyne
• Approximate RF Sensitivity: -100 dBm
• Adjacent Channel Isolation: >100 dB
• Input Power: 100 to 240 VAC, 50 / 60 Hz
• Display & Indicators: 2x Backlit OLED (AF Level, Frequency, Menu Navigation, Metering, RF Level, Transmitter Battery Status)
• Dimensions: 19 x 1.7 x 14.7" / 483 x 44 x 373 mm
• Weight: 11.2 lb / 5.1 kg
• Package Weight: 14.855 lb
• Box Dimensions (LxWxH): 21.4 x 17.2 x 7"
