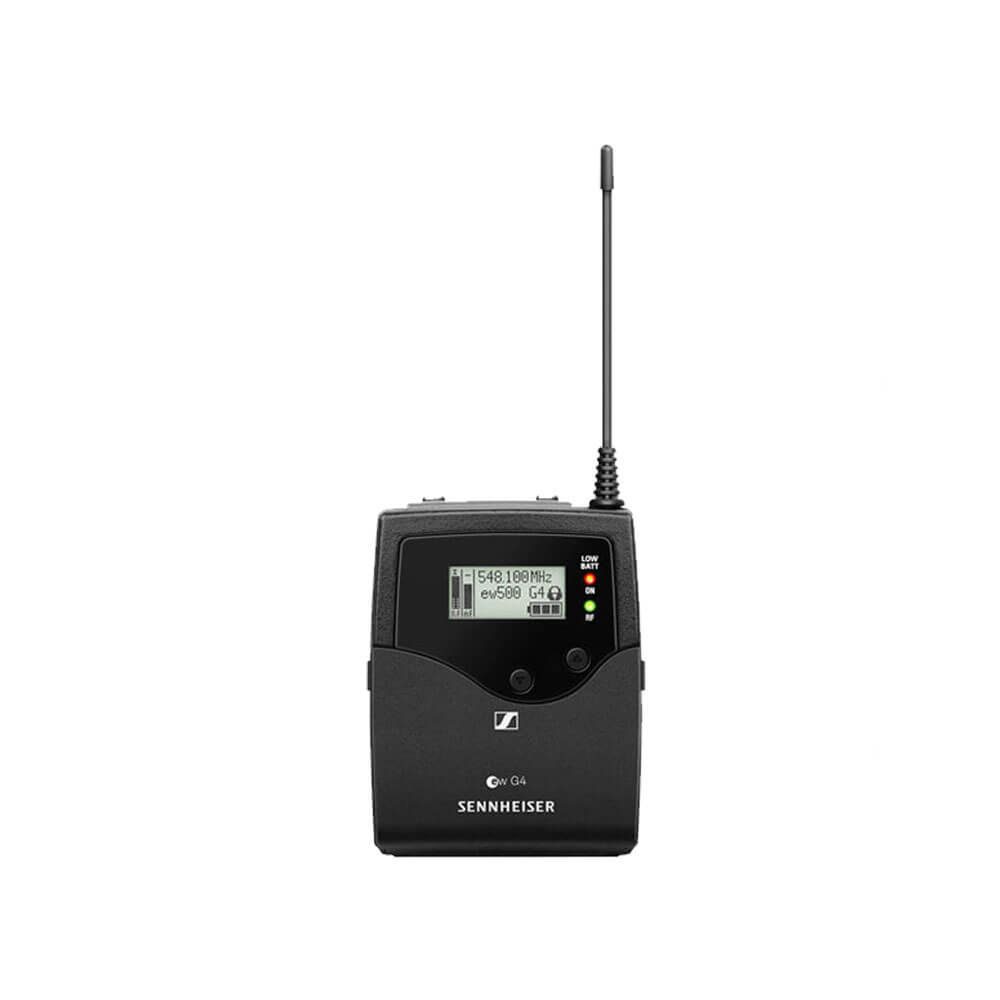

Sennheiser EK 500 G4-BW Pro Camera Receiver, 626-698MHz

The Sennheiser EK 500 G4-BW Pro Camera Receiver is a top-tier camera receiver designed for professional film productions. It offers superior sound quality, robust construction, and easy, flexible wireless synchronization between transmitter and receiver via infrared. With a range of up to 100 meters and up to 8 hours of operation time, it ensures reliable performance for extended periods. Its increased RF output power and wide bandwidth make it a versatile choice for various professional applications.

Features

• Professional sound and excellent construction quality
• Easy to use and fast setup time
• Flexible wireless synchronization between transmitter and receiver via infrared
• Up to 88 MHz bandwidth, supporting up to 32 channels
• Range of up to 100 meters / 330 feet
• Increased RF output power (10/30/50 mW)
• Up to 8 hours of operation time

Specifications

• Modulation: Wideband FM
• Frequency Range: 626-698 MHz
• Receiving Frequencies: Max. 3520, adjustable in 25 kHz steps
• Frequency Banks: 20 fixed frequency banks with up to 32 compatible presets, 6 user banks with up to 32 programmable channels
• Switching Bandwidth: Up to 88 MHz
• Nominal/Peak Deviation: ±24 kHz / ±48 kHz
• Receiver Principle: Adaptive diversity
• Sensitivity: < 1.6 μV for 52 dBA S/N
• Adjacent Channel Selection: Typically ≥ 65 dB
• Intermodulation Attenuation: Typically ≥ 65 dB
• Blocking: ≥ 70 dB
• Squelch: Low: 5 dB μV, Middle: 15 dB μV, High: 25 dB μV
• Pilot Tone Squelch: Can be switched off
• Compander System: Sennheiser HDX
• Signal-to-Noise Ratio: Line: ≥ 110 dBA, Phones: approx. 90 dBA
• Total Harmonic Distortion (THD): ≤ 0.9%
• AF Output Voltage: 3.5 mm jack socket: +17 dBu (mono, balanced)
• Audio Output Level Adjustment Range: 42 dB, adjustable in steps of 6 dB

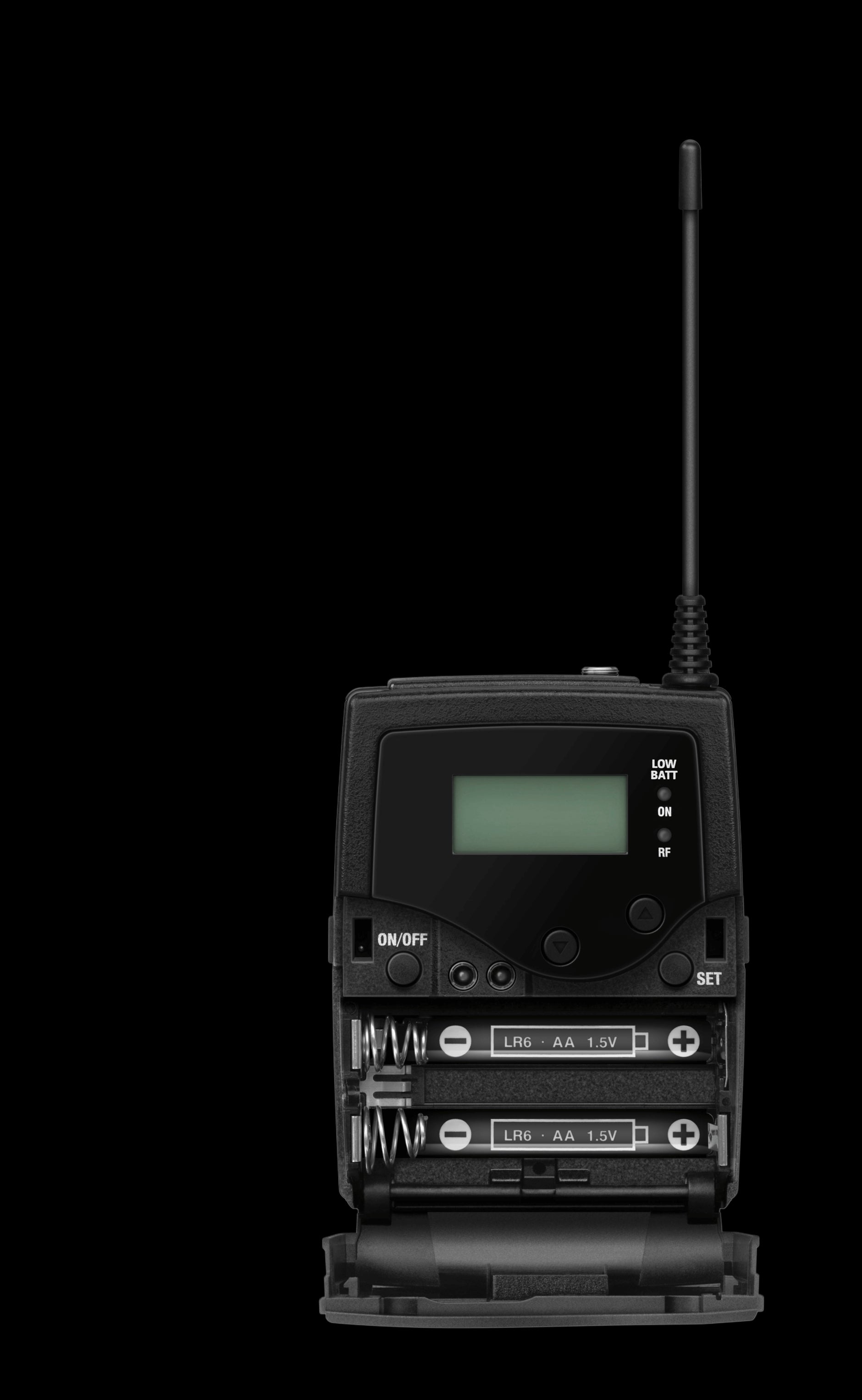

• Power Supply: 2 AA batteries or BA 2015 accupack
• Nominal Voltage: 3 V battery / 2.4 V rechargeable battery
• Current Consumption: Typical 140 mA, ≤ 25 μA when switched off
• Operating Time: Typically 8 hours
• Dimensions: Approx. 82 x 64 x 24 mm
• Weight: Approx. 130 g (including batteries)
• Operating Temperature Range: -10 °C to +55 °C
