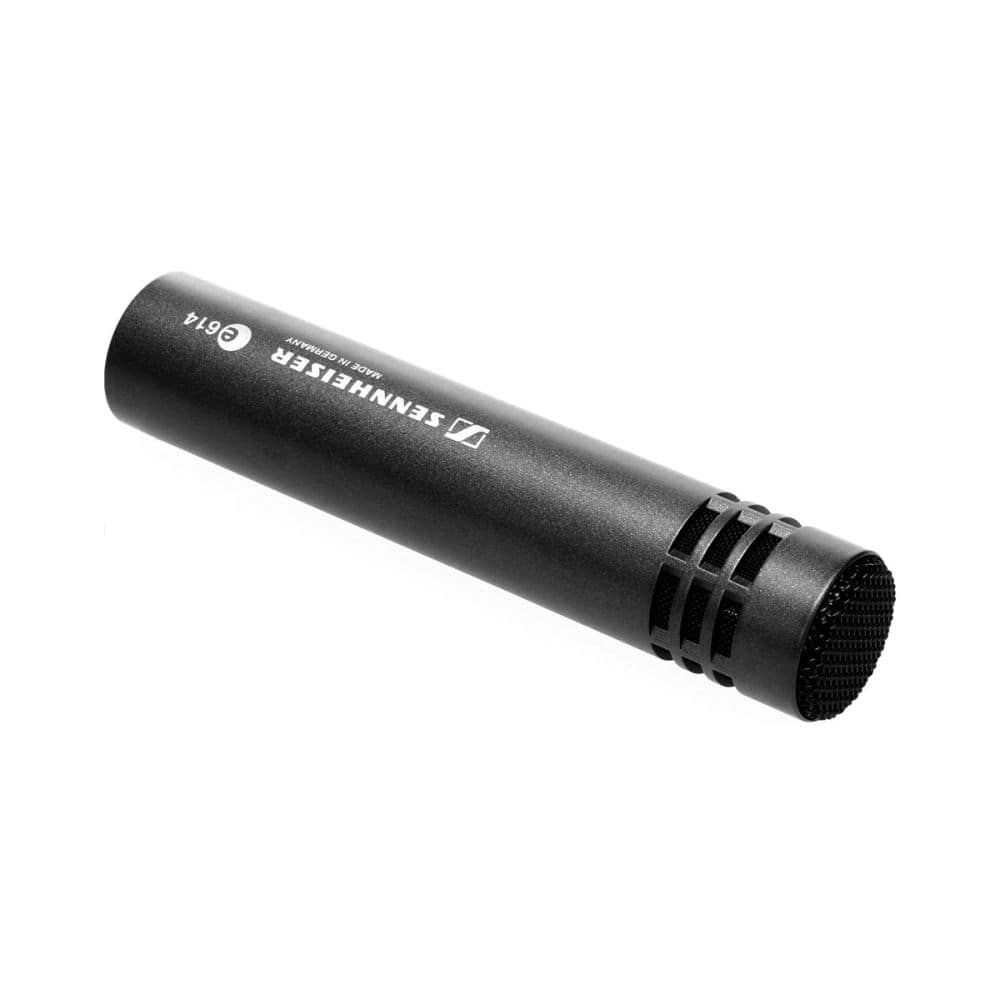

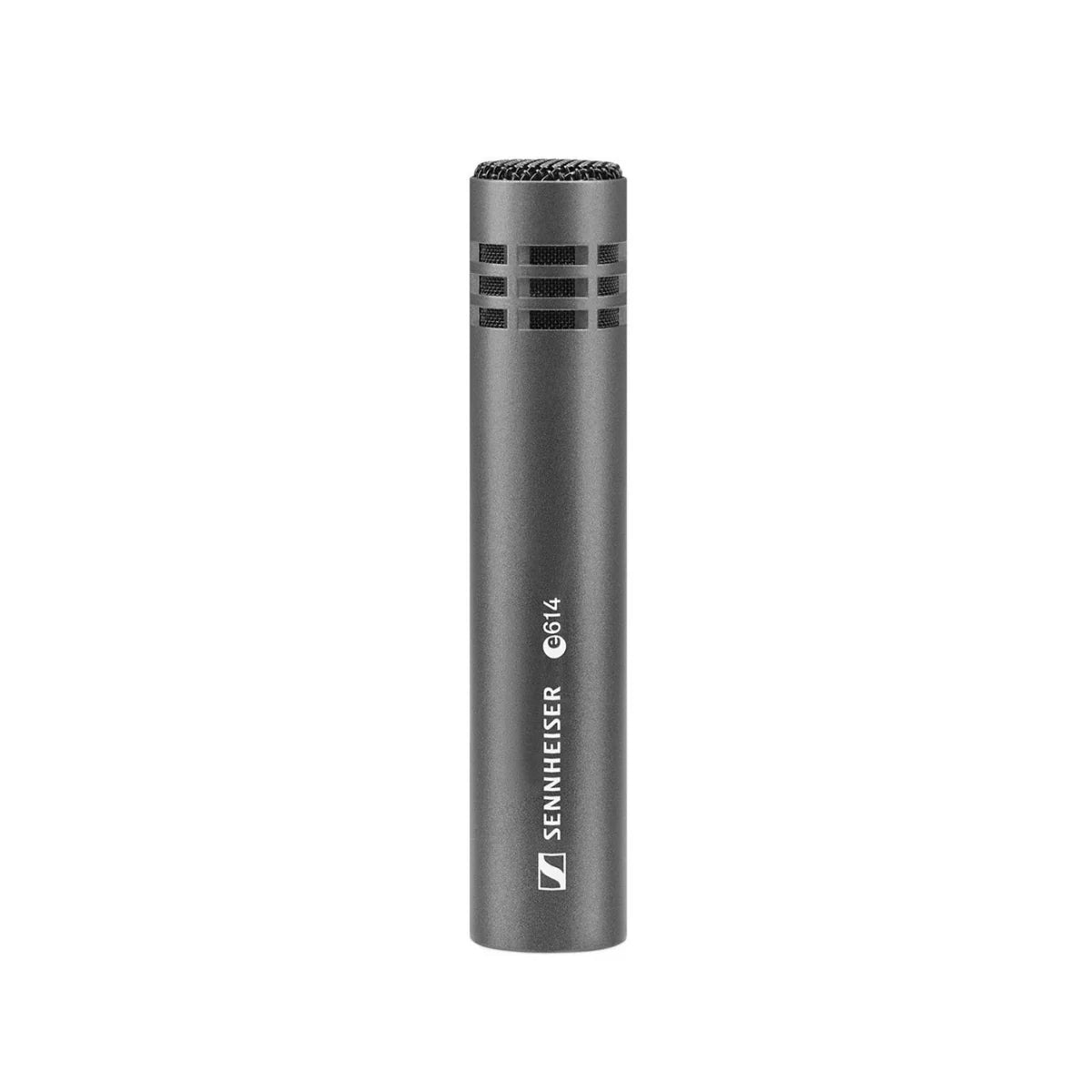

Sennheiser E 614 Super Cardioid Instrument Microphone

The Sennheiser E 614 Super Cardioid Instrument Microphone is a high - performance condenser microphone designed for demanding instrument recordings and live performances. With its super - cardioid pattern, it effectively rejects incidental rear noise while providing excellent directivity across the entire frequency range. Ideal for woodwind, strings, percussion setups, and home recording, the E 614 offers a full, natural sound with high maximum sound pressure level handling and a wide frequency response. Its compact size and rugged design make it a reliable choice for both stage and studio environments.

Features

• Rugged Design: Built to withstand the rigors of live performances and demanding recording sessions.
• Effective Rear Noise Rejection: Super-cardioid pattern minimizes off-axis noise for clear, focused sound.
• Excellent Directivity: Maintains consistent directivity across the whole frequency range.
• Full, Natural Sound: Delivers a rich and natural audio quality, ideal for various instruments.
• High Maximum SPL: Handles high sound pressure levels up to 139 dB without distortion.
• Wide Frequency Response: Covers a broad frequency range from 40 Hz to 20,000 Hz, suitable for a variety of instruments.
• Compact Size: Fits comfortably into tight setups, making it perfect for drumset overhead miking and percussion.

Specifications

• Transducer Principle: Pre-polarized condenser microphone
• Frequency Response: 40 - 20,000 Hz
• Pick-up Pattern: Super-cardioid
• Sensitivity (free field, at 1 kHz): 3 mV/Pa
• Nominal Impedance (at 1 kHz): 50 Ω
• Min. Terminating Impedance: 1 kΩ
• Max. Sound Pressure Level (at 1 kHz): 139 dB
• Equivalent Noise Level (A-weighted): 24 dB(A)
• Equivalent Noise Level (CCIR-weighted): 35 dB
• Phantom Powering: 12 - 48 V

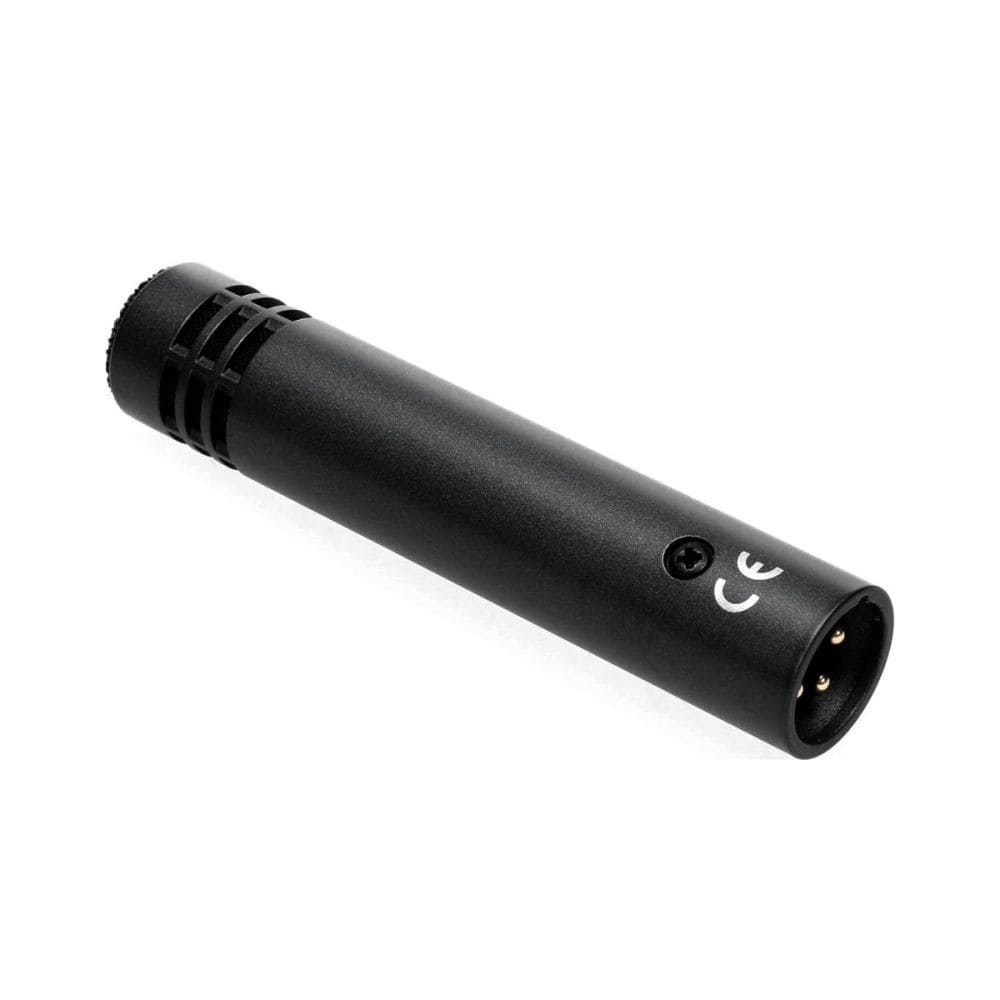

• Connector: XLR-3
• Dimensions: ⌀ 20 x 100 mm
• Weight: 93 g
