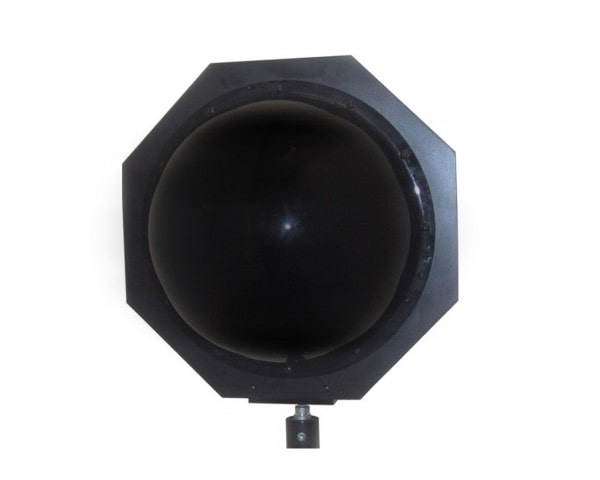

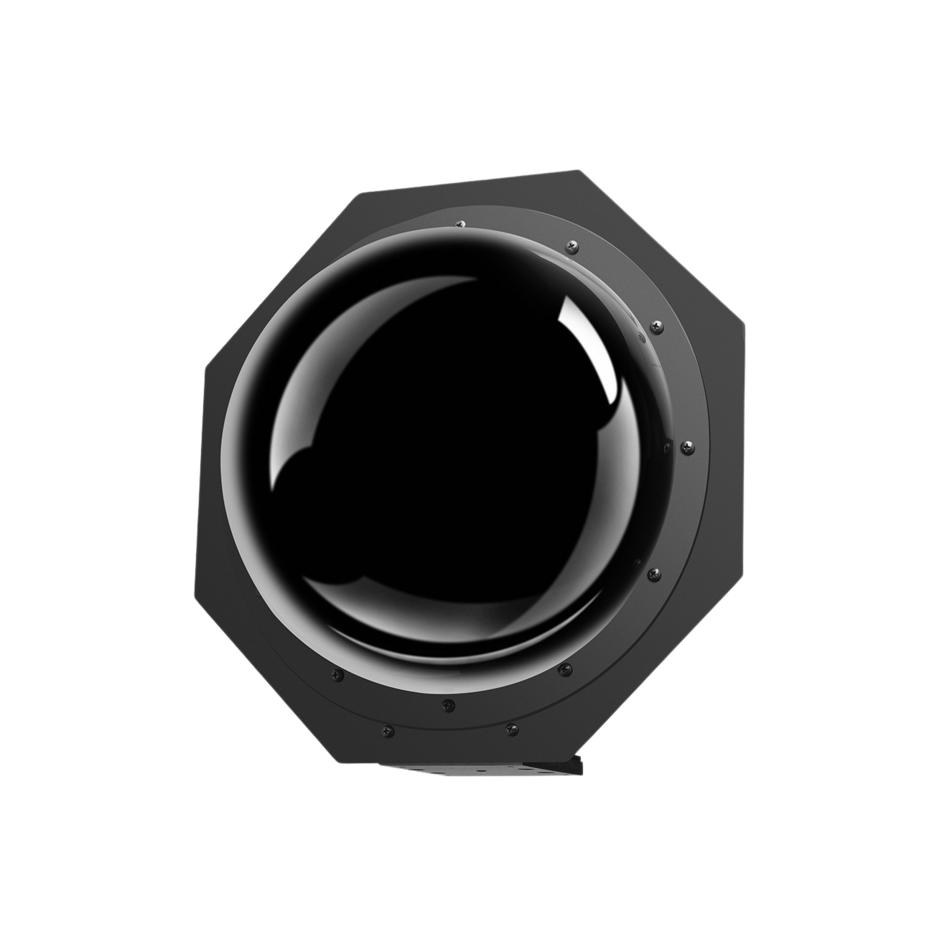

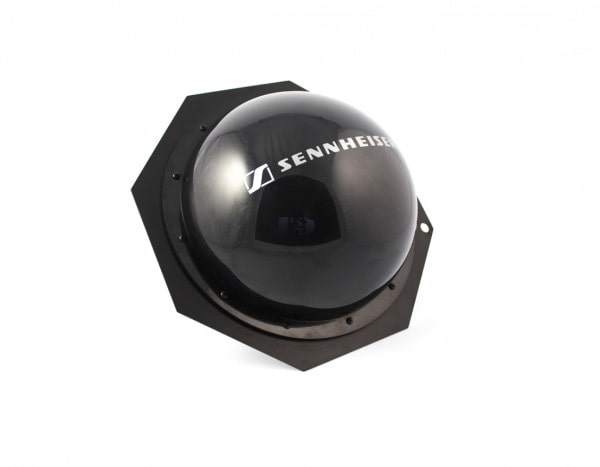

Sennheiser A 5000-CP Helical Antenna, 450-960MHz

The Sennheiser A 5000 - CP Circularly Polarized Helical Antenna is designed to enhance the performance of wireless microphones and monitor systems by providing a stronger and more reliable RF signal over long distances. Operating on a wide - band UHF frequency range of 450 - 960MHz, this antenna is versatile and compatible with most UHF wireless systems. Its circularly polarized design significantly reduces interference and drop - outs, especially when used with non - diversity wireless systems. The antenna 's highly directional nature, with a 40 - degree beam angle, minimizes intermodulation and interference while maximizing range.

Features

• Wide-Band UHF Frequency: Operates on a frequency range of 450 - 960MHz, making it compatible with most UHF wireless systems.
• Circularly Polarized Design: Reduces interference and drop-outs for non-diversity wireless systems.
• High Directionality: Features a 40-degree beam angle to minimize intermodulation and interference.
• Passive Performance: Achieves great range without the need for active amplification.
• Durable Construction: Built with a Lexan plate and stainless steel hardware for robust use.
• Indoor and Outdoor Use: Suitable for various environments, including commercial applications.

Specifications

• Antenna Type: Circular Polarized Helical
• Bandwidth: 450 - 960 MHz
• Gain: min. 8dBi
• Beam Angle: 40 degrees
• Connector Type: N (female)
• Mount: Lexan Plate 3/8-16 Helicoil
• Dimensions: 101 x 93 x 9.5 mm
• Weight: 1.35 kg
• Package Weight: 3 kg
• Box Dimensions (LxWxH): 419 x 406 x 330 mm
• Radome Depth: 140 mm
• Ground Plate Diameter: 356 mm
• SWAR: <1.5:1
• Power Handling Capability: 50 W
• Radome Material: Black Acrylic
• Element: Copper
• Element Support: Lexan
• Hardware: Stainless Steel
