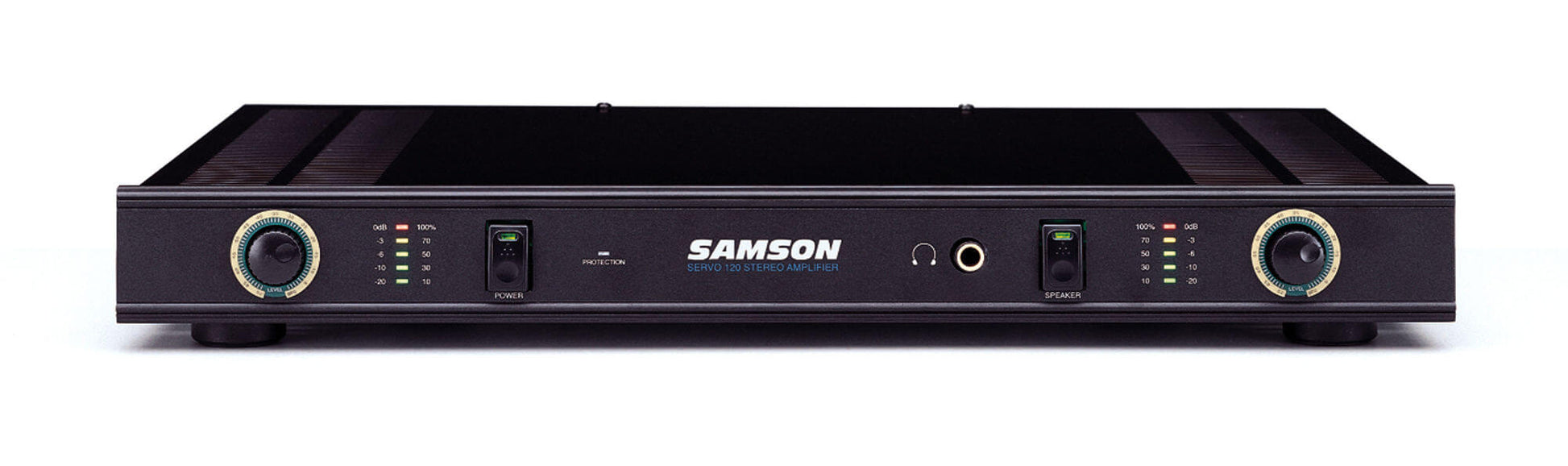

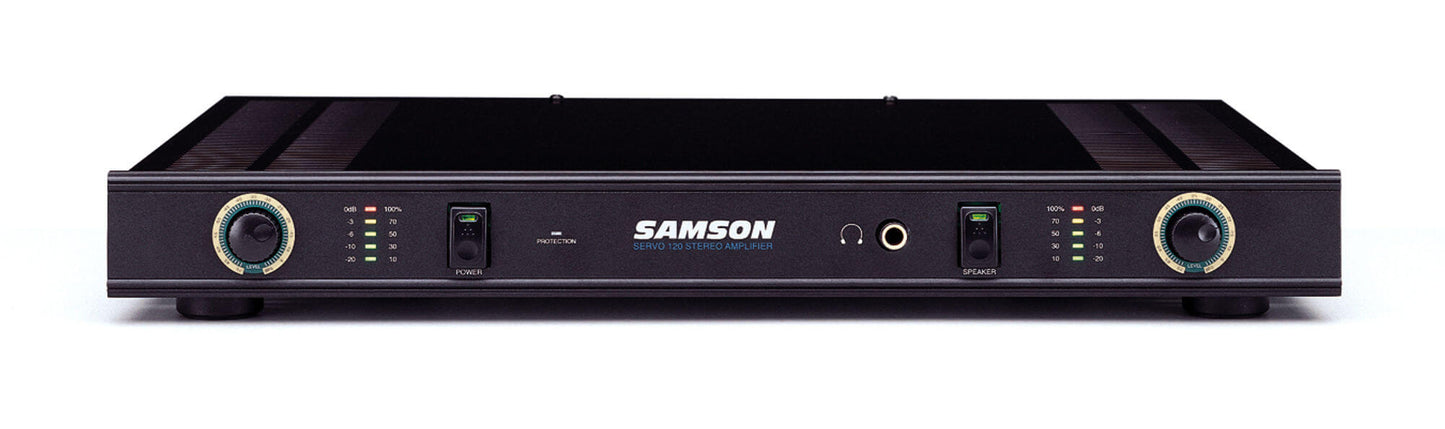

Samson Servo 120a: 1U Reference Amplifier, 2x60W at

The Samson Servo 120a is a powerful and compact stereo power amplifier designed to deliver reference-class audio performance. Ideal for studio monitoring, live sound reinforcement, and home theater applications, it features a convection-cooled design for quiet operation and a robust toroidal transformer power supply for reliable performance.

Features

• Reference-Class Audio Performance: Delivers high-quality sound for professional audio applications.
• Compact Design: Single-space 1U rackmount amplifier that fits easily into any setup.
• Power Output: Provides 60 watts per channel at 4 ohms or 120 watts in bridged mode at 8 ohms.
• Intuitive Front Panel: Features independent left and right channel input level controls, 10-segment LED meters, and a protection LED.
• Headphone Jack: Includes a convenient headphone jack with a speaker on/off switch for private monitoring.
• Convection-Cooled: Fanless design ensures quiet operation, making it suitable for studio environments.
• Bipolar Design: Enhances reliability and audio fidelity, suitable for various applications including recording studios and live events.

Specifications

• Output Power: 60 watts per channel at 4 ohms, 120 watts at 8 ohms bridged mono
• Input Types: 1/4-inch balanced phone jack and RCA inputs
• Frequency Response: 10 Hz - 20 kHz ±0.5 dB
• Signal to Noise Ratio: 105 dB
• Dimensions: 444mm x 292mm x 44mm
• Weight: 7 kg
• Cooling: Convection-cooled design with no fan noise
• Protection Features: Overheating and over-current protection circuitry
