Samson S-Zone 4-Channel Mixer with Ducking and CD/Line Inputs

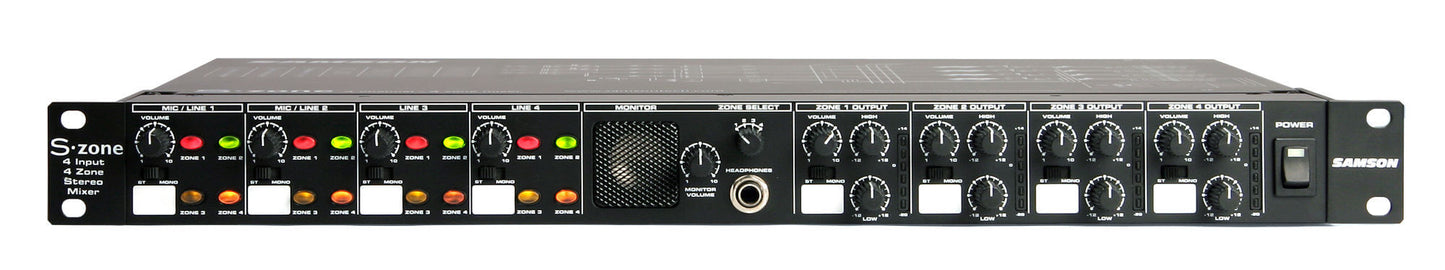

The Samson S-Zone is a versatile 4-channel, 4-zone stereo mixer designed for system installers who require efficient audio control across multiple zones. This compact, rack-mountable unit features a user-friendly front panel, making it easy to assign audio sources to different zones with just the push of a button.

Features

• 4-Channel Control: Manage up to four audio zones from a single unit, perfect for commercial installations.
• Ducking Feature: Automatically lowers the volume of background music when announcements are made via the microphone inputs.
• Multiple Inputs: Includes two balanced mic inputs and four stereo aux/line inputs for flexible connectivity.
• Independent EQ Controls: Each zone output features independent 2-band equalization for tailored sound adjustments.
• Onboard Monitoring: Equipped with a built-in speaker and headphone output for real-time monitoring of any selected zone.
• Easy Zone Assignment: Front panel buttons allow quick assignment of inputs to any of the four output zones.
• Compact Design: Fits in a single rack space, ideal for installations with limited space.

Specifications

• Input Impedance Mic: 600Ω XLR balanced
• Input Impedance Line: 22K Ω
• Max Input Level Mic: -14 dBV balanced
• Max Input Level Line: +24 dBV
• Maximum Gain Mic: 60 dB
• Maximum Gain Line: 26 dB
• Output Level: +17 dBV max.
• Output Impedance Balanced: 200 Ohms
• Output Impedance Unbalanced: 100 Ohms
• Max. S/N Ratio: 96 dB
• THD: <0.02%
• CMRR: >52 dB (Mic)
• Phantom Power: +15 VDC
• Tone Controls: LOW +/- 15 dB at 100 Hz / HIGH +/- 15 dB at 10 kHz

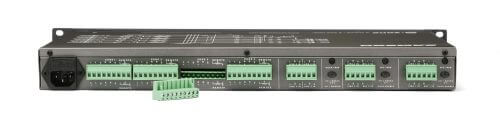

• Inputs: 6 PIN Euroblock
• Outputs: 9 PIN Euroblock
• Power Consumption: 5 Watts
• Dimensions: 482mm x 190mm x 44mm
• Weight: 2.31kg
