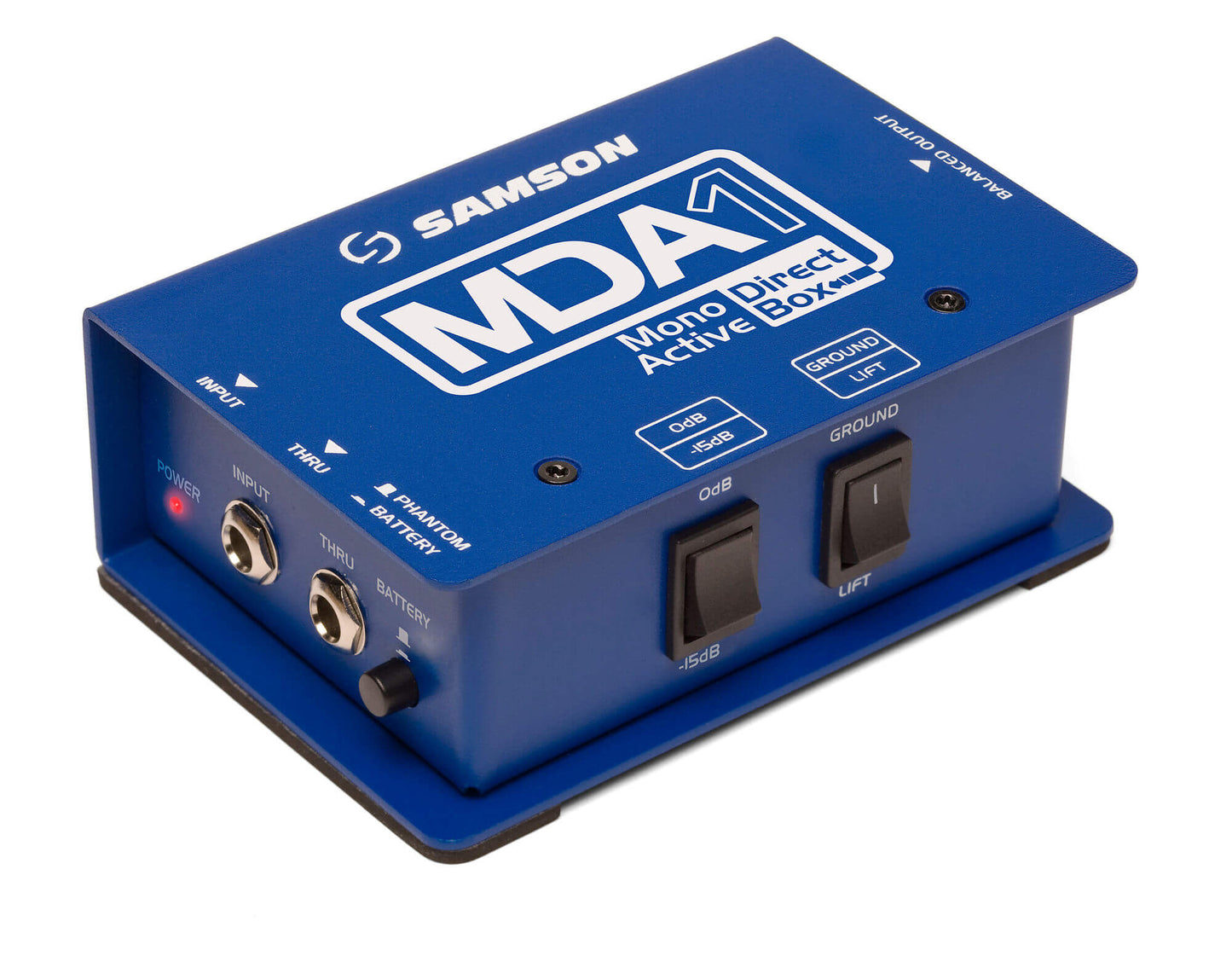

Samson S-Max MDA1: Mono Active Direct Box with Attenuation & Power.

The Samson S-Max MDA1 Mono Active Direct Box is engineered for high-performance audio applications, combining premium sound circuitry with a robust, roadworthy design. Ideal for live sound and recording, it provides clean, balanced connections for guitars and basses, ensuring the integrity of your audio signal.

Features

• Premium Sound Circuitry: Ensures high-quality signal transmission with minimal distortion.
• Roadworthy Construction: Housed in a durable 14-gauge steel chassis, built to withstand the rigors of live performances.
• Flat Frequency Response: Delivers an even frequency response from 18Hz to 35kHz, preserving the nuances of high impedance instruments.
• 2-Position Attenuation Switch: Allows adjustment between 0dB and -15dB to accommodate various signal levels.
• Thru Jack: Enables sending the input signal to an amplifier or monitor without affecting the original audio, ideal for in-ear monitoring setups.
• Power Options: Operates on 48V phantom power or a 9V battery for versatility in different environments.
• Balanced XLR Output: Provides a clean signal less susceptible to noise, allowing for longer cable runs.

Specifications

• Frequency Response: 18Hz to 35kHz
• Maximum Input: +2dBu (9 Volt Battery)
• Dynamic Range: 105dB @ Balanced Output
• Noise Floor: -98dB (Pad Off)
• Total Harmonic Distortion: < 0.05% from 18Hz to 35kHz
• Input Impedance: 1M Ohms
• Output Impedance: 200 Ohms

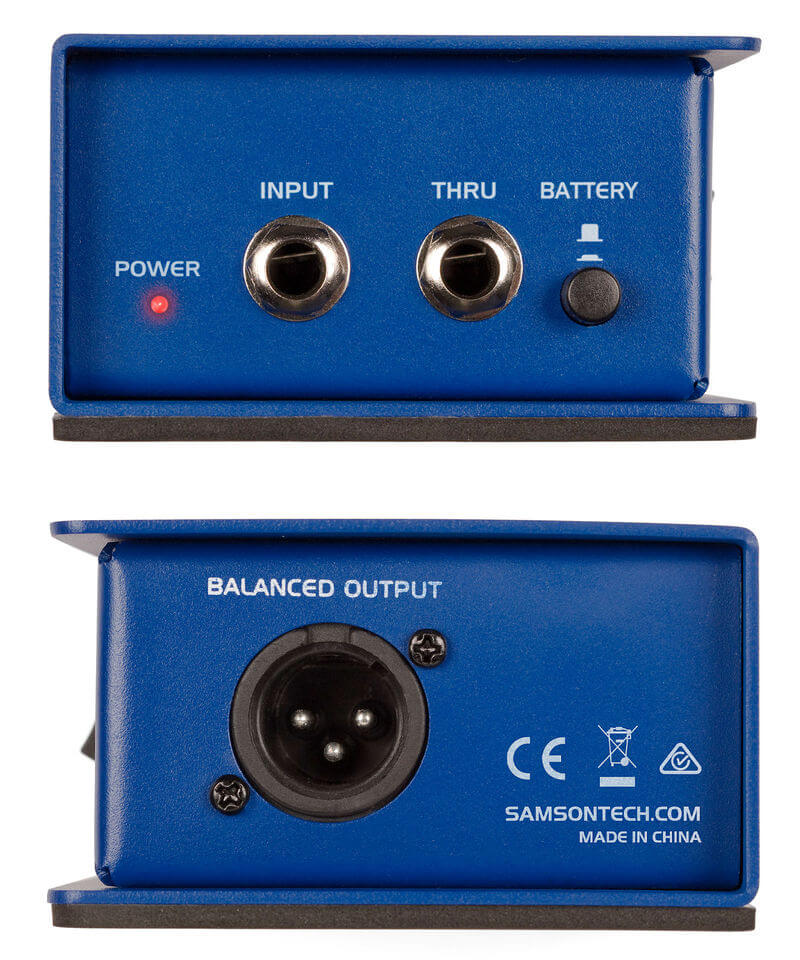

• Connectors: 1/4-inch Phone Jack (unbalanced In & Thru), XLR balanced Output
• Construction: 14-gauge steel chassis
• Dimensions: 127 x 86 x 50 mm
• Weight: 0.611 kg
