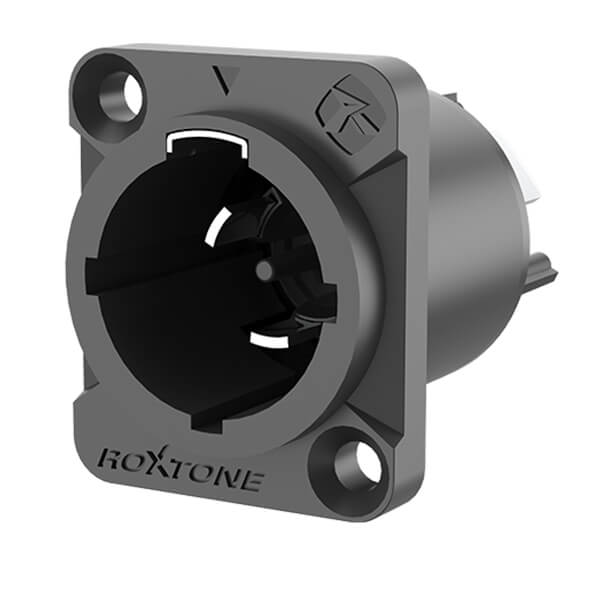

ROXTONE TRUE1 20A Waterproof Connector - IP65 Rated, 250V AC

The ROXTONE TRUE1 Output Chassis is a high-performance, lockable 3-pin AC connector designed for demanding applications such as LED screens and lighting equipment. With its robust construction and IP65 rating, this connector provides excellent protection against dust and water ingress, ensuring reliable operation in challenging environments.

Features

• Lockable Design: Unique 3-pin connector that securely locks in place, ideal for professional use.
• IP65 Protection: Dust and water-resistant when mated, making it suitable for outdoor and industrial applications.
• Fast and Easy Twist Lock System: Simplifies connection and disconnection, saving time during setup.
• Flame Retardant Materials: Constructed from flame-retardant materials for enhanced safety.
• Robust Construction: Made from a glass fiber composite material, ensuring durability and reliability.
• Brand Engraving: ROXTONE branding engraved on the shell for authenticity.
• Patent Protected: Innovative design protected by patent rights.

Specifications

• Housing Material: PA66 30% GR
• Contact Material: Bronze/Brass
• Contact Plating: Silver
• Dust Cover Material: Silicone
• Sealing Ring Material: Silicone
• Number of Contacts: 3
• Rated Current per Contact: 20 A rms
• Rated Voltage: 250 V AC
• Protection Class (Mated): IP65
• Flammability Rating: UL V-0
