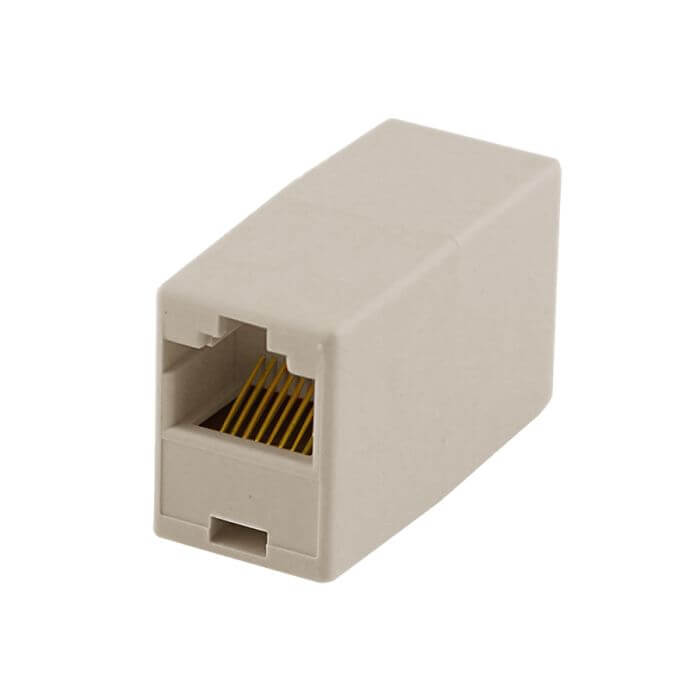

RJ45 Female to Female Barrel Connector

The RJ45 Female to Female Barrel Connector is a high-performance networking solution designed for seamless connectivity between two RJ45 cables. Ideal for extending connections in various applications, this coupler is compatible with Cat5e and supports both T568A and T568B wiring schemes, ensuring flexibility and reliability.

Features

• Dual Colour-Coded Wiring: Features T568A/B wiring pattern for easy identification and installation.
• Rear Termination Field: Allows for straightforward termination of a jack while installed in wall plates or surface mount boxes.
• High Temperature Thermoplastic Housing: Ensures durability and reliability in various environments.
• Low Attenuation Loss: Designed for minimal signal loss, maintaining high performance across connections.
• High Reliability: Built to meet or exceed TIA/EIA Cat5e requirements, ensuring robust performance.

Specifications

• Wiring Schemes: Supports Cat5e T568A/B wiring patterns.
• Housing Material: High temperature thermoplastic.
• Wire Compatibility: Accepts 22-26 AWG solid wire with insulation diameter of 0.4-0.6mm.
• Performance: Low attenuation loss and high return loss.
• Connector Type: RJ45 Female to Female.
