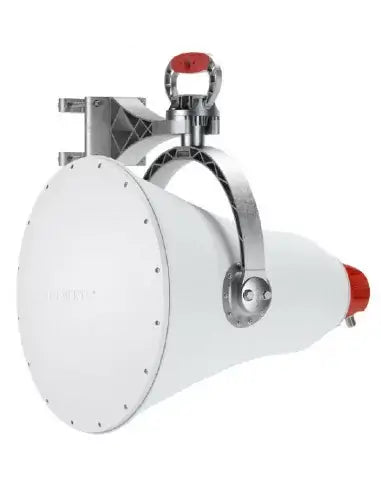

RFelements UltraHorn 24 dBi Carrier Class

The UltraHorn™ CC 5-24 is a high-performance horn antenna designed for wireless networking, offering exceptional gain and directivity with a symmetrical radiation pattern. Its unique design provides remarkable interference rejection, making it ideal for high noise environments and long-distance links without the need for additional shielding.

Features

• High Gain: Achieves 24 dBi gain across an ultra-wideband frequency range of 5180-6400 MHz.
• Symmetrical Beam: Features equal horizontal and vertical beam widths, enhancing performance in dense network environments.
• Zero Side Lobes: Provides impeccable interference rejection, focusing energy only in the desired direction.
• Dual Polarization: Equipped with N-type female connectors for dual linear polarization (H + V), compatible with a variety of radios.
• Easy Installation: Innovative mounting system allows quick and easy adjustments for optimal alignment.

Specifications

• Dimensions: 635 x 572 x 615 mm
• Weight: 8.7 kg
• Frequency Range: 5180 - 6400 MHz
• Gain: 24 dBi
• Azimuth Beam Width: -3 dB: H 11° / V 11°
• Elevation Beam Width: -6 dB H 16° / V 15°
• Front-to-Back Ratio: 40 dB
• VSWR Max: 1.6 (5180-5850 MHz), 1.8 (5850-6775 MHz)
• Environmental Rating: IP55
• Temperature Range: -30°C to +55°C
• Wind Survival: 160 km/h
