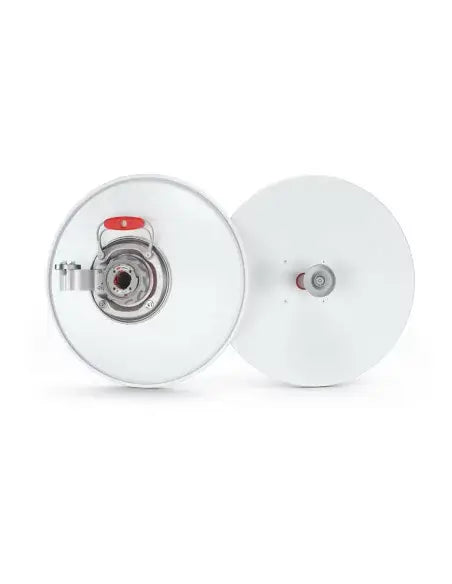

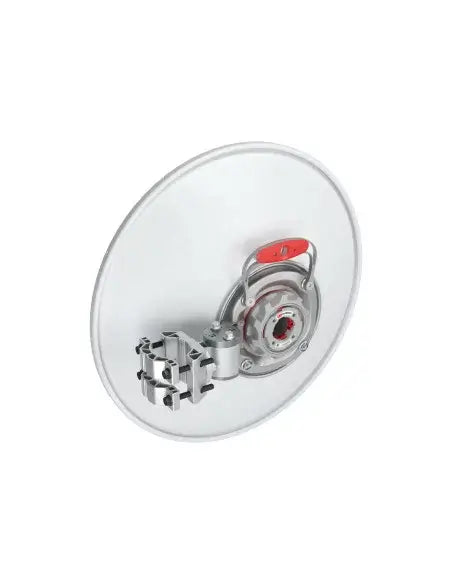

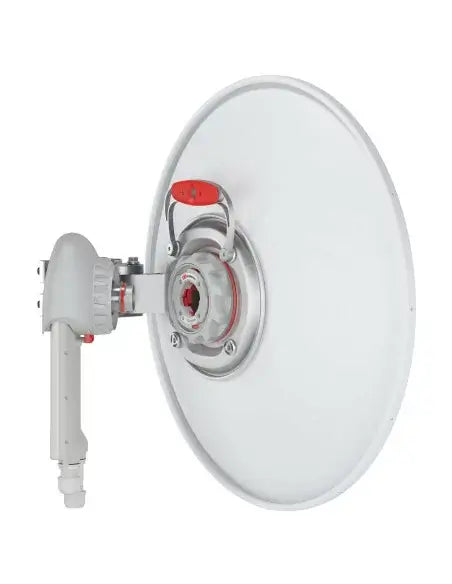

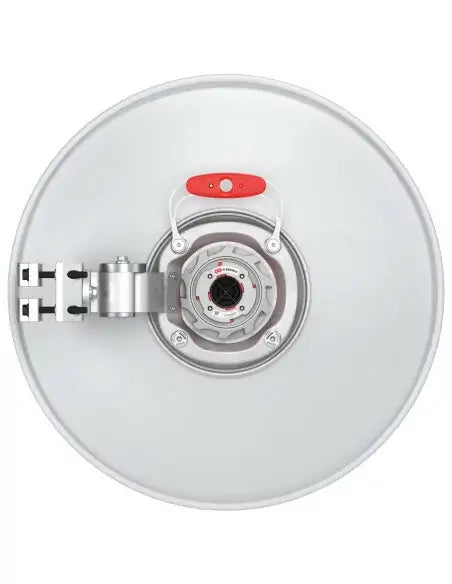

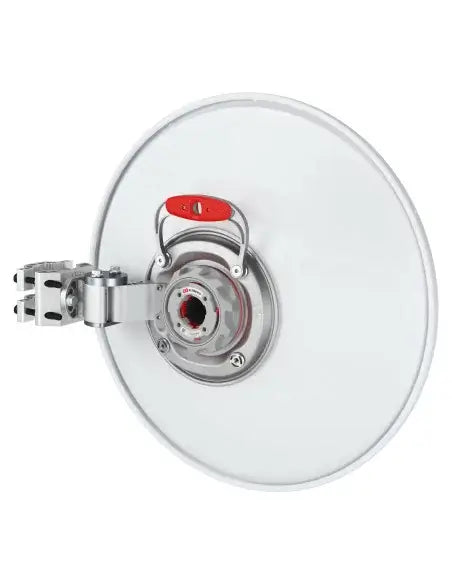

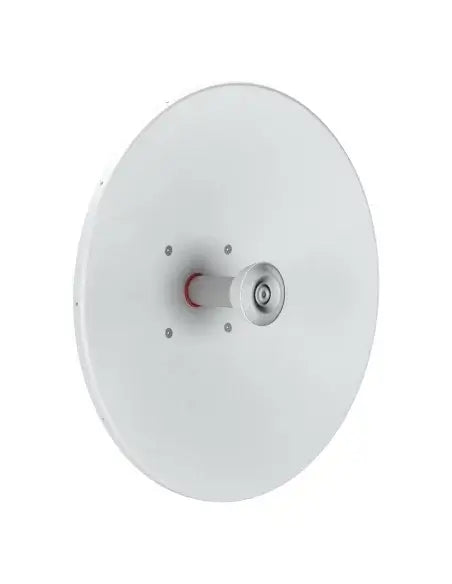

RFelements UltraDish TP 29 Wideband

The RF Elements UltraDish TP 29 Wideband is a high-performance parabolic dish antenna designed for 5 and 6 GHz wireless networks. It provides exceptional gain and high directivity, making it ideal for premium CPE applications. Equipped with the innovative TwistPort™ connector, it ensures easy and efficient radio connections while minimizing signal loss.

Features

• High Gain: Offers a gain of 29 dBi, providing strong signal performance in demanding environments.
• Wideband Performance: Covers both 5 GHz and 6 GHz unlicensed bands for versatile applications.
• TwistPort™ Connector: Proprietary waveguide connector allows for quick and easy radio installation with minimal loss.
• Optimized Directivity: Designed with suppressed side lobes to reduce interference and enhance signal quality.
• Durable Construction: Built from corrosion-resistant materials, ensuring longevity and reliability in various weather conditions.
• Easy Installation: Innovative mounting system allows for quick bracket installation and simple aiming adjustments.

Specifications

• Dimensions: ø618 x H263 mm
• Weight: 4.2 kg
• Gain: 29 dBi
• Frequency Range: 4900 - 7125 MHz
• Connector Type: TwistPort™
• Material: UV Resistant ABS plastic, Aluminium, Stainless Steel
• Enviromental: IP65
• Temperature: -35°C to +60°C
• Wind Survival: 160 km/h
• Polarization: Dual Linear H + V
• Impedance: 50 Ohm
