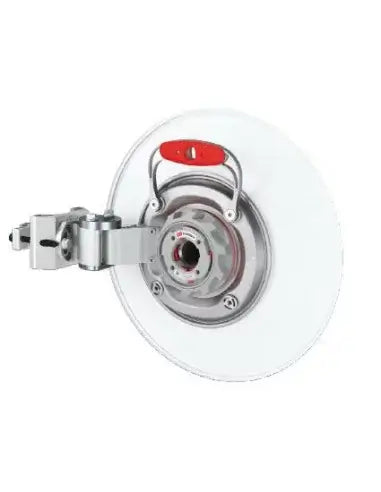

RFelements UltraDish TP 24

The RFelements UltraDish TP 24 is a high-performance parabolic dish antenna designed for 5 GHz wireless networks. It features minimized sidelobes and stable gain across a wide frequency bandwidth, ensuring reliable connectivity for subscriber module applications. The robust aluminum reflector provides a low weight and uniform shape, making it an ideal choice for wireless internet service providers (WISPs) looking to enhance their network performance.

Features

• High Gain: Offers a gain of 24.4 dBi, ensuring strong signal strength and coverage.
• Wide Frequency Range: Operates within 5180 - 6775 MHz, accommodating various wireless applications.
• Minimized Sidelobes: Reduces interference and enhances signal clarity, making it suitable for high-noise environments.
• TwistPort™ Connector: Features a quick-locking waveguide port for easy and lossless radio connection.
• Durable Construction: Made from UV resistant ABS plastic, polycarbonate, aluminum, and stainless steel for long-lasting performance.
• Versatile Mounting: Compatible with poles of 40-80 mm diameter, allowing for flexible installation options.
• IP65 Rated: Ensures protection against dust and water ingress, suitable for outdoor use.
• Lightweight Design: Weighs only 2.7 kg for a single unit, facilitating easy handling and installation.

Specifications

• Dimensions: 503 x 420 x 263 mm
• Weight: 2.7 kg
• Antenna Type: Parabolic Dish
• Gain: 24.4 dBi
• Frequency Range: 5180 - 6775 MHz
• Azimuth Beam Width: -6 dB H 12° / V 11°
• Elevation Beam Width: -6 dB H 11° / V 12°
• Operating Temperature: -40 °C to +60 °C
• Wind Survival: 160 km/h
