RF Elements TwistPort Adaptor for Rocket Prism Gen 2, AirFiber 5XHD

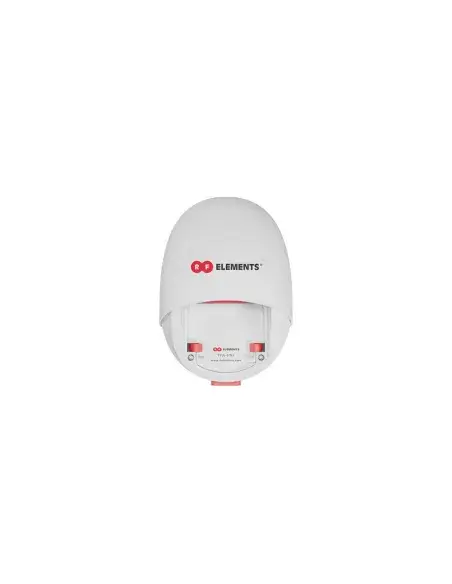

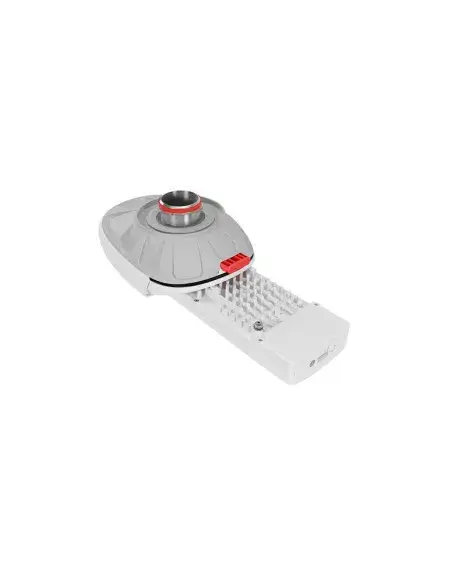

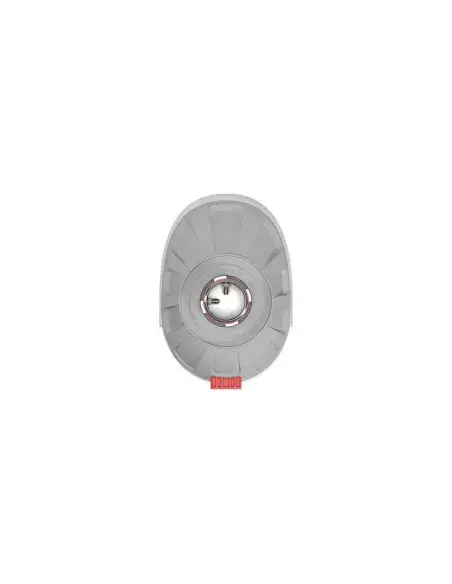

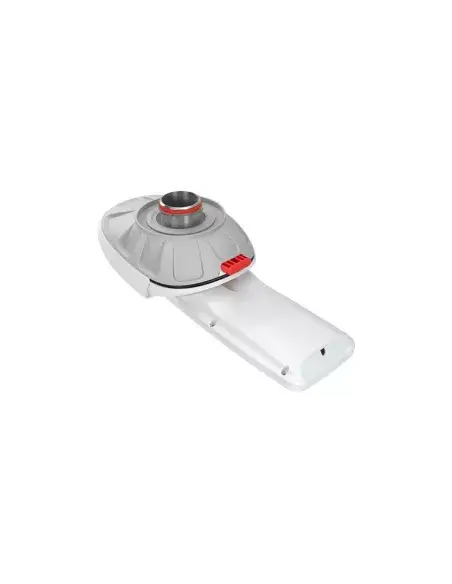

The RF Elements TwistPort Adaptor is designed to seamlessly connect Ubiquiti's Rocket Prism Gen 2, AirFiber 5XHD, and LTU Rocket radios to RF Elements' proprietary TwistPort antennas. This adaptor provides a tool-free installation, ensuring superior performance, noise immunity, and network scalability for wireless internet service providers (WISPs).

Features

• Tool-Free Installation: Allows for easy integration of third-party radios without the need for tools.
• Wide Compatibility: Works with Ubiquiti LTU Rocket, AirFiber 5X, AirFiber 5XHD, Rocket Prism 5AC, and Rocket Prism 5AC Gen 2 radios.
• GPS Antenna Integration: Features a protected space for the GPS antenna, ensuring reliable connectivity and protection against damage.
• Ultra-Wideband Spectrum: Covers a frequency range of 5180-6400 MHz with excellent efficiency and low VSWR.
• Noise Immunity: Designed to reject noise at its source, enhancing the signal-to-noise ratio for improved throughput.

Specifications

• Dimensions: 190 x 132 x 98 mm
• Weight: 0.34 kg
• Antenna Connection: TwistPort - Quick Locking Waveguide Port
• Radio Connection: 2x Slide-On RP-SMA and 1x SMA for GPS
• Flame Rating: UL 94 HB
• Temperature: -40°C to +60°C (-40°F to +140°F)
• Wind Survival: 160 km/h
• Frequency Range: 5180 - 6400 MHz
• Polarization: Dual Linear H + V
• VSWR Max: 1.8
• Impedance: 50 Ohm
