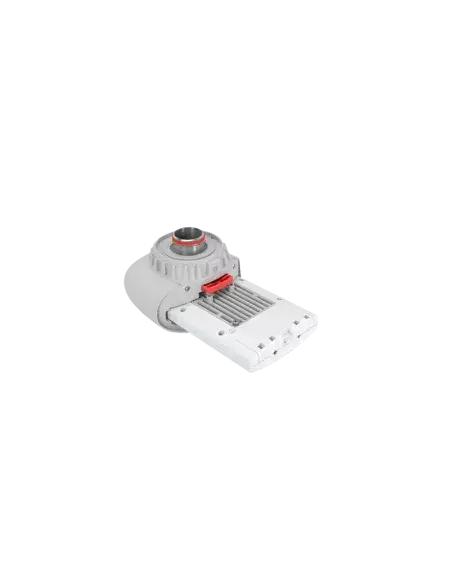

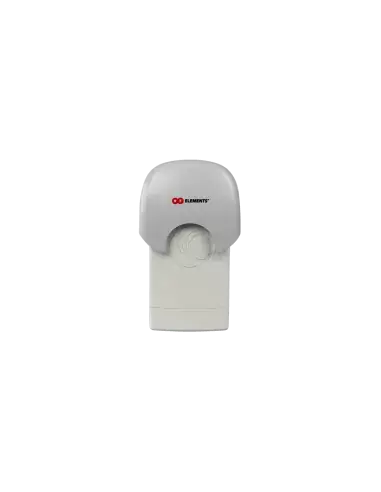

RF Elements TwistPort Adaptor for ePMP 2000

The RF Elements TwistPort Adaptor for ePMP 2000 is designed to seamlessly integrate with Cambium Networks ePMP 2000 AP and ePMP Force 400C radios. This innovative adaptor allows for quick and tool-free connection to any TwistPort antenna, enhancing system scalability and performance while minimizing interference.

Features

• Quick-Locking Waveguide Port: Enables fast and secure connections without the need for tools.
• Compatibility: Works with Cambium Networks ePMP 2000 AP, ePMP Force 400C, and ePMP 4500 radios.
• Noise Immunity: The TwistPort design significantly reduces noise, improving signal quality and throughput.
• Durable Construction: Made from UV stabilized and weather-resistant ABS plastic, ensuring longevity in various environmental conditions.
• Wide Band Spectrum: Covers an ultra-wide band spectrum with well-managed VSWR across the range.

Specifications

• Dimensions: 157 x 154 x 116 mm
• Weight: 0.42 kg
• Antenna Connection: TwistPort™ - Quick-Locking Waveguide Port
• Radio Connection: 2x Slide-On RP-SMA
• Materials: Aluminium Alloy insert, UV stabilized ABS plastic adaptor
• Temperature Range: -40°C to +60°C (-40°F to +140°F)
• Wind Survival: 160 km/h (100 miles/h)
• Frequency Range: 5180 - 6400 MHz
• Polarization: Dual Linear H + V
• VSWR Max: 1.8
• Impedance: 50 Ohm
