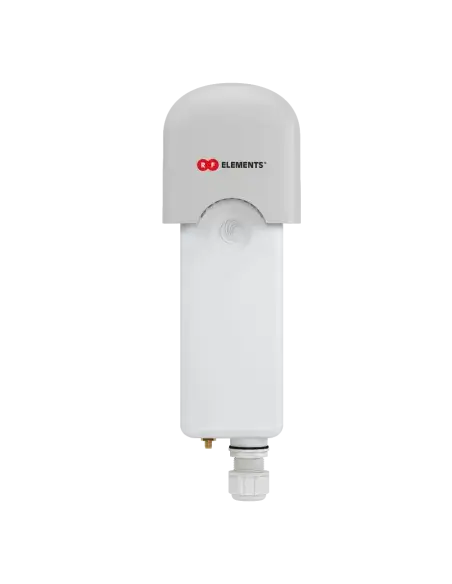

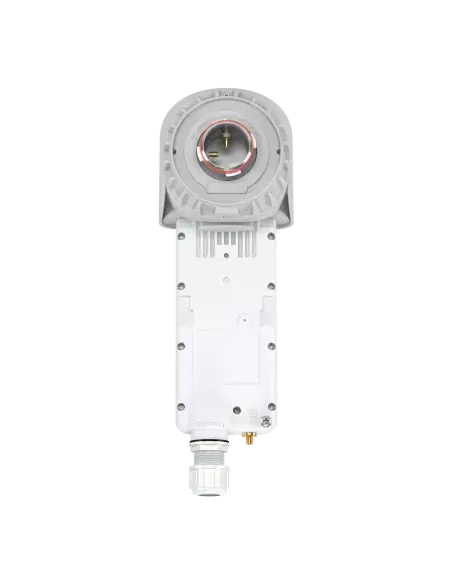

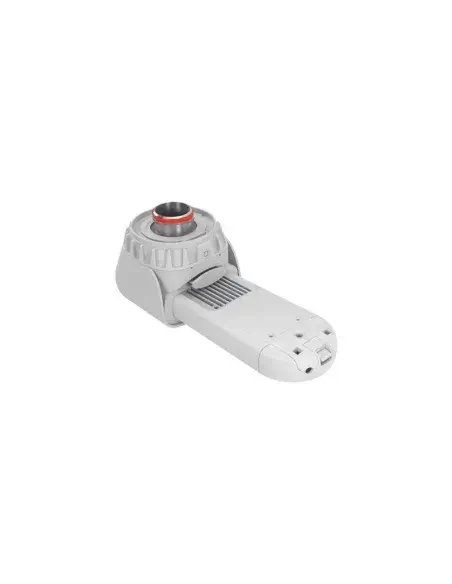

The RF Elements TwistPort Adaptor seamlessly integrates Cambium ePMP connectorised radios into the TwistPort ecosystem, enabling superior performance and scalability for wireless internet service providers (WISPs). Compatible with both ePMP1000 and ePMP3000L radios, this adaptor ensures efficient power delivery and noise immunity, revolutionizing the way service providers build their wireless networks.

Features

• Seamless Integration: Converts 3rd party radio coaxial interface into RF elements proprietary TwistPort waveguide connector.
• Tool-Free Installation: Simplifies the integration process, requiring no tools for setup.
• Compatibility: Works with Cambium Networks ePMP 1000, ePMP Force 300, ePMP 3000L, and PMP 450b radios.
• Wide Frequency Range: Covers an ultra-wideband spectrum from 5180 to 6400 MHz.
• Superior Performance: Provides excellent noise immunity and high signal-to-noise ratio, enhancing overall network efficiency.
• Scalability: Enables WISPs to scale their operations without interference, focusing on business growth.

Specifications

• Dimensions: 130 x 112 x 112 mm
• Weight: 0.4 kg
• Antenna Connection: TwistPort™ - Quick Locking Waveguide Port
• Radio Connection: 2x Slide-On RP-SMA
• Materials: Insert - Aluminium Alloy, Adaptor - UV stabilized and weather resistant ABS plastic
• Flame Rating: UL 94 HB
• Temperature: -40°C to +60°C (-40°F to +140°F)
• Wind Survival: 160 km/h (100 mi/h)
• Polarization: Dual Linear H + V
• VSWR Max: 1.8
• Impedance: 50 Ohm
