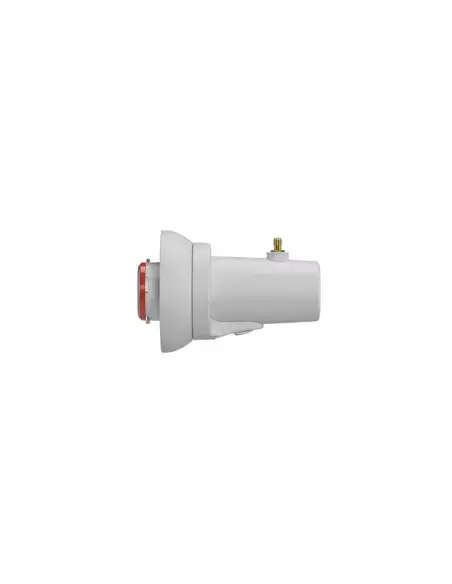

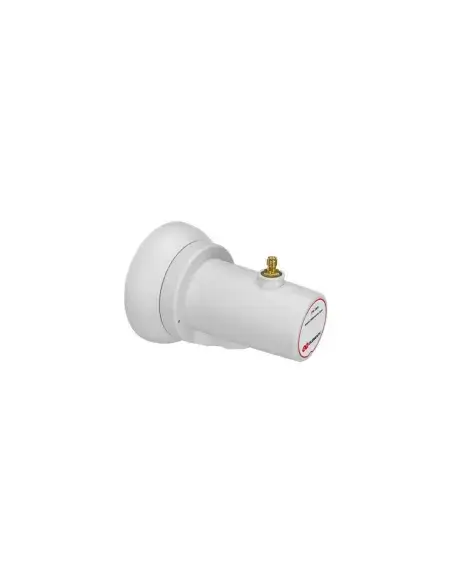

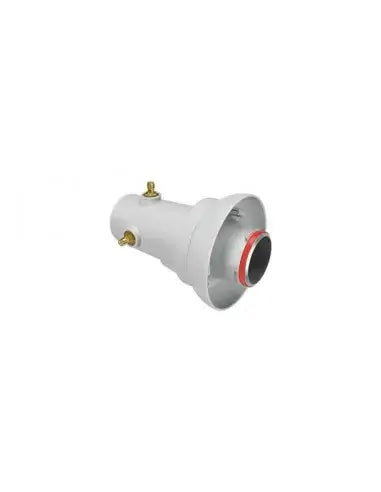

RF Elements TwistPort Adapter with SMA Connectors

The RF Elements TwistPort Adapter with SMA Connectors is designed for seamless integration of third-party radios into RF elements' proprietary TwistPort system. It features dual linear H+V polarization and minimizes loss, ensuring optimal performance for wireless networking applications.

Features

• Dual RP-SMA Female Connectors: Provides compatibility with a wide range of devices.
• Minimized Loss: Designed to reduce connection points and cable loss to the necessary minimum.
• Easy Installation: Tool-free integration of third-party radios into the TwistPort system.
• Wideband Coverage: Supports 5 GHz (5180-6775 MHz) and 6 GHz (5700-7125 MHz) bands for versatile applications.
• Robust Performance: Engineered for high signal integrity and noise immunity.

Specifications

• Dimensions: Diameter 90 x Height 134 mm
• Weight: 0.21 kg
• Connector Type: 2x RP-SMA Female
• Frequency Range: 5180 - 6400 MHz
• Insert Material: Aluminium Alloy
• Flame Rating: UL 94 HB
• Temperature: -40°C to +60°C
• Wind Survival: 160 km/h
• Polarization: Dual Linear H + V
• VSWR Max: 1.8
• Impedance: 50 Ohm
