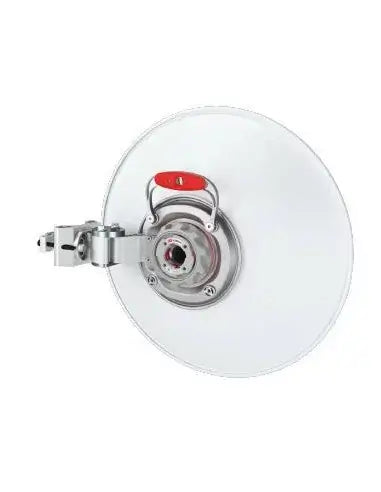

RF Elements RFelements UltraDish TP 27

The RF Elements UltraDish TP 27 is a high-performance parabolic dish antenna designed for subscriber module applications. It features minimized sidelobes, wide frequency bandwidth, and stable gain across both polarizations, ensuring reliable and efficient wireless connectivity.

Features

• High Gain: Provides a gain of 27 dBi for superior signal strength.
• Wide Frequency Range: Operates within the frequency range of 5180 - 6775 MHz.
• TwistPort Connector: Features a quick-locking TwistPort connector for easy and lossless radio connections.
• Durable Construction: Made from UV resistant ABS plastic, polycarbonate, and aluminum for longevity and durability.
• Innovative Mounting System: Designed for easy installation with a wide range of applicable pole diameters (40-80 mm).
• Weatherproof Design: IP65 rating ensures protection against dust and water ingress.
• Lightweight: Weighs only 3.7 kg (8 lbs) per unit, making it easy to handle and install.

Specifications

• Dimensions: Diameter 585 x Height 263 mm
• Weight: 3.7 kg
• Gain: 27.5 dBi
• Frequency Range: 5180 - 6775 MHz
• Environmental: IP65
• Wind Survival: 160 km/h
• Operating Temperature: -40 °C to +60 °C
• Antenna Connection: TwistPort™ - Quick Locking Waveguide Port
• Antenna Type: Parabolic Dish
