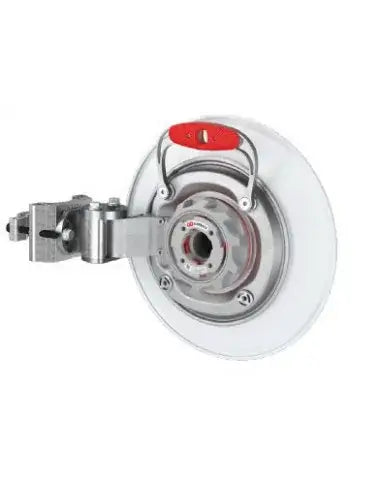

RFelements UltraDish TP 21

The RFelements UltraDish TP 21 is a high-performance parabolic dish antenna designed for subscriber module applications. It features minimized side-lobes, a wide frequency bandwidth, and stable gain in both polarizations, ensuring dependable performance in various conditions. Its lightweight aluminum reflector and proprietary TwistPort connector facilitate easy installation and maintenance, making it an ideal choice for wireless internet service providers (WISPs).

Features

• Minimized Side-Lobes: Reduces interference and enhances signal quality.
• Wide Frequency Bandwidth: Operates effectively across a broad range of frequencies (5180 - 6775 MHz).
• Stable Gain: Achieves a gain of 21.2 dBi, providing strong and reliable connectivity.
• Lightweight Aluminum Reflector: Ensures easy handling and installation without compromising durability.
• TwistPort Connector: Enables quick and intuitive radio connections, simplifying maintenance.
• Robust Mounting Solution: Designed for pole diameters between 40 mm and 80 mm, offering versatile deployment options.
• IP65 Rating: Provides protection against dust and water, ensuring reliability in outdoor environments.
• Wind Survival: Capable of withstanding winds up to 160 km/h (100 mi/h), ensuring stable performance under harsh conditions.

Specifications

• Dimensions: 465 x 345 x 263 mm
• Weight: 2.5 kg per unit
• Antenna Type: Parabolic Dish
• Gain: 21.2 dBi
• Frequency Range: 5180 - 6775 MHz
• Beam Width: H 10° / V 9° at -3 dB; H 14° / V 13° at -6 dB
• Front-to-Back Ratio: Minimum 28 dB
• Wind Survival: 160 km/h
• Operating Temperature: -40 °C to +60 °C (-40°F to +140°F)
