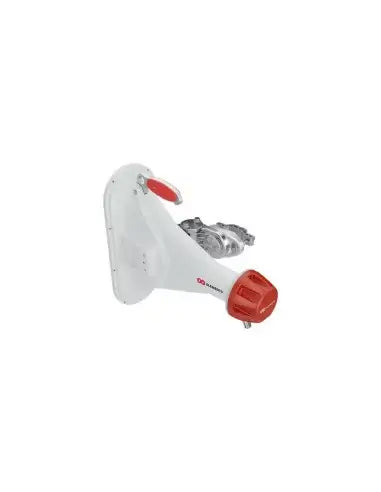

RF Elements CLASS 90° Asymmetrical Horn Antenna

The RF Elements CLASS 90° Asymmetrical Horn Antenna is engineered to enhance wireless network performance with its unique asymmetrical beam shape, providing exceptional noise rejection and high gain. Ideal for high-density access point clusters, this antenna ensures stable link performance and improved coverage planning.

Features

• Unique Asymmetrical Beam: Offers a 90° wide azimuth and 25° elevation beam for optimized coverage.
• High Gain: Delivers 16 dBi gain, significantly improving signal strength and network performance.
• Excellent Noise Rejection: The design suppresses side lobes, enhancing overall noise immunity.
• Durable Construction: Built from UV resistant ABS plastic, polycarbonate, and aluminum for longevity in various weather conditions.
• Innovative Mounting System: Simplifies installation with a reversible pole bracket and easy adjustment.
• Wide Frequency Range: Operates efficiently across 5180 - 6000 MHz with excellent VSWR performance.
• Dual Linear Polarization: Features balanced horizontal and vertical beam patterns for stable link performance.

Specifications

• Frequency Range: 5180 - 6000 MHz
• Gain: 16 dBi
• Azimuth Beam Width: -3 dB H 60° / V 60°, -6 dB H 90° / V 90°
• Elevation Beam Width: -3 dB H 16° / V 16°, -6 dB H 25° / V 25°
• Front-to-Back Ratio: 30 dB
• VSWR: Typical 1.5
• Impedance: 50 Ohm
• Environmental Rating: IP55
• Pole Mounting Diameter: 40-80 mm (1.5-3.1 inch)
• Temperature Range: -35°C to +60°C (-31°F to +140°F)
• Wind Survival: 160 km/h
• Weight: 5.3 kg
• Dimensions: 510 × 420 × 175 mm
