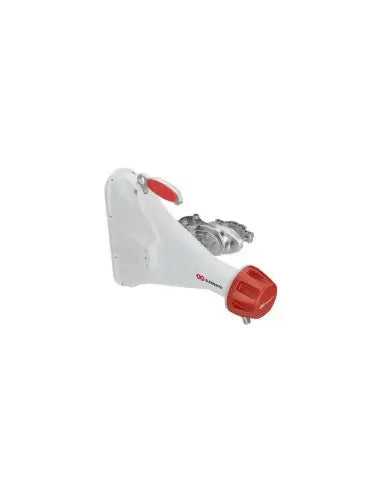

RF Elements CLASS 60° Asymmetrical Horn Antenna
RF Elements CLASS 60° Asymmetrical Horn Antenna
SKU:RF-AH-CC60
Out of stock
Regular price
R 10,828.00
Regular price
Sale price
R 10,828.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Share
The RF Elements CLASS 60° Asymmetrical Horn Antenna is engineered for superior wireless performance. With a unique asymmetrical beam pattern, it enhances network scalability and throughput while effectively rejecting noise, making it ideal for high-density access point deployments.
Features
- Unique Asymmetrical Beam: Provides a wide azimuth and narrow elevation pattern, enhancing coverage in challenging environments.
- High Gain Performance: Offers 17 dBi gain, significantly improving signal strength and range.
- Noise Rejection: Designed to minimize side lobes, ensuring high noise immunity and stable link performance.
- Durable Construction: Made from UV resistant ABS plastic and aluminum, built to withstand harsh weather conditions.
- Flexible Mounting: Innovative mounting system allows for easy installation and adjustment with minimal tools.
- Wide Frequency Range: Operates between 5180 - 6000 MHz, catering to various wireless applications.
Specifications
- Frequency Range: 5180 - 6000 MHz
- Gain: 17 dBi
- Azimuth Beam Width: 60°
- Elevation Beam Width: 25°
- Connector Type: 2x N Female Bulkhead Connector
- Weight: 4.6 kg
- Dimensions: 540 mm x 365 mm x 160 mm
- Environmental Rating: IP55
- Wind Survival: 160 km/h
- Temperature Range: -35°C to +60°C
