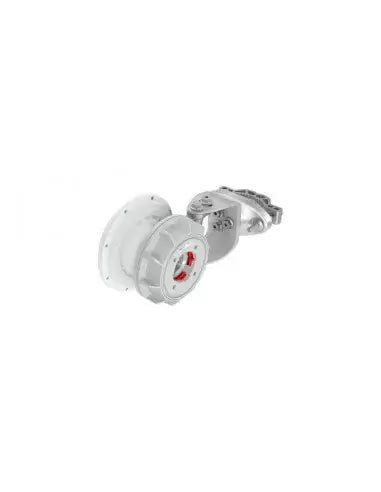

RF Elements 90° Symmetrical Horn Antenna - GEN2

The RF Elements 90° Symmetrical Horn Antenna - GEN2 is designed for fast, sustainable wireless applications. It features a unique TwistPort connector for easy installation and superior noise rejection, making it ideal for high-density network environments.

Features

• 90-Degree Symmetrical Beam: Provides a focused signal without side lobes, ensuring efficient use of spectrum and reduced interference.
• Wide Frequency Range: Operates within the 5180 – 6400 MHz range, accommodating various wireless applications.
• High Gain: Offers a gain of 9.6 dBi, enhancing signal strength and coverage.
• TwistPort Connector: A quick-locking waveguide port that allows for easy, lossless connections to compatible radios.
• Durable Construction: Made from UV-resistant ABS plastic, polycarbonate, and aluminum, designed to withstand harsh environmental conditions.
• IP55 Rating: Provides protection against dust and water, ensuring reliability in outdoor installations.
• Easy Installation: Pre-assembled design and simple mounting process requiring only one tool.

Specifications

• Frequency Range: 5180 - 6400 MHz
• Gain: 9.6 dBi
• Azimuth Beam Width (3 dB): 67°
• Elevation Beam Width (3 dB): 67°
• Front-to-Back Ratio: 28 dB
• Mounting Diameter: 30-80 mm
• Temperature Range: -30°C to +55°C
• Wind Survival: 160 km/h
• Weight: 1.4 kg
