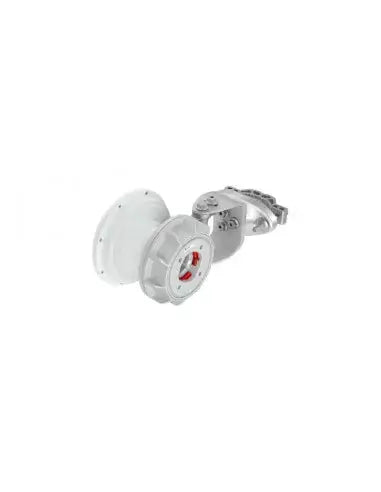

RF Elements 60° Symmetrical Horn Antenna - GEN2

The RF Elements 60° Symmetrical Horn Antenna - GEN2 is engineered for superior wireless performance, featuring a unique symmetrical beam pattern that minimizes noise interference and maximizes signal clarity. With its innovative TwistPort™ connector, this antenna provides easy, lossless connections, making it ideal for high-density wireless networks.

Features

• Symmetrical Beam Pattern: Ensures no side lobes, effectively focusing energy into one main signal beam.
• Excellent Noise Rejection: Reduces the amount of noise collected, resulting in a cleaner signal.
• Wideband Performance: Operates across a frequency range of 5180 - 6400 MHz.
• High Gain: Offers a gain of 13.2 dBi, enhancing overall network performance.
• TwistPort™ Connector: Provides a quick-locking, virtually lossless connection, simplifying installation.
• Robust Design: Constructed with UV-resistant materials and built to withstand harsh environmental conditions.
• Scalability: Allows for high density of sectors with excellent co-location characteristics.

Specifications

• Frequency Range: 5180 - 6400 MHz
• Gain: 13.2 dBi
• Azimuth Beam Width -3 dB: 41°
• Elevation Beam Width -3 dB: 41°
• Front-to-Back Ratio: 32 dB
• Antenna Connection: TwistPort™ - Quick Locking Waveguide Port
• Environmental Rating: IP55
• Temperature Range: -30°C to +55°C
• Wind Survival: 160 km/h
• Weight: 1.4 kg
• Dimensions: 305 x 239 x 183 mm
