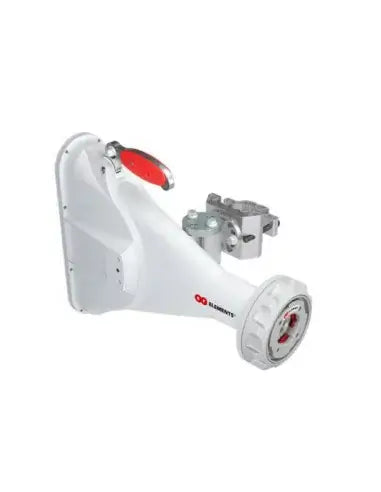

RF Elements 60° Asymmetrical Horn Antenna - High Gain
RF Elements 60° Asymmetrical Horn Antenna - High Gain
SKU:RF-PROMO1
Out of stock
Regular price
R 3,726.00
Regular price
Sale price
R 3,726.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Share
The RF Elements 60° Asymmetrical Horn Antenna is engineered for optimal performance in point-to-multipoint (PtMP) sectors, providing high gain and exceptional noise rejection. Its innovative design supports a specific beam shape while enhancing network scalability and throughput.
Features
- High Gain: Offers a gain of 17 dBi, ensuring strong signal strength.
- Asymmetrical Beam Pattern: Delivers a wide azimuth beam width of 60° and a narrow elevation beam width of 25° for precise coverage.
- TwistPort Connector: Features a quick-locking TwistPort connector for easy attachment to various radios.
- Durable Construction: Made with UV resistant ABS plastic, polycarbonate, and stainless steel for longevity in harsh environments.
- IP55 Rating: Provides protection against dust and water, ensuring reliable operation in outdoor conditions.
- Mechanical Adjustment: Allows for ±20° elevation and azimuth adjustments for fine-tuning installations.
Specifications
- Frequency Range: 5180 - 6000 MHz
- Azimuth Beam Width (3 dB): H 45° / V 42°
- Elevation Beam Width (3 dB): H 17° / V 16°
- Front-to-Back Ratio: 27 dB
- Pole Mounting Diameter: 40-80 mm (1.5-3.1 inches)
- Temperature Range: -35°C to +60°C (-31°F to +140°F)
- Wind Survival: 160 km/h
- Weight: 4.7 kg
- Package Dimensions: 540 mm x 365 mm x 160 mm
