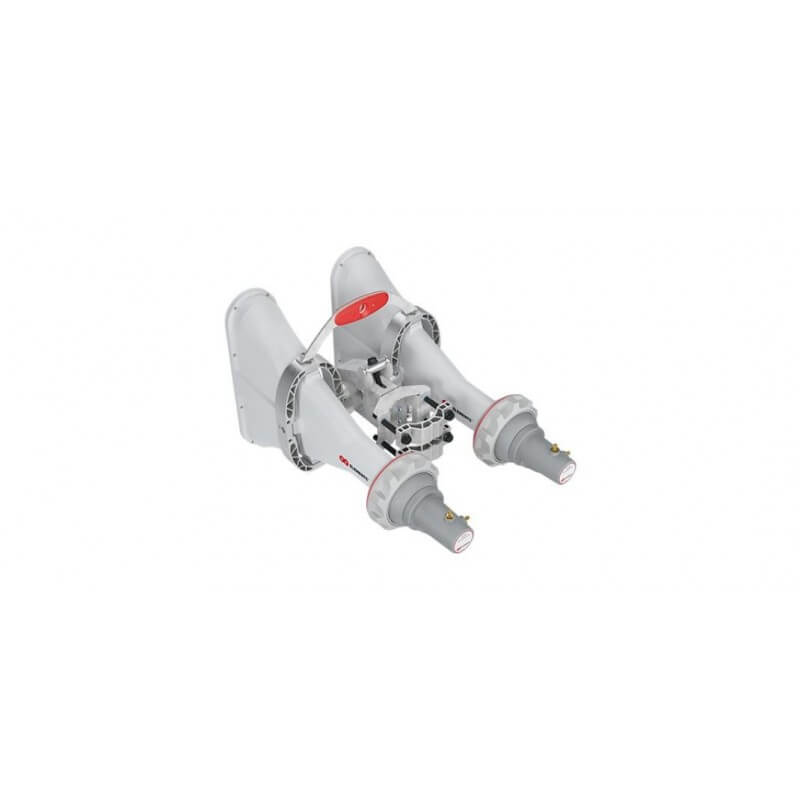

RF Elements 4x4 Wideband 90° Asymmetrical Horn Antenna

The RF Elements 4x4 Wideband 90° Asymmetrical Horn Antenna is designed for superior performance in wireless networking, providing excellent noise rejection and scalability for WISP applications. This antenna features a unique asymmetrical beam shape that enhances throughput and minimizes interference, making it ideal for high-density environments.

Features

• Asymmetrical Beam Shape: Provides a specific beam shape, enhancing antenna gain and noise rejection.
• High Performance: Achieves a gain of 16 dBi, ensuring robust signal strength across a wide frequency range.
• Integrated Mount: Designed for easy installation with Cambium Networks and Mimosa radios.
• Durable Construction: Built with UV-resistant ABS plastic, polycarbonate, HDPE, and die-cast aluminum for long-lasting performance in harsh weather conditions.
• Wide Frequency Range: Operates effectively between 5180 - 6000 MHz, suitable for various applications.
• Award-Winning Design: Recognized as WISPA Product of the Year for three consecutive years (2019-2021) for its innovative technology.

Specifications

• Radio Connection: 4x RP-SMA Female Connector
• Pigtails: 4x RP-SMA Male Connector, 750mm (29.5 inch)
• Environmental Rating: IP55
• Temperature Range: -35°C to +60°C (-31°F to +140°F)
• Wind Survival: 160 km/h
• Effective Projected Area: 1309 cm² (Front), 754 cm² (Side)
• Weight: 10.6 kg - single unit
• Package Dimensions: 485 mm x 420 mm x 396 mm
