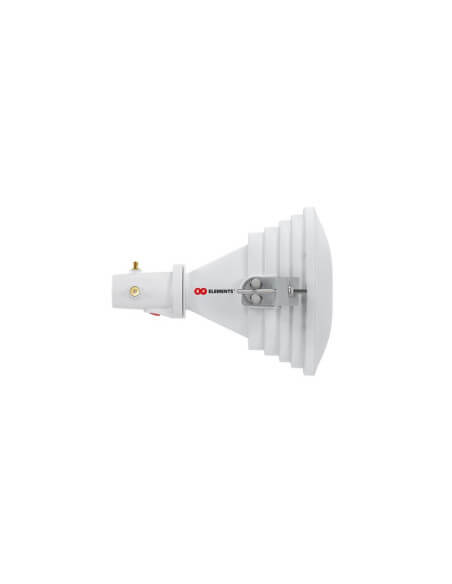

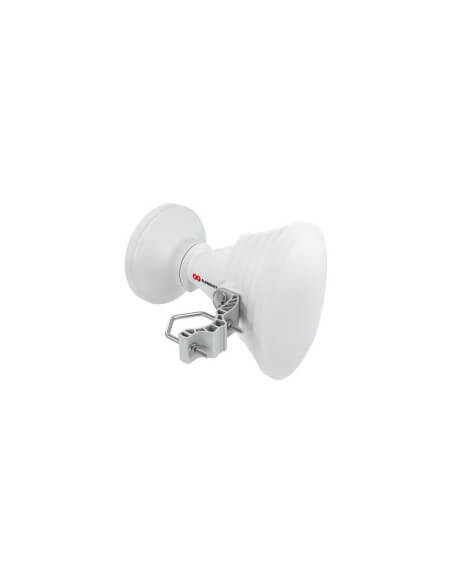

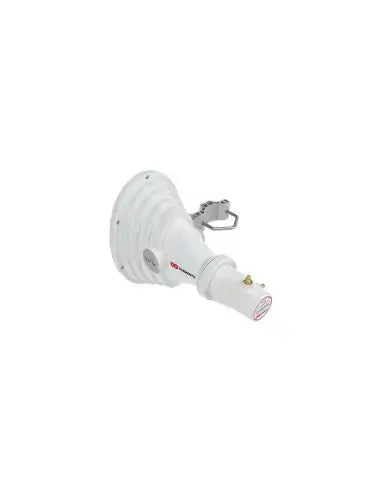

RF Elements 45° StarterHorn™ Antenna - SMA

The RF Elements 45° StarterHorn™ Antenna is designed for high-density wireless environments, offering exceptional noise rejection and improved throughput through its unique asymmetrical radiation pattern. Ideal for WISPs looking to enhance their network performance.

Features

• Asymmetrical Radiation Pattern: Provides an elliptical cross-section with a 45° azimuth and 30° elevation beam width for targeted coverage.
• Zero Side Lobes: Ensures efficient use of spectrum by eliminating interference commonly caused by side lobes in traditional antennas.
• High Beam Efficiency: Achieves a beam efficiency of 90%, significantly reducing interference and enhancing throughput compared to typical patch array antennas.
• Wide Frequency Range: Maintains stable performance across U-NII-1 to U-NII-5 frequency bands, making it reliable for various channel changes.
• Flexible Connectivity: Features both waveguide and RP-SMA interfaces for compatibility with a wide range of radios, including Ubiquiti's IsoStation and PrismStation.
• Compact and Durable Design: Constructed from lightweight aluminum, ensuring easy installation and longevity.

Specifications

• Dimensions: 236 x 223 x 291 mm
• Weight: 0.9 kg
• Azimuth Beam Width: -6 dB - H 44° / V 45°
• Elevation Beam Width: -6 dB - H 30° / V 29°
• Beam Efficiency: 90%
• Enviromental: IP55
• Flame Rating: UL 94 HB
• Temperature: -30°C to +55°C
• Wind Survival: 160 km/h
• Frequency Range: 5150 - 5950 MHz
• Gain: 17 dBi
